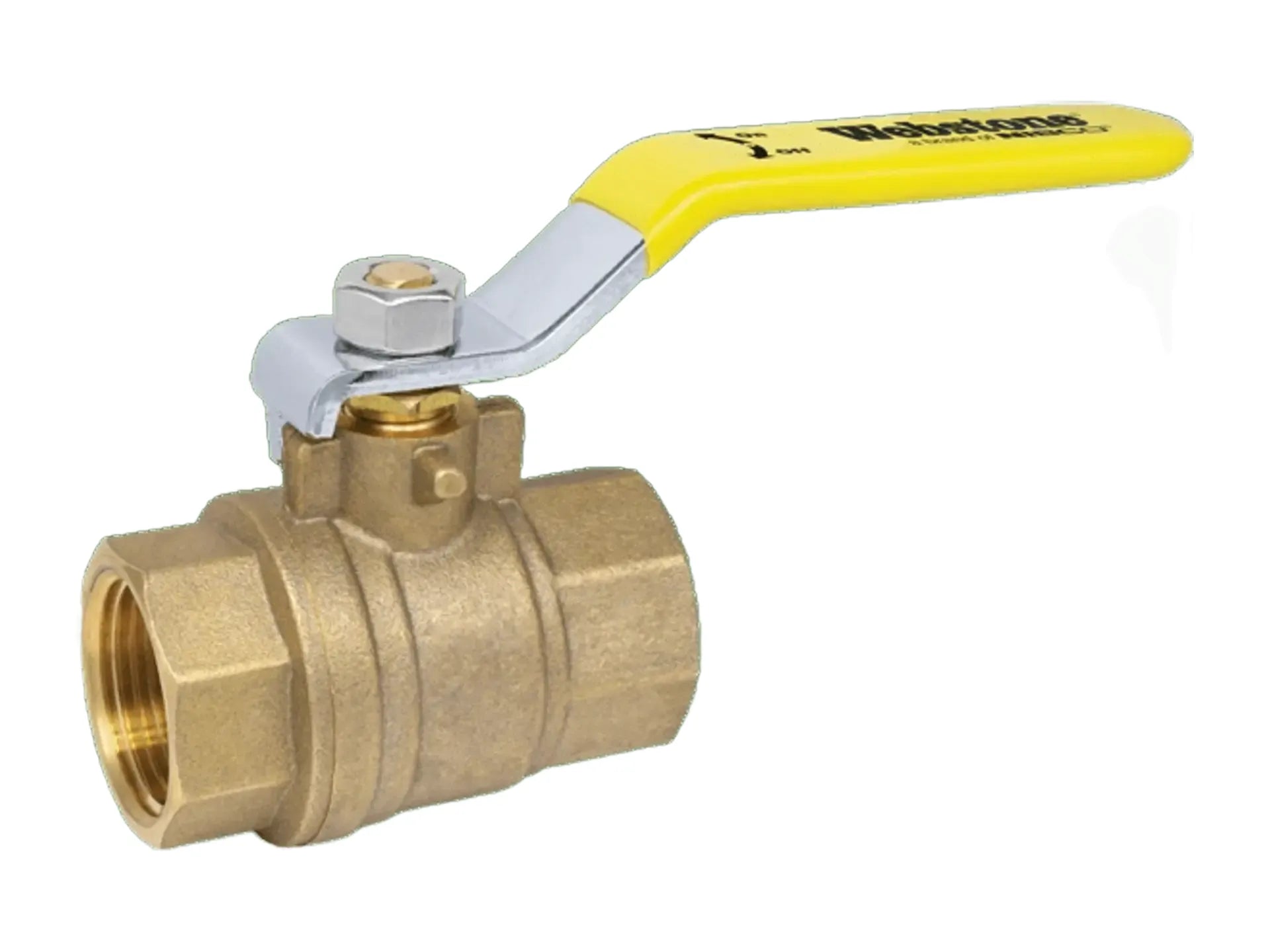

Webstone H-40702 Ball Valve Traditional 1/2 inches 600 PSI CWP Max FIP

Product Description

The WEBSTONE H-40702 Ball Valve Traditional is a 1/2" full port forged brass valve, model THD-X070, designed for precise flow control in heating or other non-potable plumbing applications. It features an adjustable packing gland and is suitable for use with water, oil, and glycol mixes. This FPT connection quarter-turn valve operates at a maximum pressure of 600 PSI CWP Max FIP and a maximum temperature of 200 F.

• Controls flow with a quarter-turn lever handle.
• Features an adjustable packing gland for reliable operation.
• Certified to NSF/ANSI 61 & 372, ANSI Z21.15, NSF/ANSI 61-8, NSF/ANSI 14, and CSA 9.1.

Product Highlights

This Webstone H-40702 forged brass ball valve provides efficient flow control for plumbing and heating systems.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-40702

Technical Specifications

• MPN: H-40702
• Type: Ball Valve Traditional
• Size: 1/2"
• Pressure Rating: 600 PSI CWP Max FIP
• Manufacturer: Webstone
• Model: THD-X070
• Brand: Webstone
• Application: Heating or Other Non-Potable Plumbing
• Connection Type: FPT
• Material: Forged Brass
• Max Temperature Rating: 200 F
