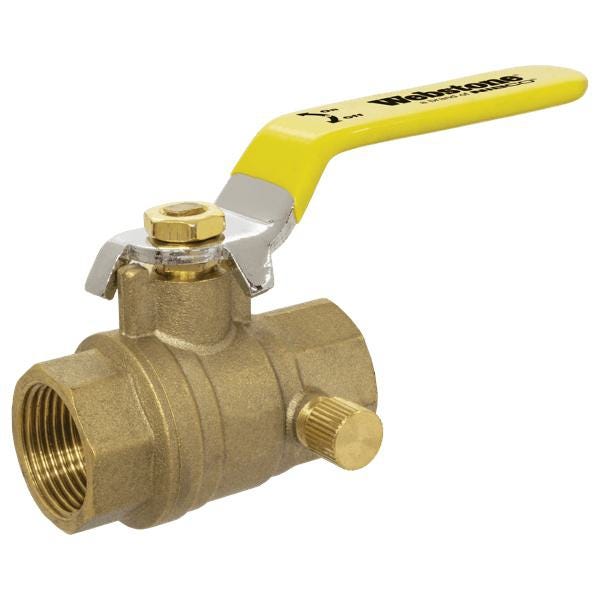

Webstone H-40623W Ball Valve with Bleeder 3/4 in IPS

Product Description

The Webstone H-40623W ball valve manages fluid flow via a quarter-turn lever handle. It includes a bleeder drain for air or water purging, enhancing maintenance and testing capabilities. This product is constructed from forged brass and includes a reversible handle and adjustable packing gland. It is suitable for water, oil, and glycol mixes in both residential and commercial plumbing and heating systems.

• Controls flow with a quarter-turn lever handle
• Features a bleeder drain for purging air or water
• Adjustable packing gland included

Product Highlights

This three-quarter inch lead-free full-port brass ball valve is designed for high flow efficiency and professional use. Ideal for potable water, HVAC, and plumbing systems.

Product Information

Standard Information

• Brand: Webstone
• Manufacturer: Webstone

Technical Specifications

• IPS: 3/4 in.
• Material: Lead Free Brass
• Handle: Zinc-plated steel, vinyl-coated
• Part Number: H-40623W
• Series: H-X062
• Type of Valve: Ball
• Nominal Pipe Size: 3/4 in x 3/4 in
• End Connection Type: FIP
• Pressure Rating: 600 PSI WOG / 150 PSI WSP
• Temperature Range: Up to 100°F continuous
• Connection Type: FNPT x FNPT (IPS thread)
• Body Material: Brass
• Warranty: Limited Lifetime
• Media: Water, Oil, Gas
• Port Type: Full
• Trim Material: Brass Stem
