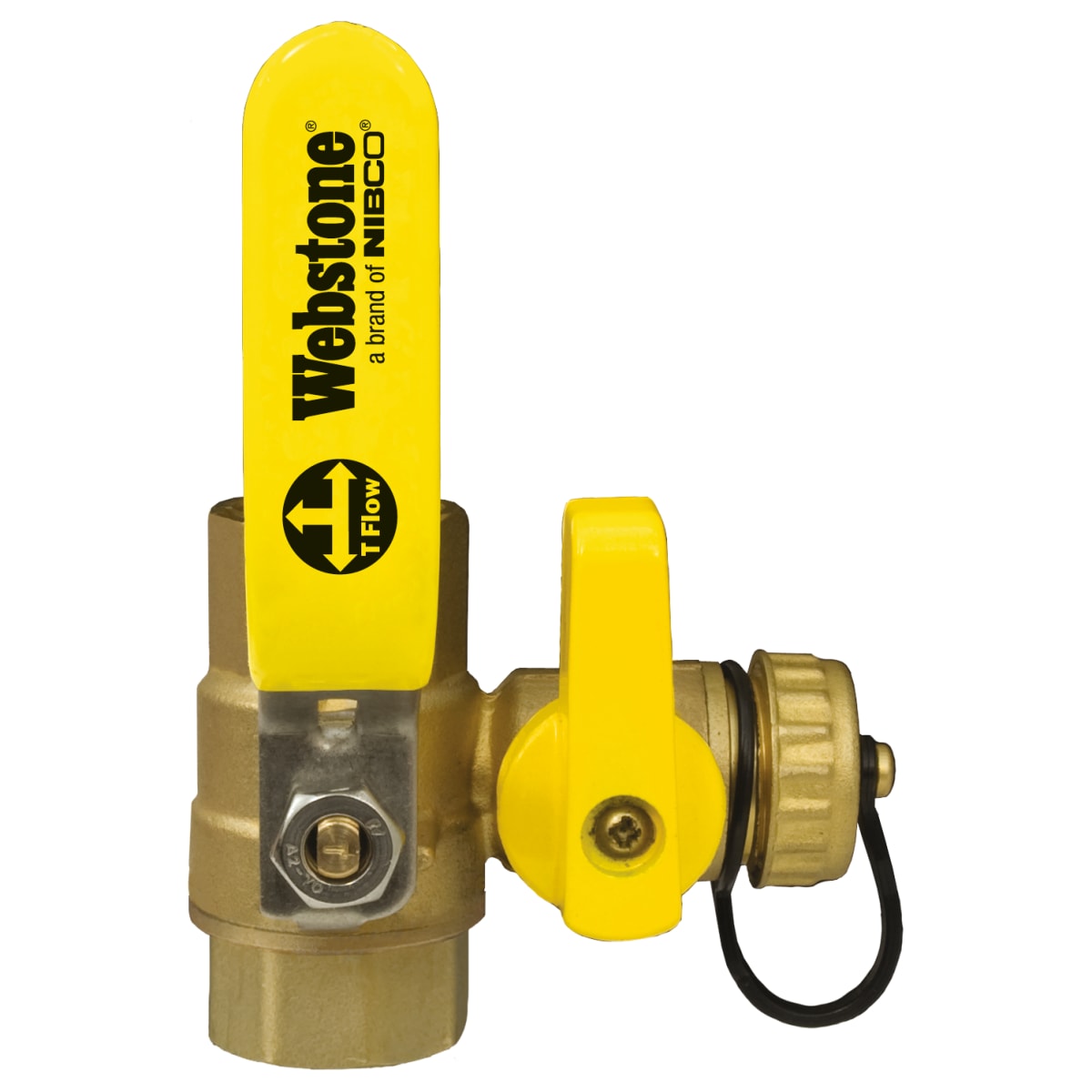

Webstone H-40615 Non-Potable Pro-Pal Ball Drain - 1-1/4 FIP

Product Description

The Webstone H-40615 is a 1-1/4 inch FIP Non-Potable Pro-Pal Ball Drain valve. This valve is designed for easy installation and effective operation in plumbing and heating systems. It features a full-port design for maximum flow and a forged brass body to ensure longevity.

• Reversible handle enhances flexibility.
• Eliminates the need for multiple components.
• Certified to NSF/ANSI standards for safety.

Product Highlights

The valve is engineered for draining applications while allowing for efficient control of water, oil, or glycol mixtures. It reduces installation time and helps prevent leaks.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-40615

Technical Specifications

• Material: Brass
• Application: Non-Potable
• Connection Size: 1-1/4 inches
• Connection Type: FIP x Hose
• Pressure Rating: 600 PSI CWP Max
• Temperature Rating Max: 350 F Max
• Inlet to Outlet Length: 3-1/2 inches
• Top to Inlet Center: 3 inches
