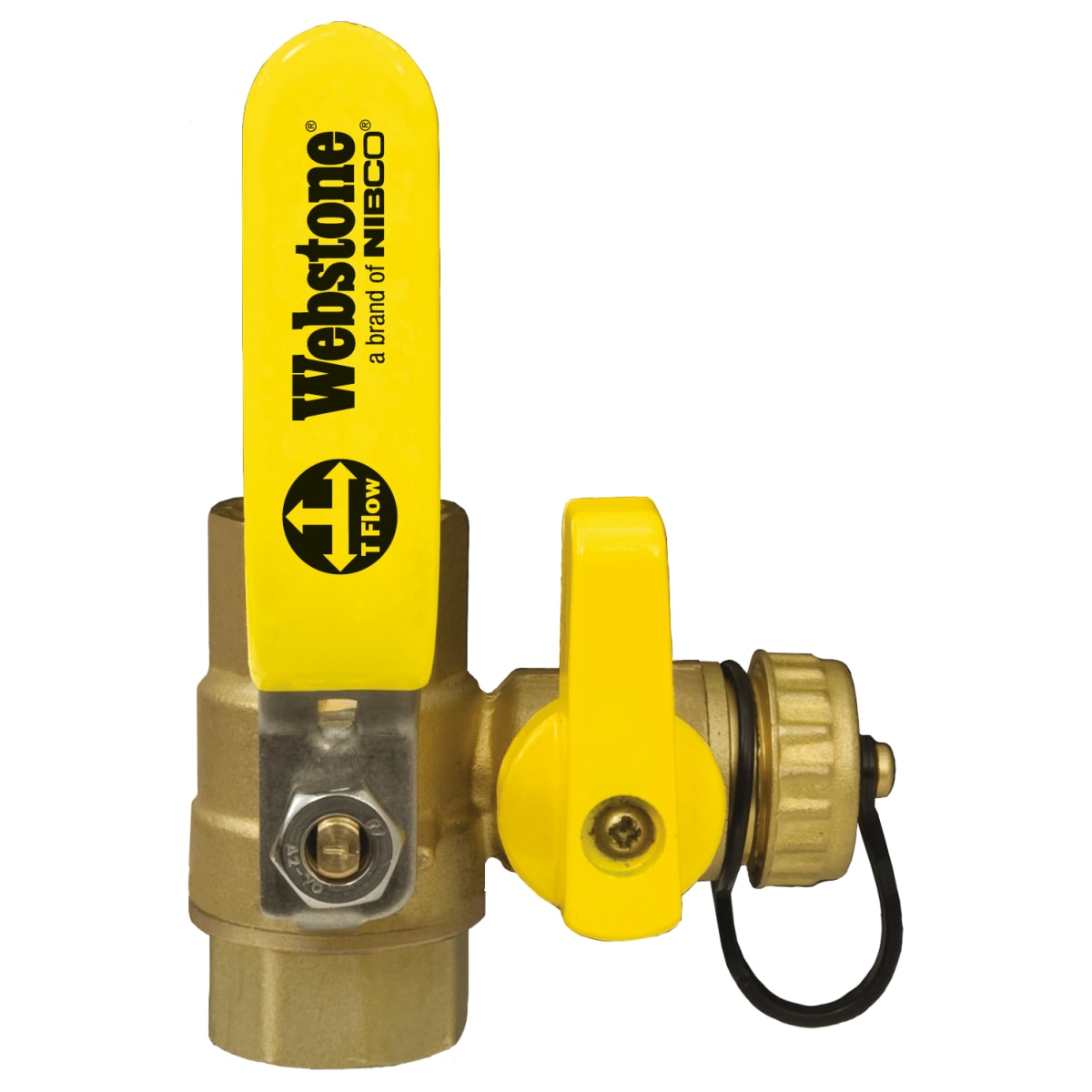

Webstone H-40614 1 FIP Non-Potable Pro-Pal Ball Drain, Full Port Forged Brass Ball Valve, w/ Hi-Flow Hose Drain, Reversible Handle, & Adjustable Packing Glands

Product Description

Webstone presents the H-40614, a non-potable ball drain valve designed for efficient water and fluid management. This forged brass ball valve offers a full port flow, which helps in reducing pressure loss in fluid systems. It features a high-flow hose drain, a reversible handle for flexibility, and adjustable packing glands to ensure reliable performance in various plumbing applications.

• Eliminates assembly needed to isolate and drain any portion of a piped system.
• Reversible handle for added versatility.
• Exclusive adjustable flow path allows for draining from either side of the ball.

Product Highlights

This valve not only streamlines installation but also saves time and space, making it suitable for residential and commercial plumbing systems.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-40614

Technical Specifications

• Material: Brass
• Connection Type: FIP x Hose
• Nominal Size: 1 inch
• Pressure Rating: 600 PSI CWP Max
• Temperature Rating Max: 350 F Max
• Inlet to Outlet Length: 3.25 inches
• Top to Inlet Center: 2.63 inches
• Orifice Size: 0.5 inches
