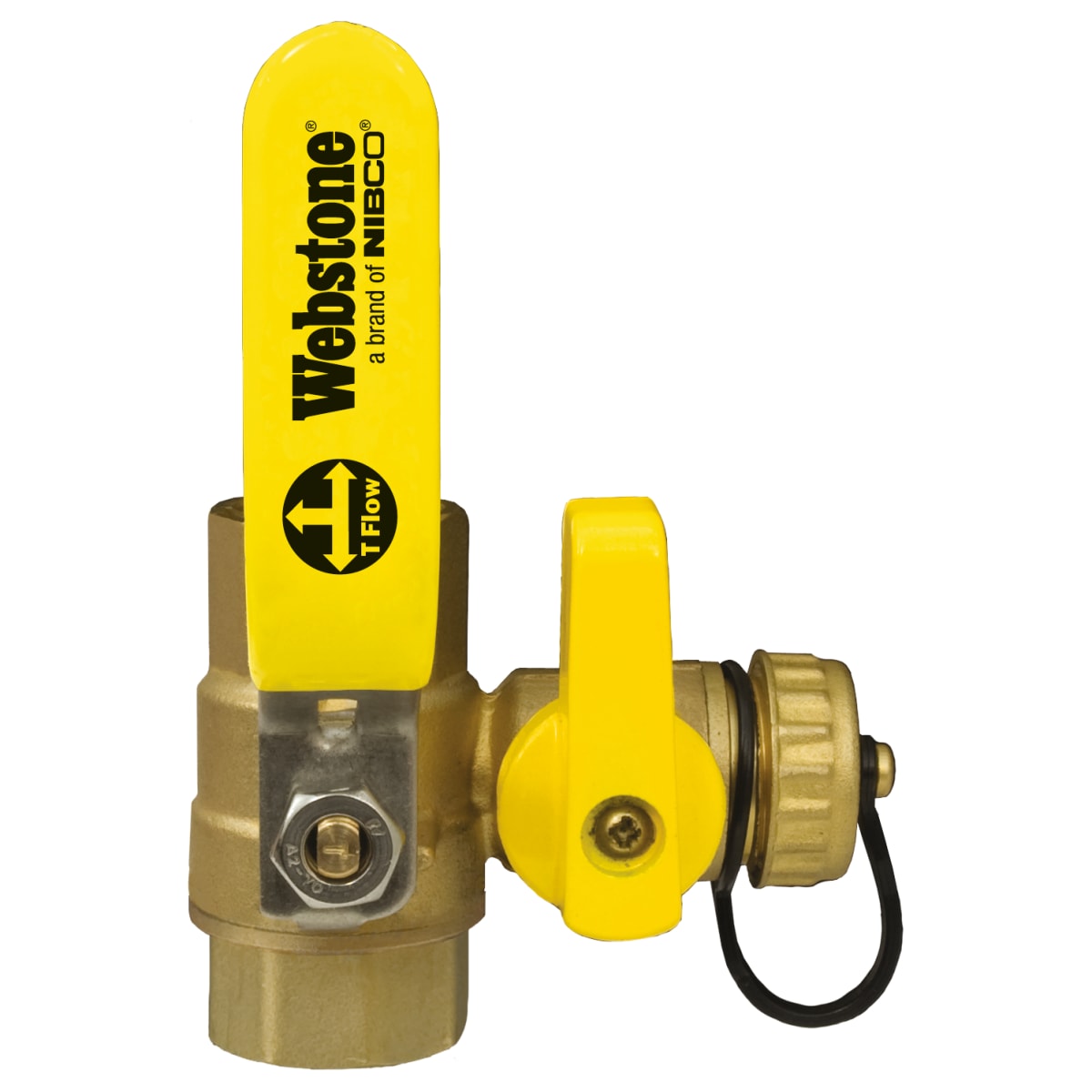

Webstone H-40613 3/4 FIP Non-Potable Pro-Pal Ball Drain Full Port Forged Brass Ball Valve

Product Description

The Webstone H-40613 is a 3/4 inch FIP non-potable Pro-Pal ball drain valve made from forged brass. This valve features a hi-flow hose drain and is designed to work efficiently with water, oil, and glycol mixtures in both residential and commercial plumbing systems. The Pro-Pal series integrates essential components into a single valve, promoting easier installation and functionality while reducing costs. This product meets the NSF/ANSI standards and is backed by a limited lifetime warranty.

• Eliminates assembly required to isolate and drain sections of a piped system.
• Reversible handle increases usability.
• Adjustable flow path allows draining from either side.

Product Highlights

This valve minimizes leak paths and assembly time, making it ideal for plumbing installations.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-40613

Technical Specifications

• Material: Brass
• Connection Size: 3/4 inch
• Connection Type: FIP x Hose
• Pressure Rating: 600 PSI CWP Max
• Temperature Rating Max: 350 F Max
• Dimensions: 8.9 inches L x 4.7 inches W x 5 inches H
• Inlet to Outlet Length: 2.63 inches
• Top to Inlet Center: 2.06 inches
