Webstone H-40567W 2 inches FIP forged DZR brass Y-strainer (20 mesh) w/ 1/2 inches plugged NPT port

Product Description

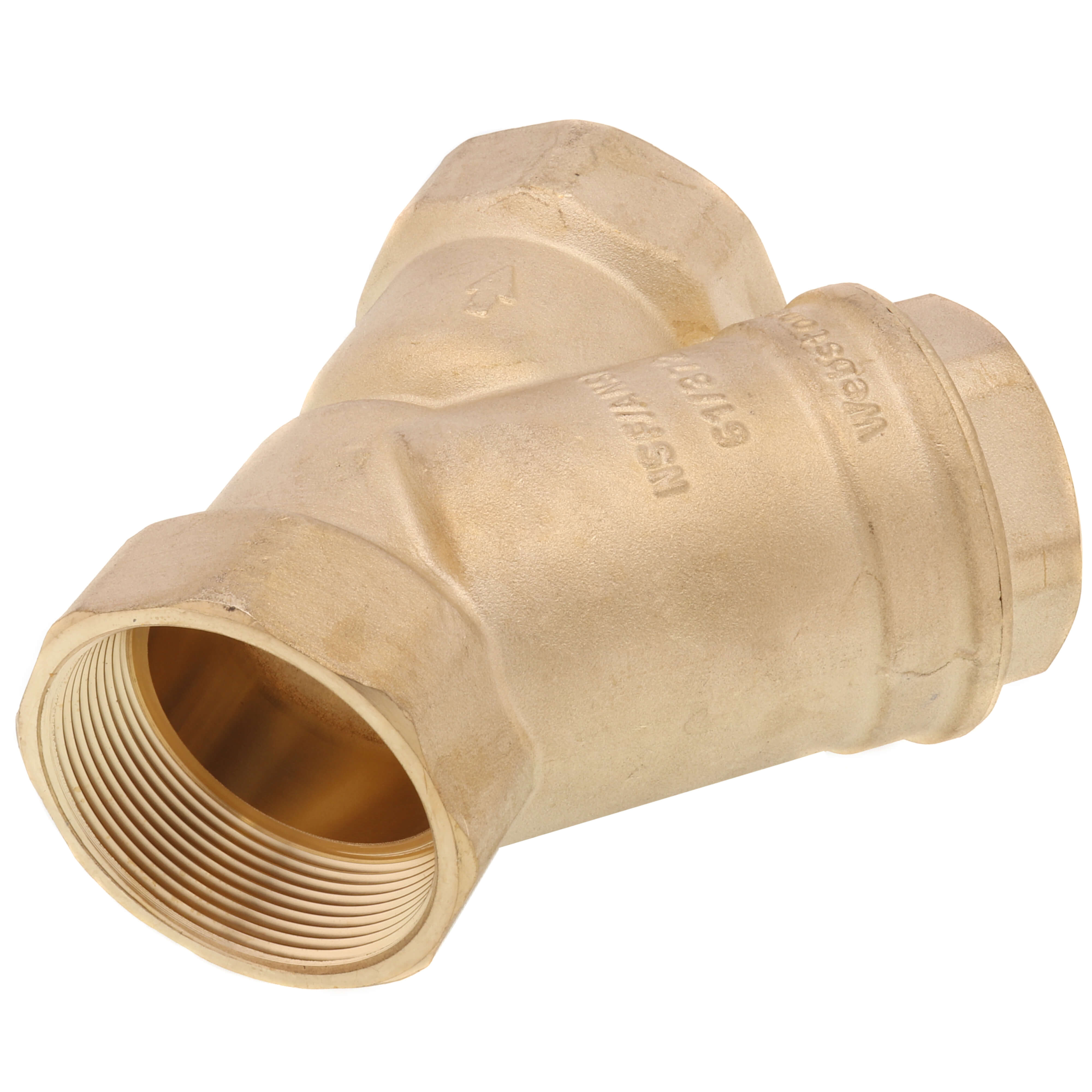

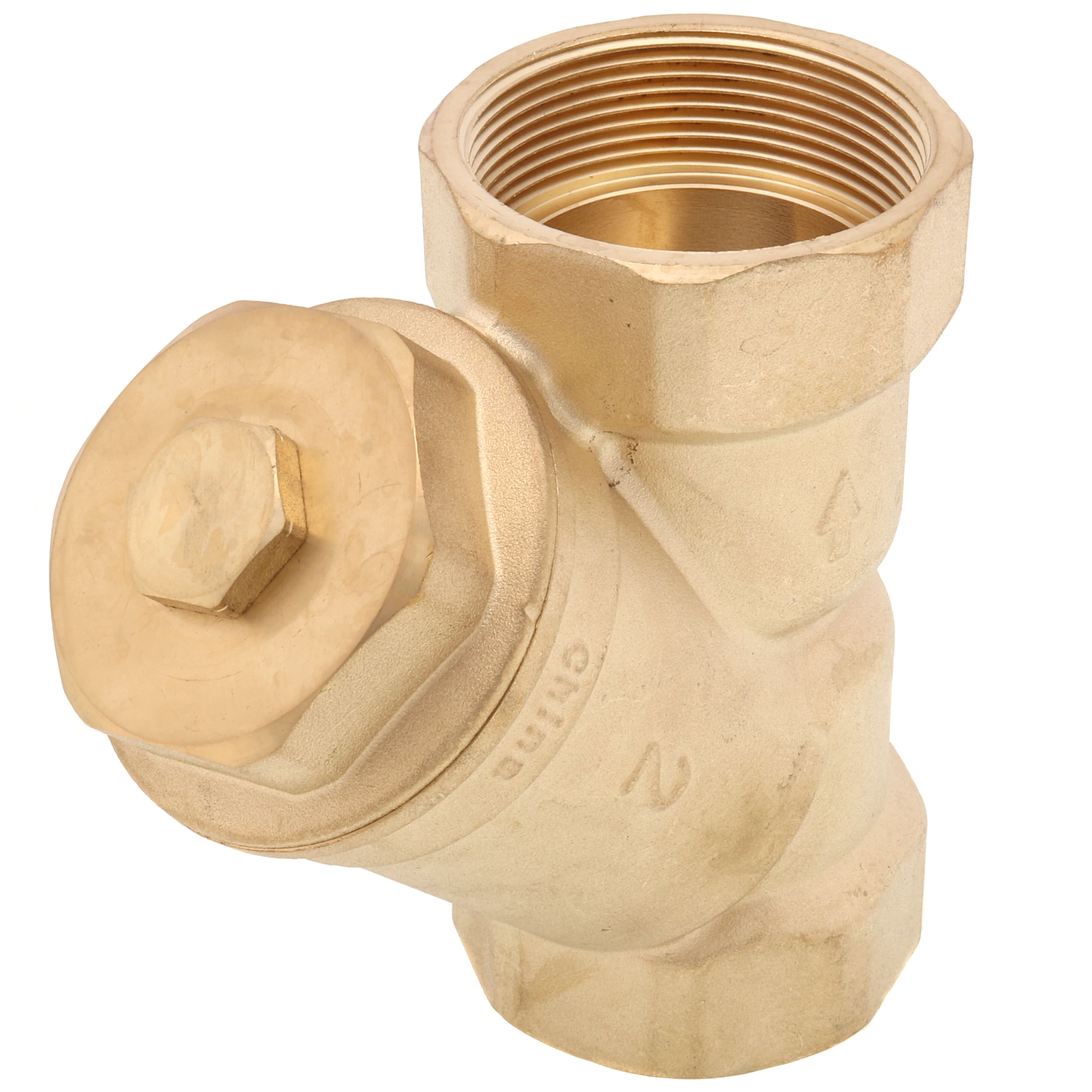

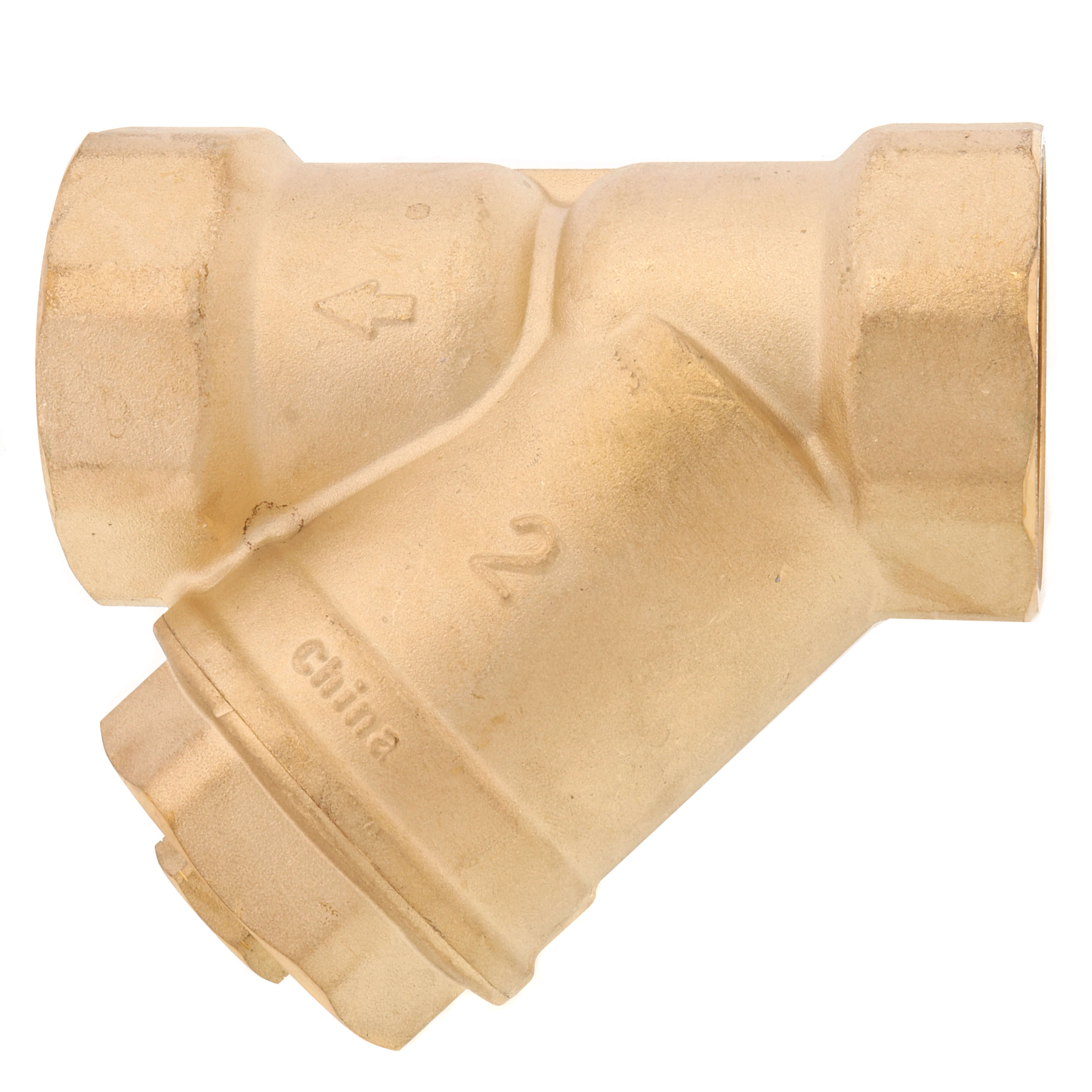

The WEBSTONE H-40567W is a 2" FIP forged DZR brass Y-strainer designed for efficient filtration in plumbing systems. This lead-free component features FNPT x FNPT threaded connections and a 20 mesh screen, ensuring removal of debris. It is certified to NSF/ANSI 61 & 372, suitable for potable water applications, and can withstand a maximum pressure of 250 PSI (CWP) and a maximum temperature of 200°F.

• Certified to NSF/ANSI 61 & 372 for safety and quality
• Features FNPT x FNPT threaded connections for secure installation
• Constructed from forged DZR Brass with a 20 mesh screen for effective filtration

Product Highlights

This lead-free 2" FIP forged DZR brass Y-strainer provides reliable debris filtration for plumbing systems, featuring a 1/2" plugged NPT port and robust construction.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-40567W

Technical Specifications

• Accessories: BRU200, 30378, H-40566W, BRE200, SCT200, 31322, BRN200-1200, BRN200-250
• Certifications: NSF/ANSI 61 & 372
• Connection Method: Threaded
• Connection Type: FNPT x FNPT
• Lead Free: Yes
• Material: DZR Brass
• Max Pressure: 250 PSI (CWP)
• Max Temperature: 200°F
• Size: 2"
