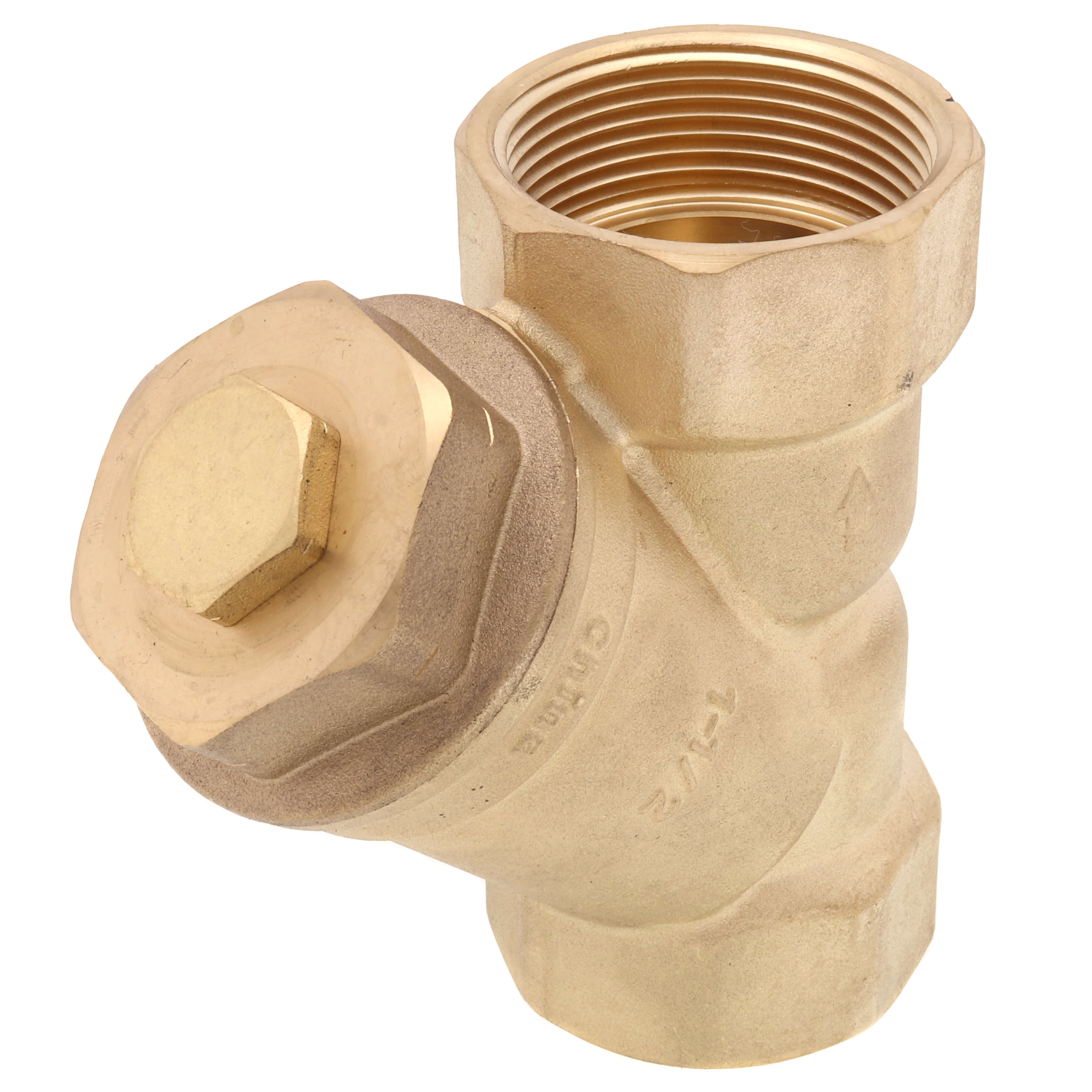

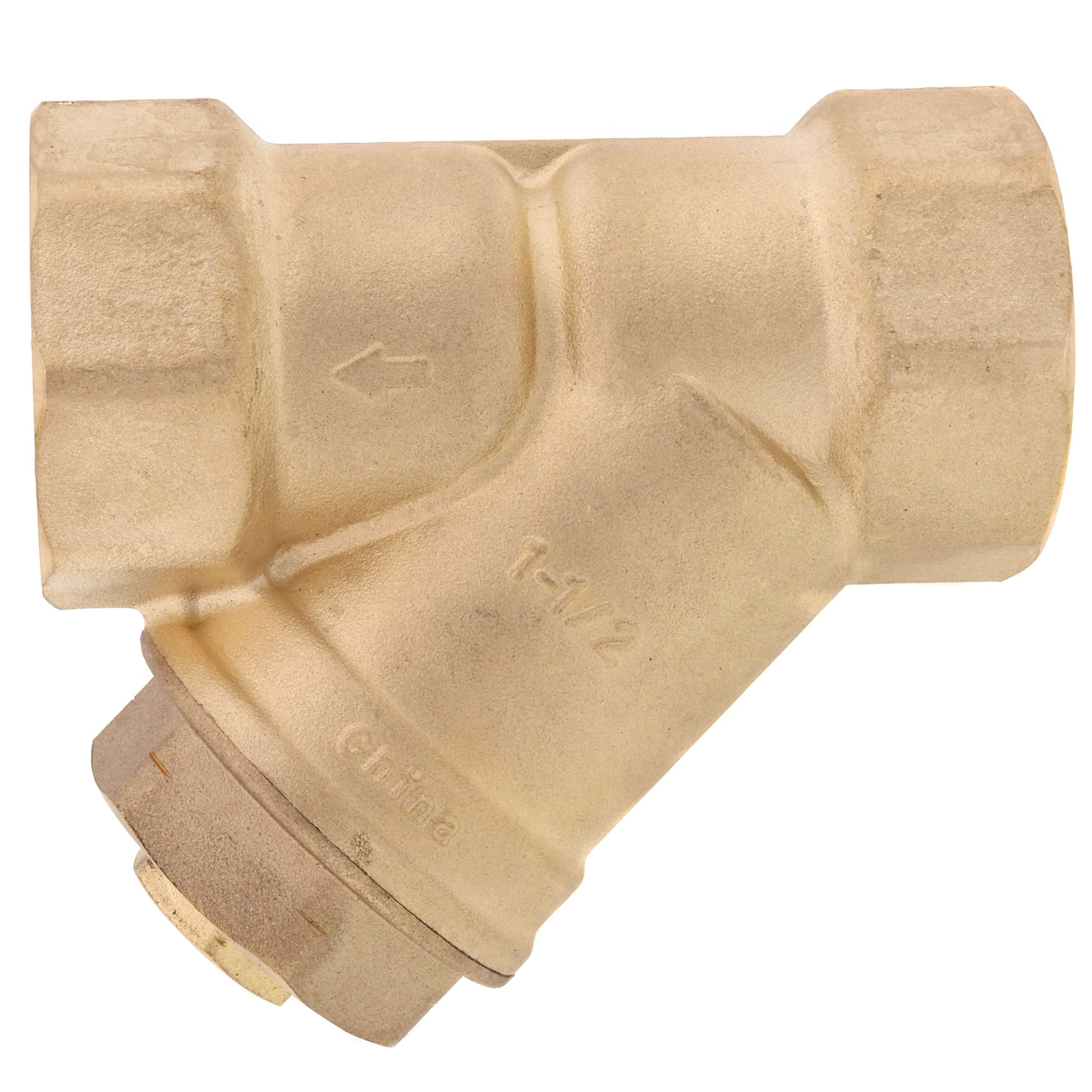

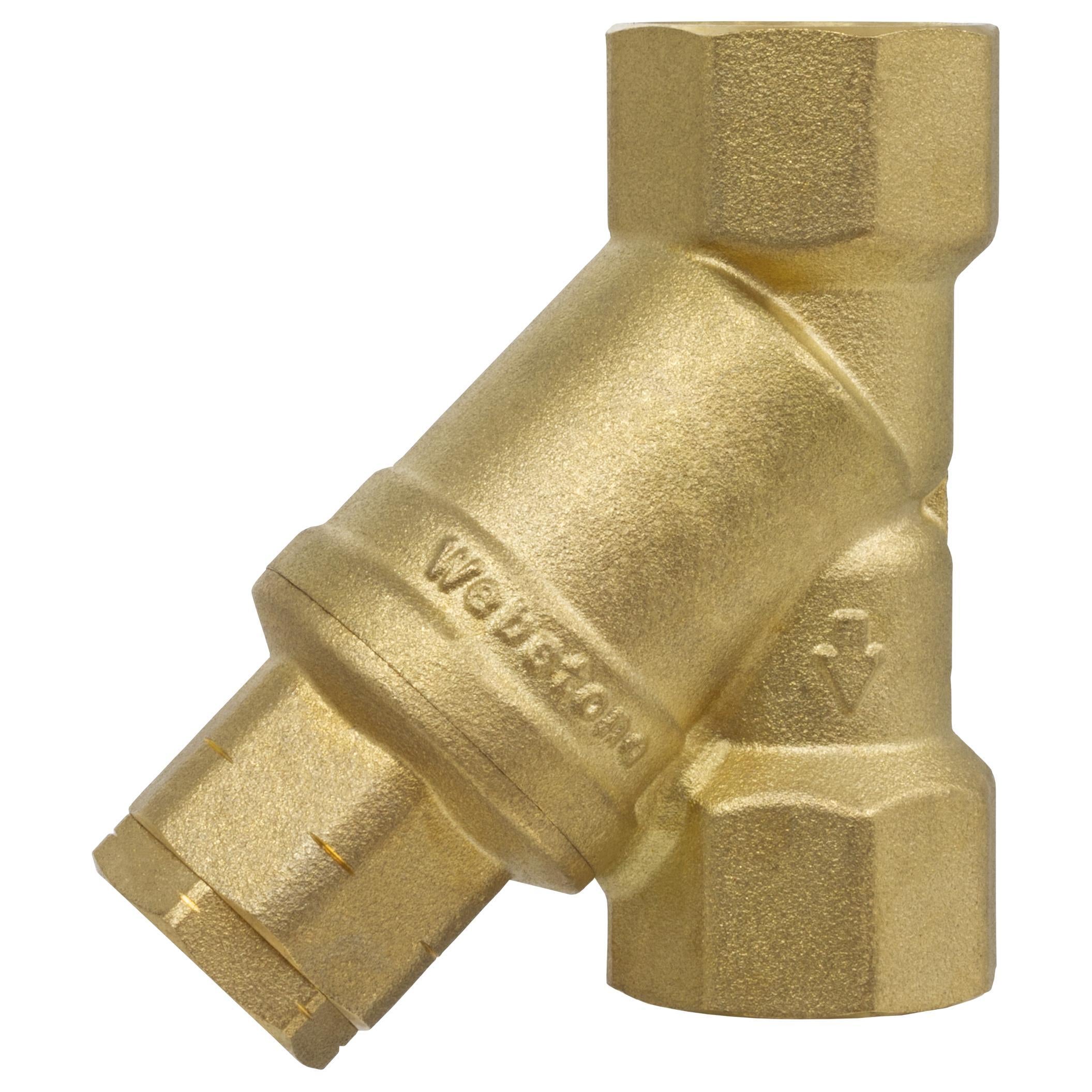

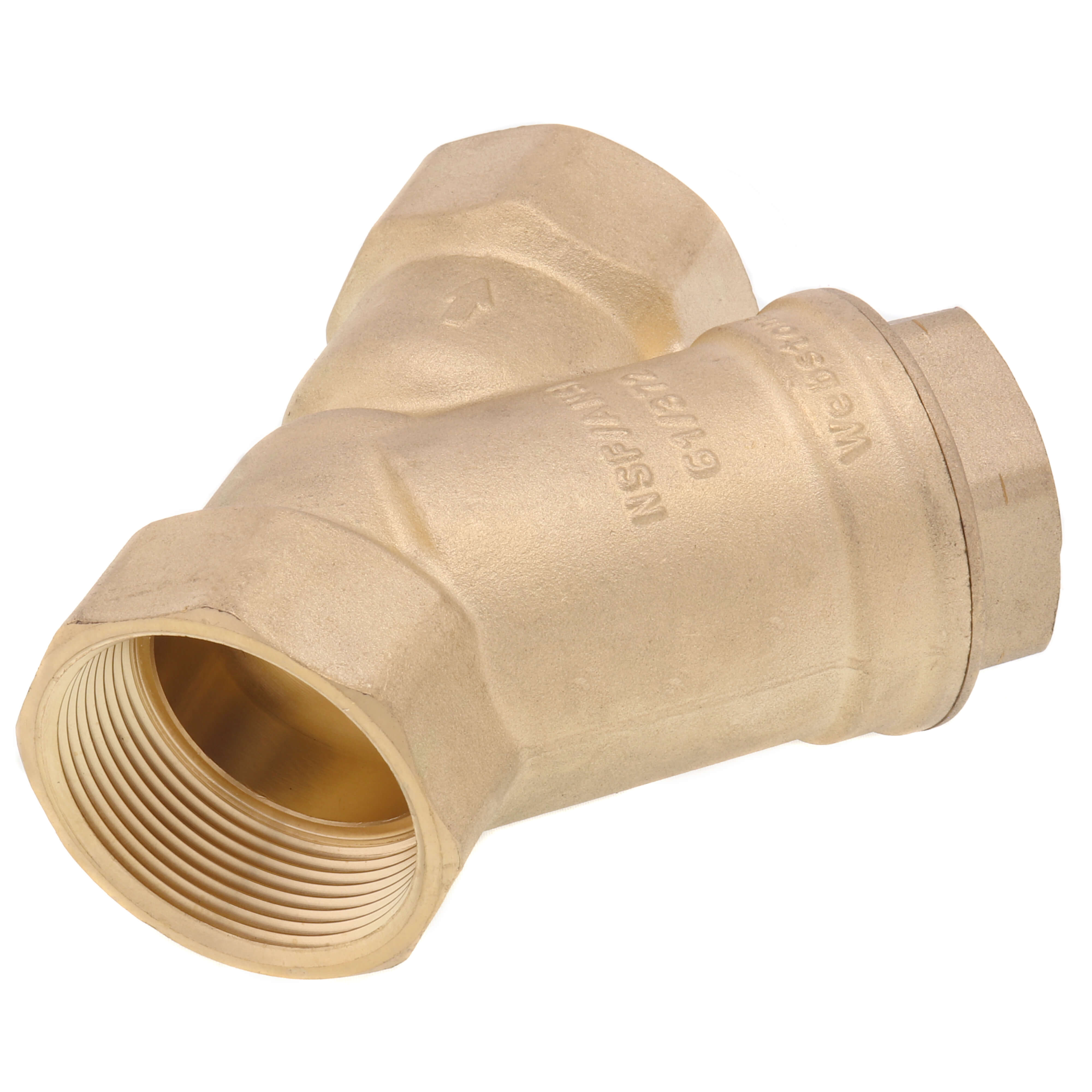

Webstone H-40566W Y-Strainer 1-1/2 inches FIP Forged DZR Brass (20 MESH) with 1/2 inches Plugged NPT Port 4056W

Product Description

The WEBSTONE H-40566W is a 1-1/2" FIP Forged DZR Brass Y-Strainer, designed to protect plumbing and heating systems from damaging debris. This lead-free strainer features a 20 mesh screen and a 1/2" plugged NPT port, suitable for water, oil, and glycol mix. Certified to NSF/ANSI 61 & 372, it supports a maximum temperature of 200°F and a maximum pressure of 250 PSI (CWP) with its threaded FNPT x FNPT connection.

• Forged DZR Brass Y-Strainer (20 Mesh) with 1/2" plugged NPT port
• Certified to NSF/ANSI 61 & 372
• Lead free

Product Highlights

Forged DZR Brass construction with 20 mesh screen and 1/2" plugged NPT port, certified lead-free for system protection.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-40566W
• Country of Origin: Import

Technical Specifications

• Size: 1-1/2"
• Material: Forged DZR Brass
• Lead Free: Yes
• Max Temperature: 200°F
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Max Pressure: 250 (CWP)
• Series: 4056W
• Softgoods Material: EPDM
