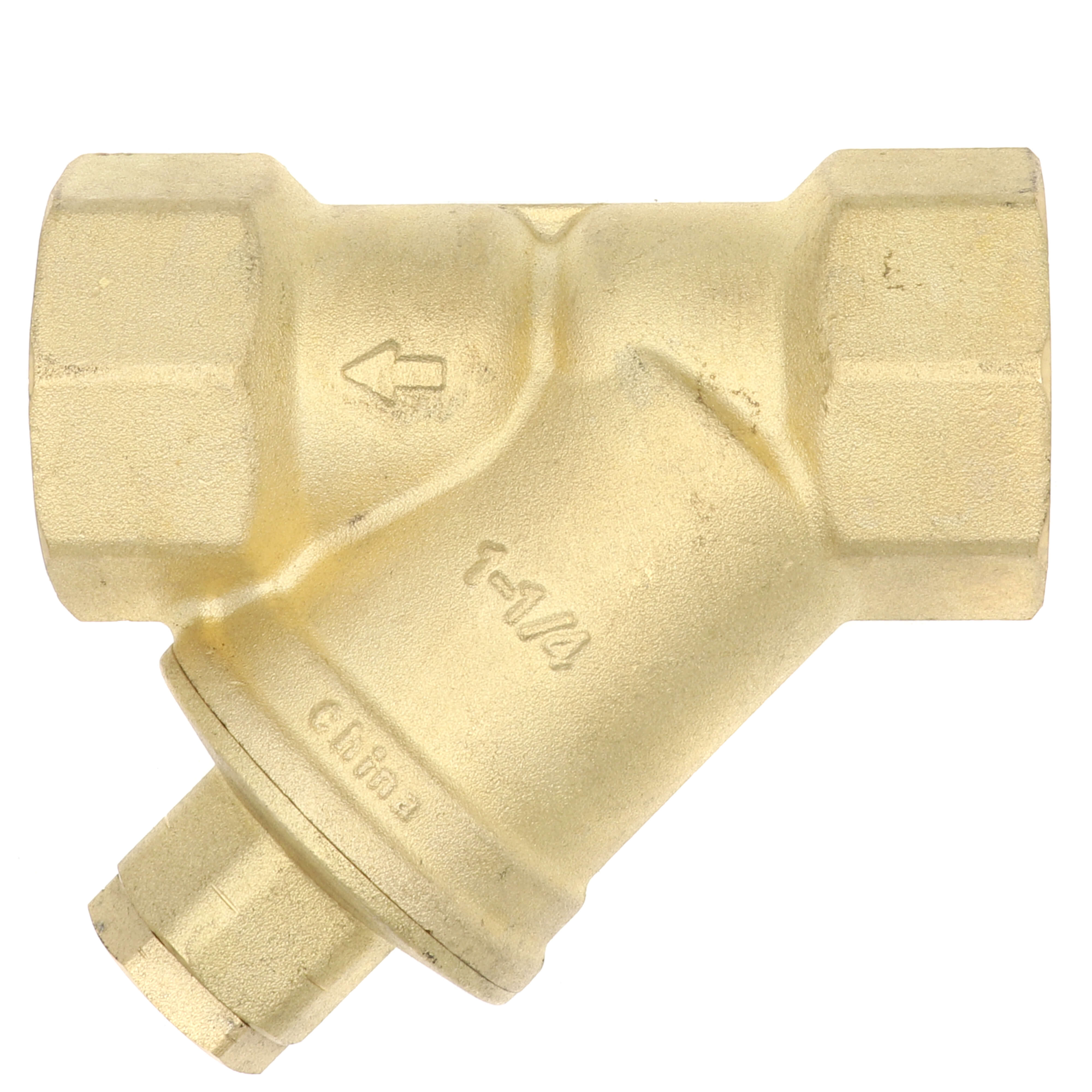

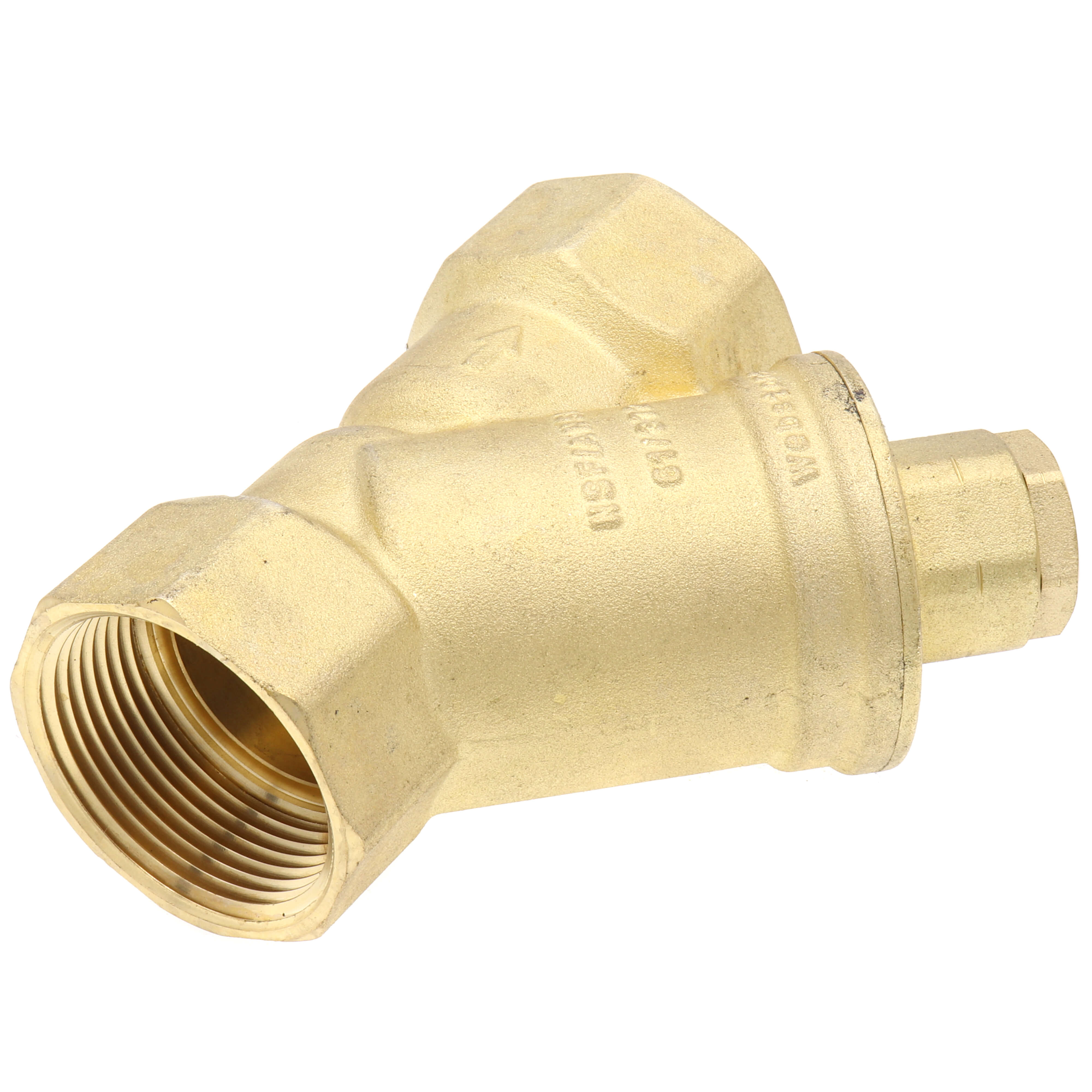

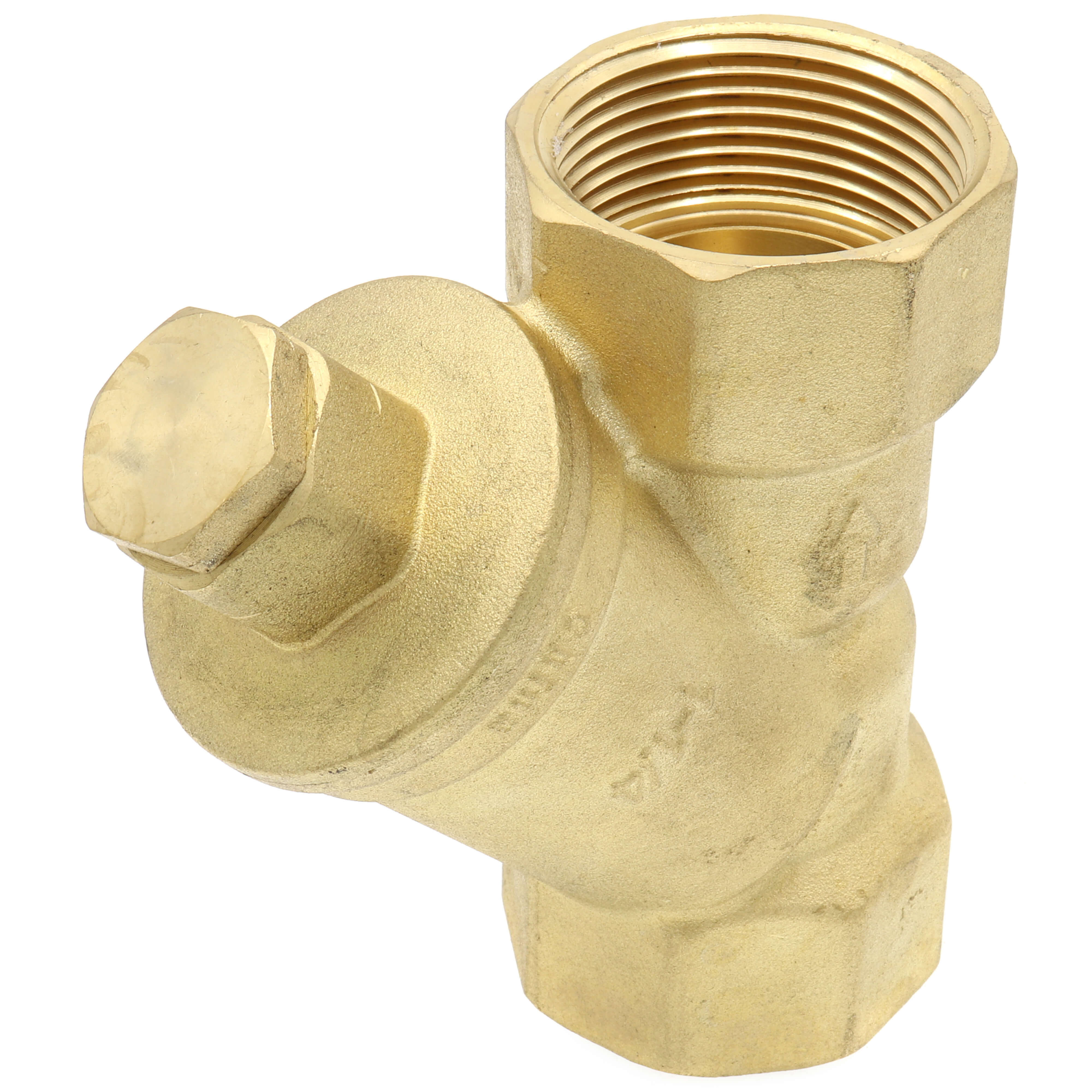

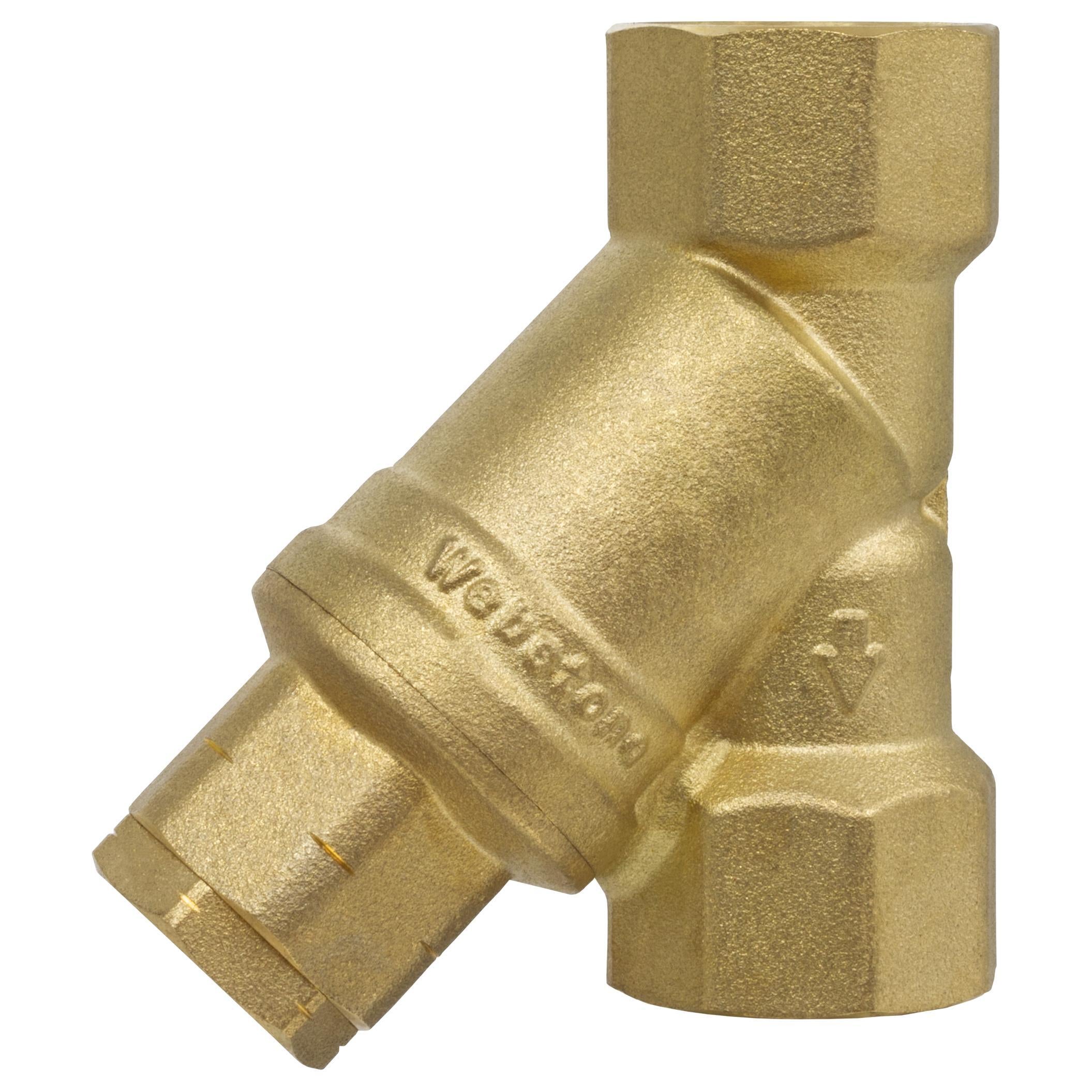

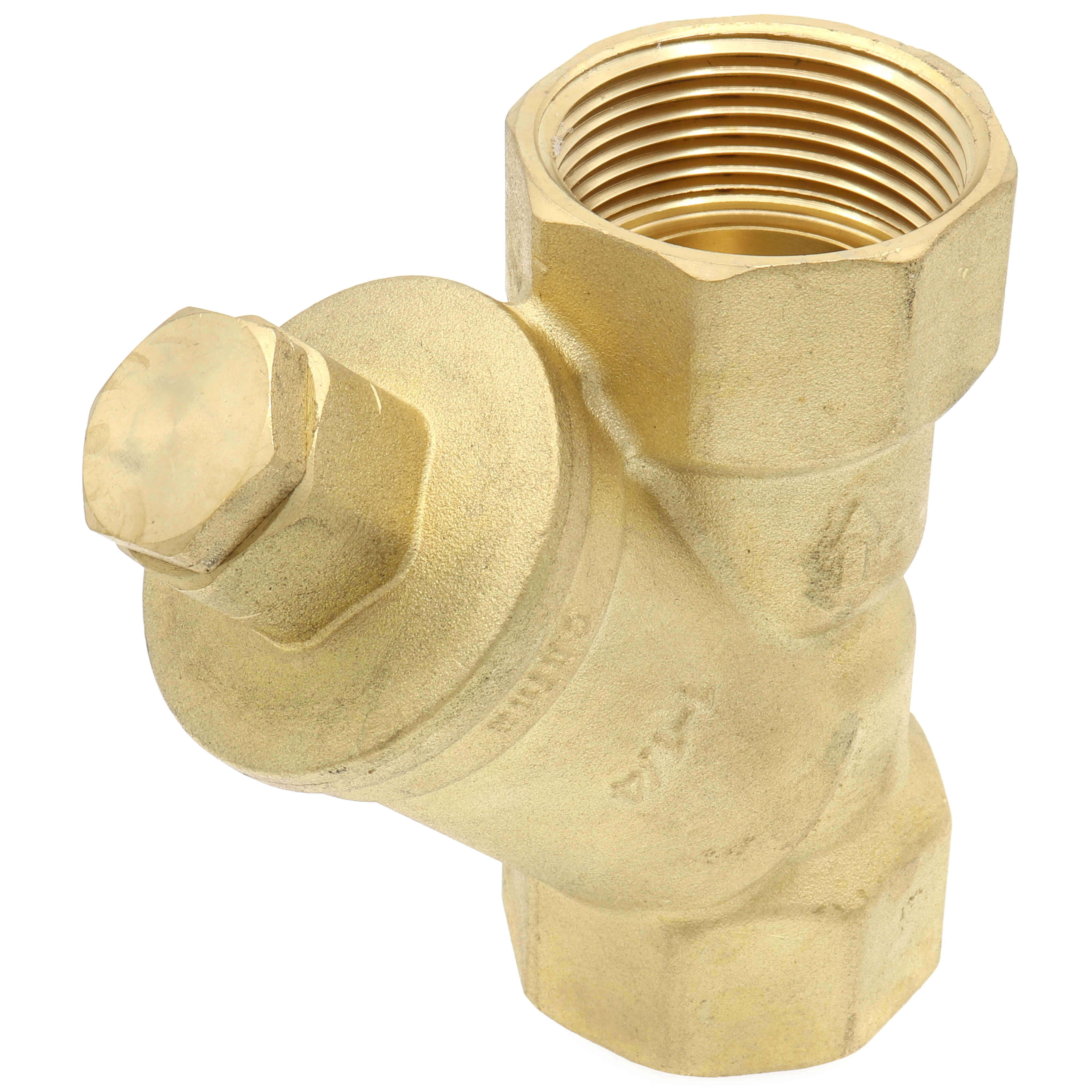

Webstone H-40565W 1-1/4 inches FIP Forged DZR Brass Y-Strainer (20 MESH) w/ 1/2 inches Plugged NPT Port

Product Description

The WEBSTONE H-40565W is a 1-1/4" FIP Forged DZR Brass Y-Strainer (20 MESH) with a 1/2" plugged NPT port. This threaded FNPT x FNPT connection strainer, made from DZR Brass, is designed to protect systems from damaging debris by collecting loose particles. It is lead-free and suitable for water, oil, and glycol mix in residential or commercial plumbing and heating systems. The strainer has a maximum temperature rating of 200°F and a maximum pressure of 250 PSI (CWP).

• Forged DZR Brass Y-Strainer (20 Mesh) with 1/2" plugged NPT port
• Certified to NSF/ANSI 61 & 372
• Lead free construction

Product Highlights

Forged DZR Brass Y-Strainer with 20 Mesh screen and 1/2" plugged NPT port, certified lead-free for plumbing and heating systems.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-40565W
• Country of Origin: Import

Technical Specifications

• Size: 1-1/4"
• Material: DZR Brass
• Lead Free: Yes
• Max Temperature (F): 200°F
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Max Pressure (PSI): 250 (CWP)
• Overall Length: 3.94 in
• Series: 4056W
• Softgoods Material: EPDM
