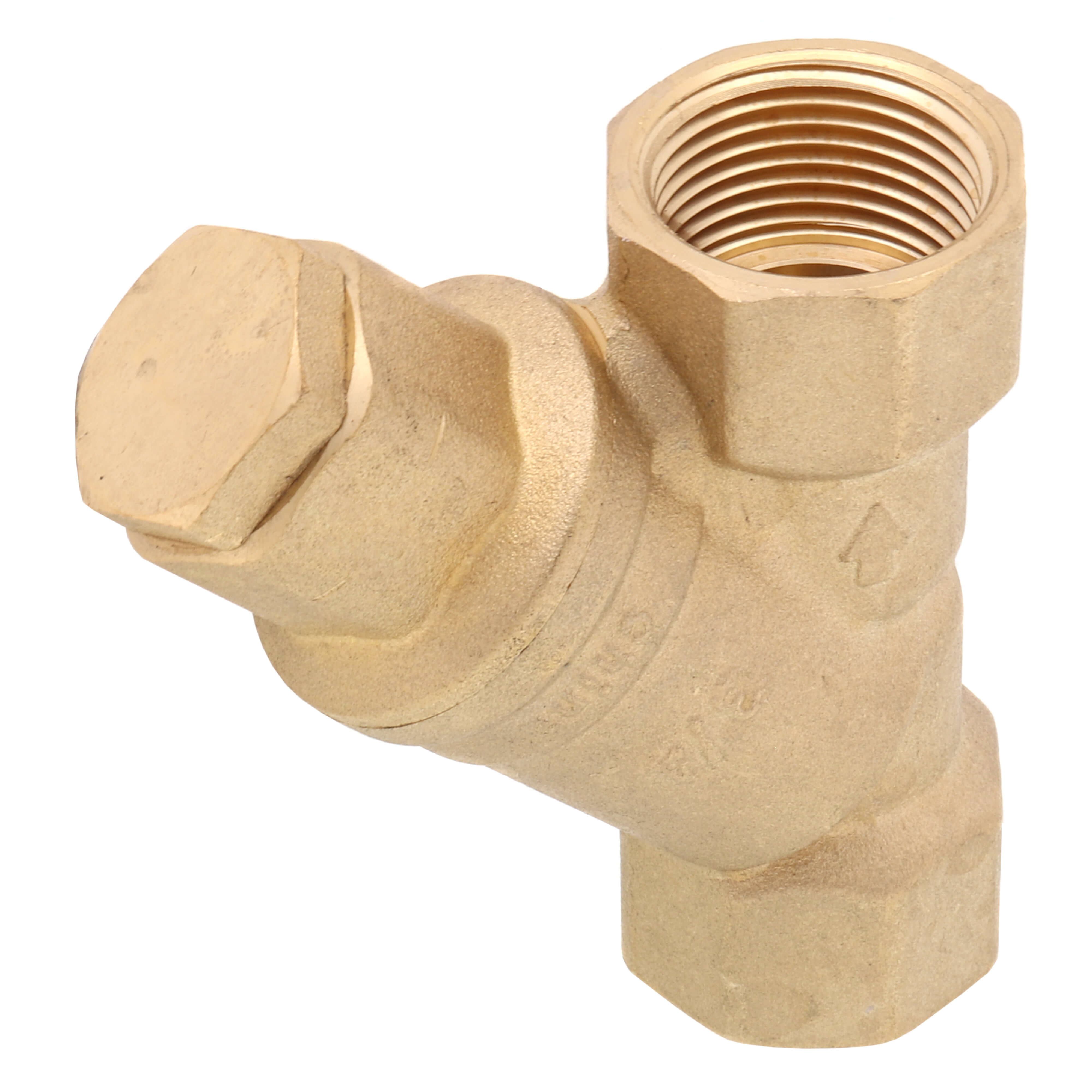

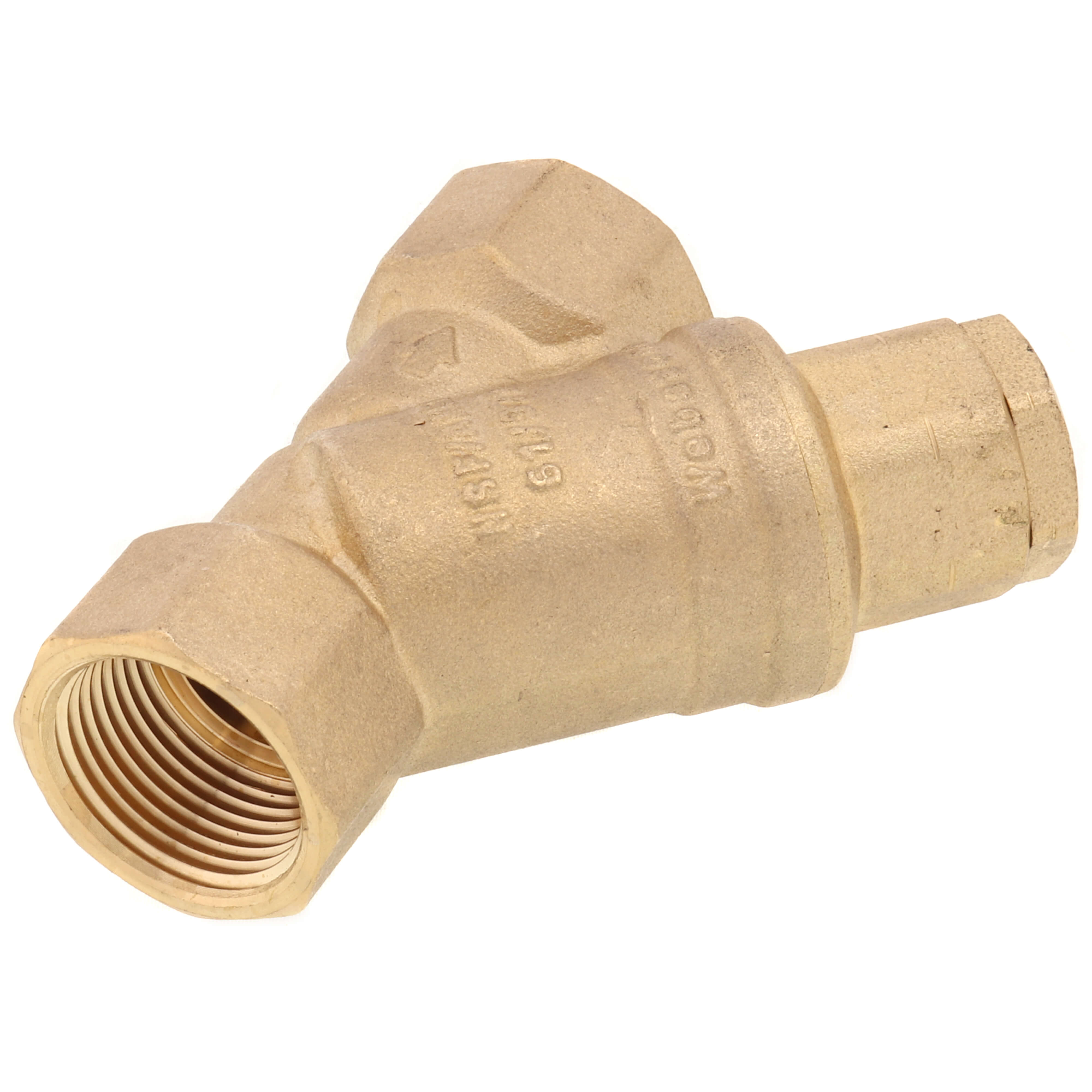

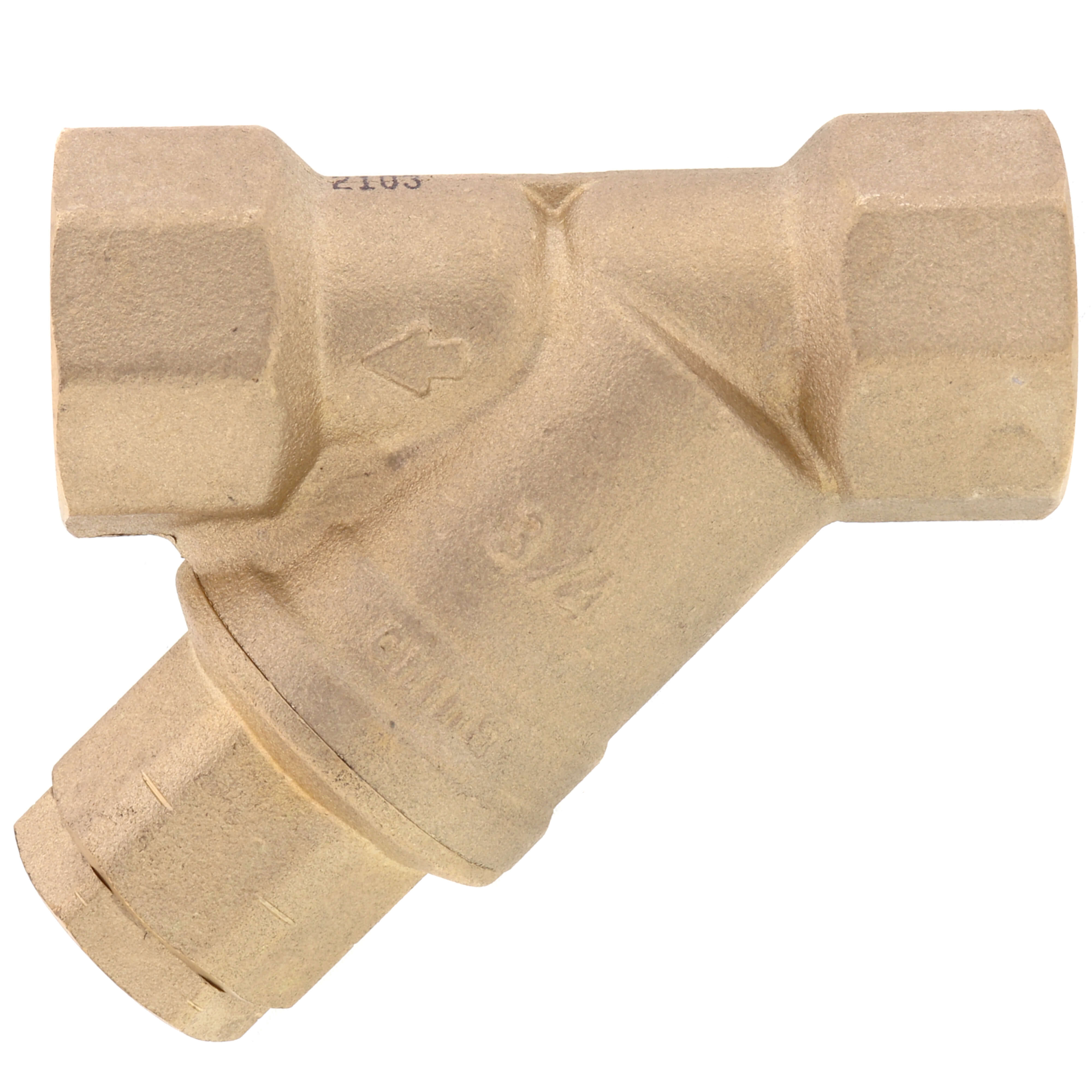

Webstone H-40563W 3/4 inches FIP Forged DZR Brass Y-Strainer 20 Mesh with 1/2 inches Plugged NPT Port

Product Description

The WEBSTONE H-40563W is a 3/4" FIP Forged DZR Brass Y-Strainer with a 20 mesh screen and a 1/2" plugged NPT port. This lead-free strainer is certified to NSF/ANSI 61 & 372, designed to protect plumbing and heating systems from damaging debris. It effectively collects loose particles from the system flow, suitable for use with water, oil, or glycol mix in residential or commercial applications. It features FNPT x FNPT threaded connections and can withstand up to 250 PSI (CWP) and 200°F.

• Forged DZR Brass Y-Strainer (20 Mesh) with 1/2" plugged NPT port.
• Certified to NSF/ANSI 61 & 372, ensuring lead-free compliance.
• Suitable for vertical or horizontal installation in plumbing and heating systems.

Product Highlights

This Y-Strainer protects systems from debris, features a DZR brass body, and is certified lead-free for various applications.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-40563W
• Country of Origin: China

Technical Specifications

• Nominal Size: 3/4"
• Body Material: DZR Brass
• Lead Free: Yes
• Max Temperature: 200°F
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Max Pressure: 250 PSI (CWP)
• Series: 4056W
• Softgoods Material: EPDM
• Model: THD-X056W
• Type of Valve: Strainer
