Product Description

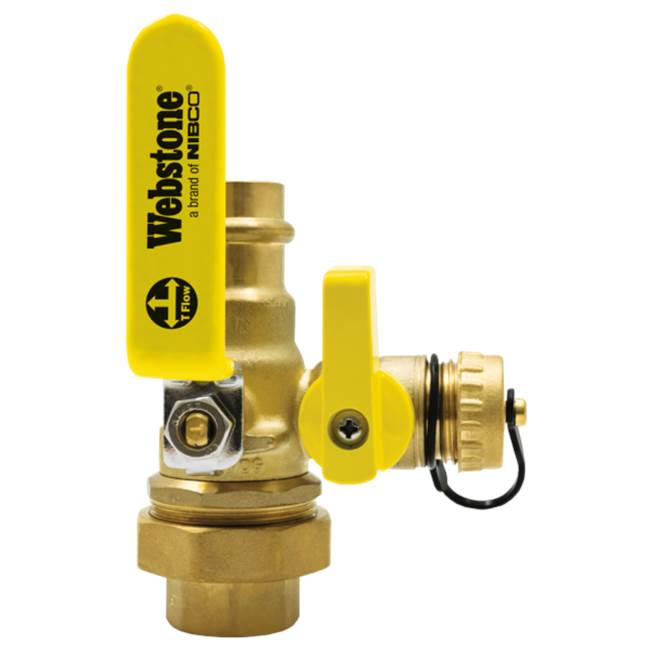

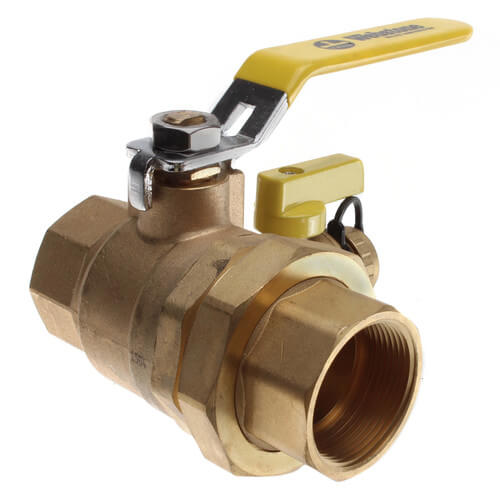

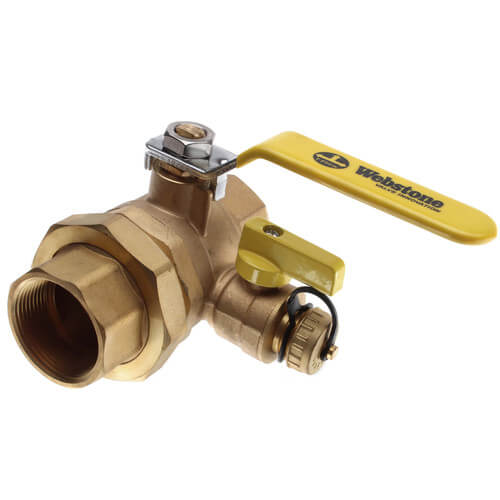

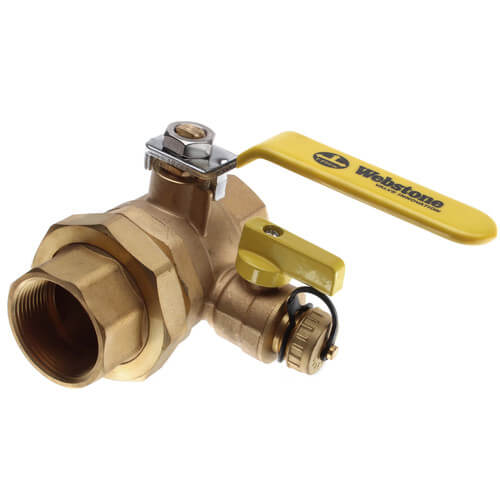

The WEBSTONE H-40436 Pro-Pal Ball Drain is a forged brass valve designed for efficient installation and system operation in residential or commercial plumbing and heating systems. It features a 1-1/2 inch nominal size with FNPT Union x FNPT end style, a full port design, and a handle actuator. Rated for 600 psi CWP and temperatures up to 350 deg F, this valve combines multiple components to save time and space when isolating and draining piped systems.
- Eliminates assembly needed to isolate and drain any portion of a piped system
- Reversible handle for added versatility
- Exclusive adjustable flow path allows for draining from either side of the ball
Product Highlights
This Pro-Pal valve replaces 6 components, eliminates 5 leak paths, and saves 45 minutes in installation, making it ideal for isolating and draining piped systems.
Product Information
Standard Information
-
Brand: WEBSTONE
-
Manufacturer Part Number: H-40436
Technical Specifications
-
Actuator Type: Handle
-
Ball Material: HCP Brass
-
Body Material: Brass
-
End Style: FNPT Union x FNPT
-
Nominal Size: 1-1/2 in
-
Orifice Size: 3/4 in
-
Port Type: Full
-
Pressure Rating: 600 psi CWP
-
Series: 4043
-
Softgoods Material: EPDM/PTFE
-
Temperature Rating: 350 deg F
-
Trim Material: Brass/PTFE
-
Connection Method: Threaded
-
Lead Free: No
-
Thread Type: Female
