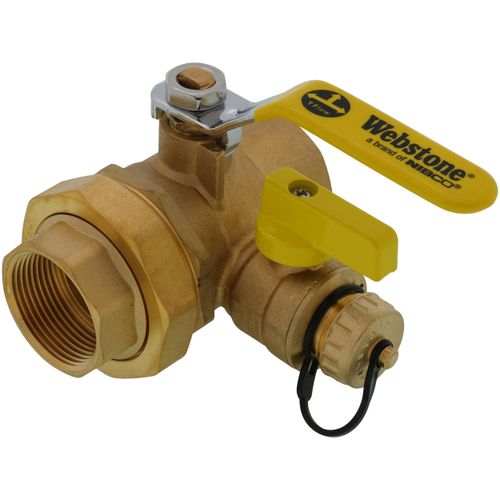

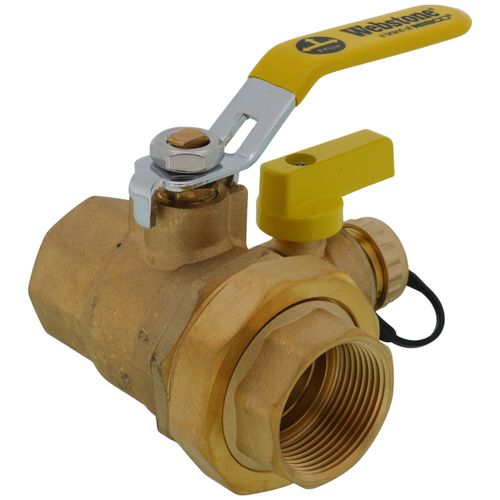

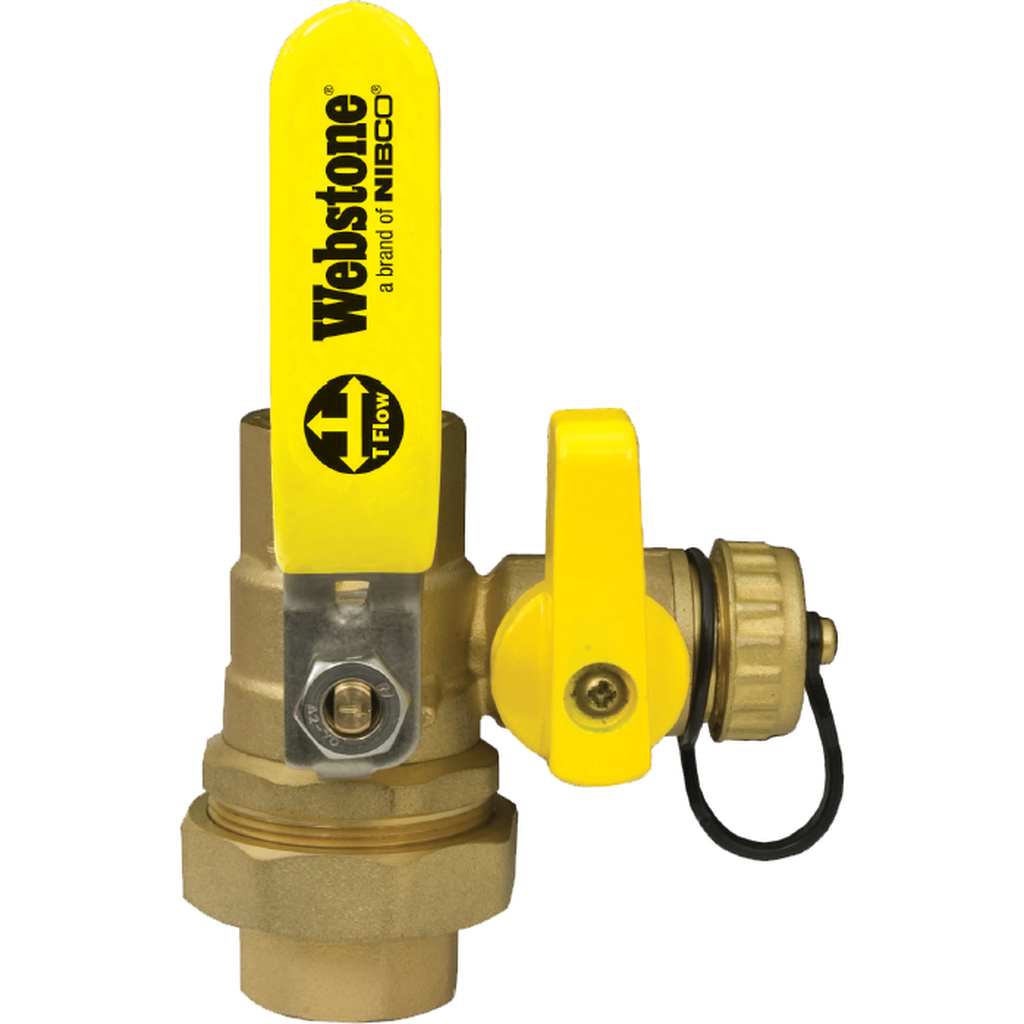

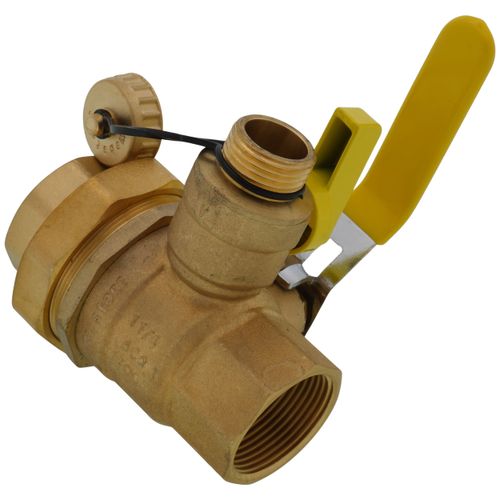

Webstone H-40435 1-1/4 inches Threaded Pro-Pal Union Full Port Ball Valve with Hose Drain

Product Description

The WEBSTONE H-40435 is a 1-1/4 inch Threaded Pro-Pal Union Full Port Ball Valve with a Hose Drain. Constructed from brass, this valve features FNPT Union x FNPT threaded connections and a lever handle. It is designed for non-potable water applications, as it is not lead-free. The valve offers a full port design, a pressure rating of 600 psi, and a maximum temperature of 250°F, facilitating efficient isolation and draining of piped systems.

• Eliminates assemblies needed to isolate and drain any portion of a piped system.
• Features a reversible handle for added versatility in installation.
• Exclusive adjustable flow path allows for draining from either side of the ball.

Product Highlights

Facilitates system isolation and draining with a full port design and integrated hose drain.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-40435

Technical Specifications

• Size: 1-1/4"
• Handle Style: Lever
• Connection Method: Threaded
• Connection Type: FNPT Union x FNPT
• Drain Feature: Hose Drain
• Pressure Rating: 600 psi
• Material: Brass
• Lead Free: No
• Maximum Temperature: 250°F
• Thread Type: Female
• Port Type: Full Port
• Product Type: Union Ball Drain
