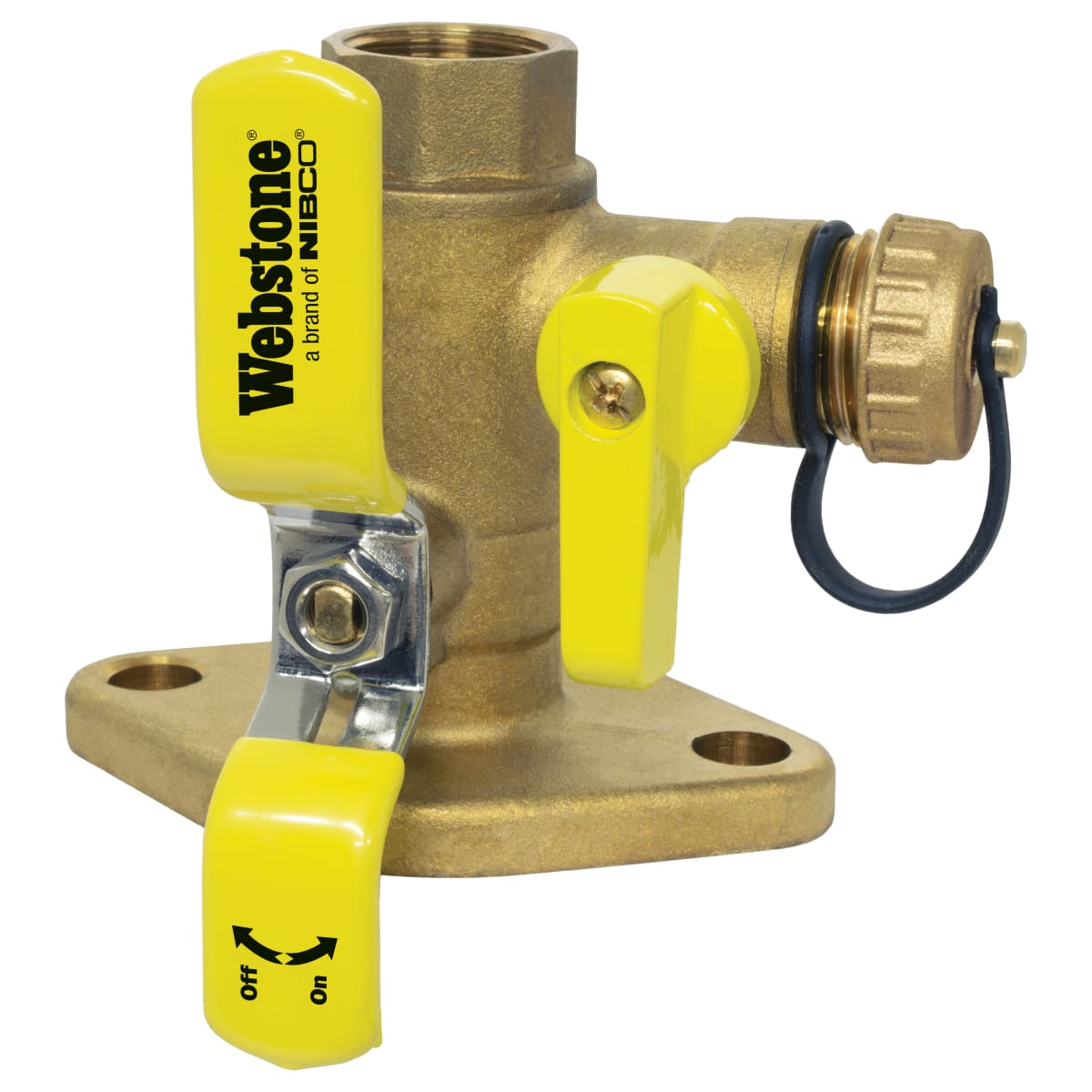

Webstone H-40416HV 1-1/2 FIP x Flange Non-Potable Isolator w/ Drain

Product Description

The Webstone H-40416HV is a non-potable isolator designed to streamline the maintenance of circulator pumps. This uni-flange ball valve effectively isolates the pump, minimizing air entry during replacements or servicing. Crafted with a forged brass body, it combines several components to conserve time and space during installation.

• Features a unique design that allows for multi-functional draining from either side
• Prevents electrolysis and eliminates galvanic corrosion
• Compatible with a wide range of standard circulator pumps

Product Highlights

This isolator ball valve is crucial for plumbing and heating systems, especially when combined with water, oil, or glycol mixtures. It is backed by a limited lifetime warranty and certified to NSF/ANSI 61.

Product Information

Standard Information

• Brand: Webstone
• Part Number: WEBS-H-40416HV

Technical Specifications

• Size: 1-1/2 inches
• Type: Isolator Fixed Flange with Drain
• Material: Brass
• Connection Type: FIP x Flange
• Pressure Rating: 600 PSI CWP Max
• Application: Non-Potable
