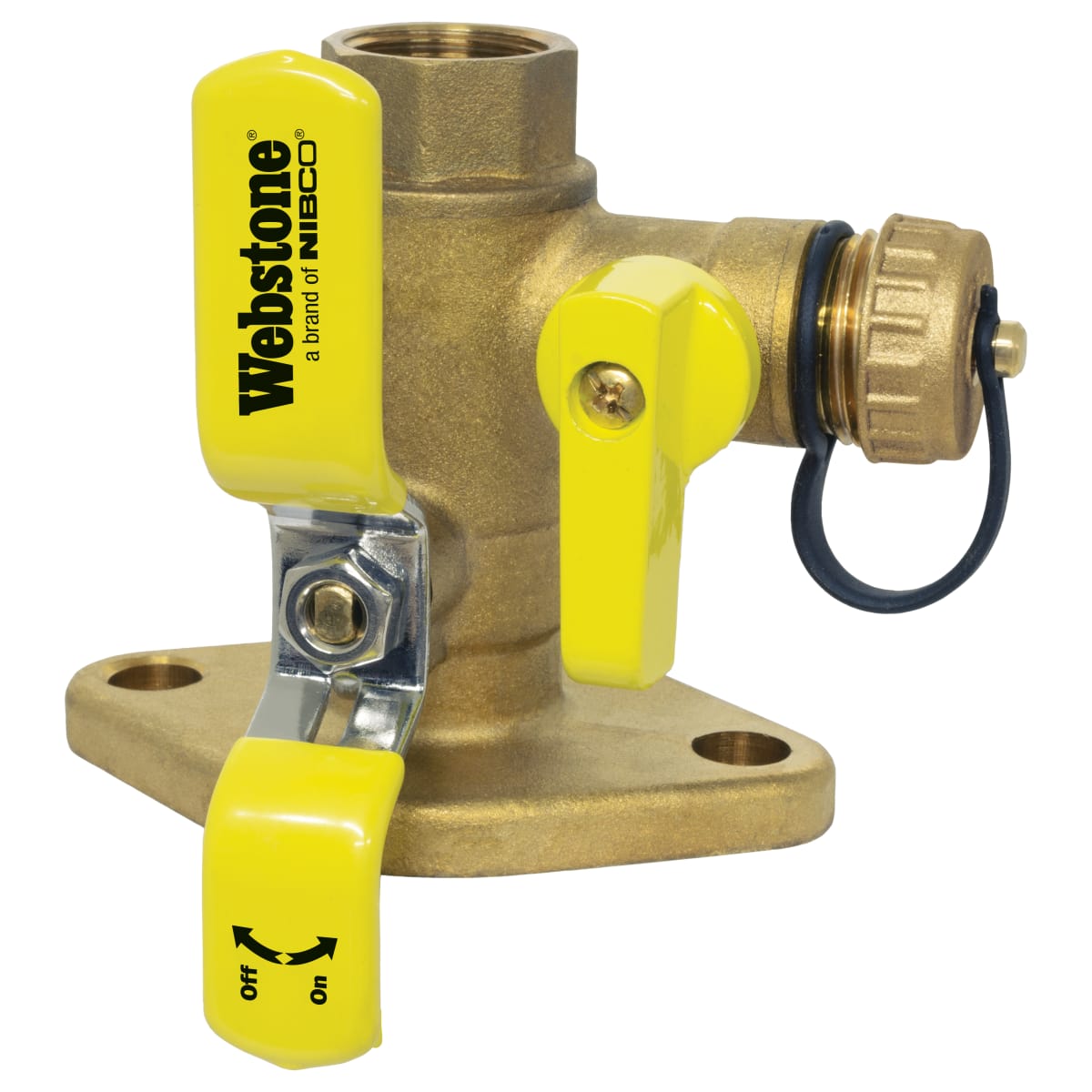

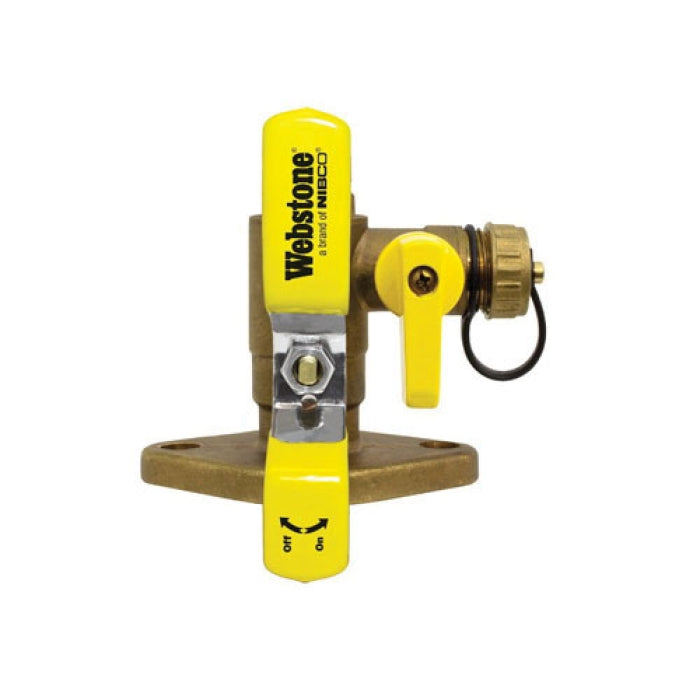

Webstone H-40414 1 FIP x Flange Non-Potable Isolator w/ Drain

Product Description

The Webstone H-40414 is a 1 inch FIP x flange non-potable isolator designed for easy isolation of circulator pumps. This uni-flange ball valve minimizes air intake during pump replacement or service, streamlining maintenance tasks. Made from forged brass, this isolator combines various components into a single unit, optimizing space and reducing installation time.

• Easily isolates the pump for service
• Prevents electrolysis and galvanic corrosion
• Conical inlet design minimizes turbulence

Product Highlights

Designed for residential and commercial use with a range of fluids, the H-40414 offers innovative features such as adjustable packing glands and a multi-function drain. It is part of the largest flanged ball valve program in the industry.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-40414

Technical Specifications

• Size: 1 inch
• Type: Isolator Fixed Flange With Drain
• Material: Brass
• Application: Non-Potable
• Connection Size: 1 inch
• Connection Type: FIP x Flange
• Pressure Rating: 600 PSI CWP Max
