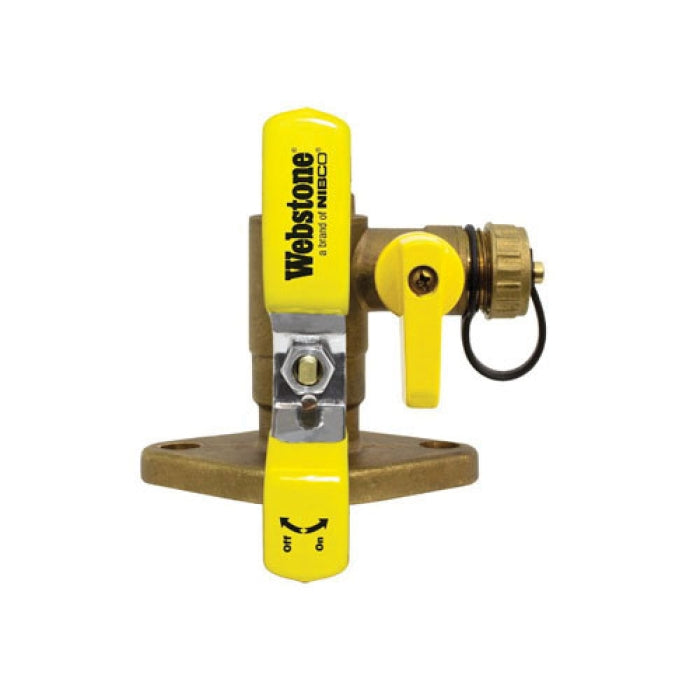

Webstone H-40413 Isolator Uni-Flange Ball Valve 3/4 in

Product Description

The Webstone H-40413 Isolator is a uni-flange ball valve designed for isolating circulator pumps. It allows minimal air entry during maintenance or replacement. The valve integrates numerous components into one forged brass body, enhancing efficiency and saving space. This valve is a preferred choice for residential and commercial plumbing applications, suitable for use with water, oil, and glycol mixtures.

• Easily isolates the pump for replacement
• Prevents electrolysis and eliminates galvanic corrosion
• Compatible with standard circulator pumps

Product Highlights

The H-40413 features a full port design, durable EPDM/PTFE softgoods, and a wing style T-handle actuator.

Product Information

Standard Information

• Brand: Webstone
• Manufacturer: NIBCO Inc.

Technical Specifications

• Actuator Type: Wing Style T-Handle
• Ball Material: HCP Brass
• Body Material: Forged Brass
• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• End Style: FNPT x Flange
• Pressure Rating: 600 psi CWP
• Series: 4041
• Temperature Rating: 100 deg F
• Inlet to Outlet Length: 3-9/16 in
• Top to Inlet Center: 2-1/4 in
• Trim Material: Brass/PTFE
• Softgoods Material: EPDM/PTFE
• Domestic/Import: Import
