Webstone H-40406 Isolator Ball Valve 1-1/2 in FNPT x Flange

Product Description

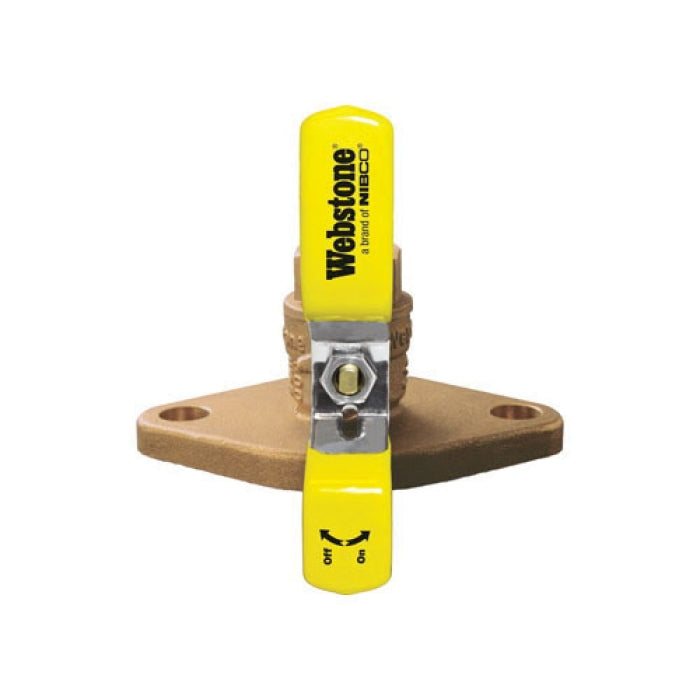

The Webstone Isolator H-40406 is a uni-flange ball valve designed to isolate circulator pumps effectively. This valve prevents air from entering the system during pump maintenance. Constructed with a durable forged brass body, this valve integrates multiple components into one unit, helping to save time and space during installations.

• Easily isolates pump for replacement
• Prevents galvanic corrosion
• Compatible with standard circulator pumps

Product Highlights

The valve is suitable for use with water, oil, and glycol mixtures in both residential and commercial plumbing systems. It features PTFE softgoods and is available with a lever handle actuator to facilitate easy operation.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-40406

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Brass
• Body Material: Forged Brass
• End Style: FNPT x Flange
• Inlet to Outlet Length: 4 in
• Media: Glycol Mixture/Oil/Water
• Nominal Size: 1-1/2 in
• Orifice Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: 4040
• Softgoods Material: PTFE
• Temperature Rating: 100 deg F
• Top to Inlet Center: 3-3/8 in
• Trim Material: Brass/PTFE
• Type: Standard Uni-Flange
