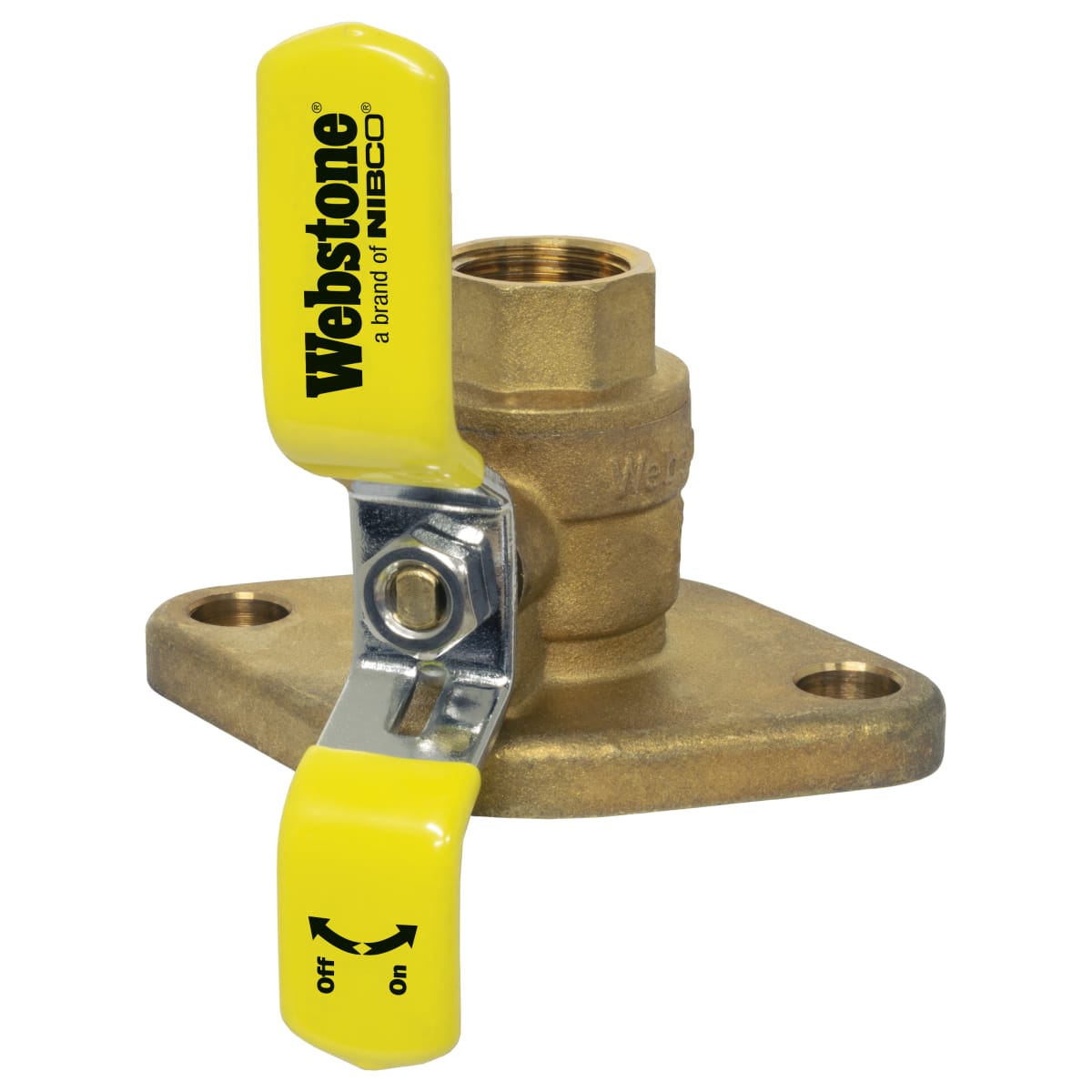

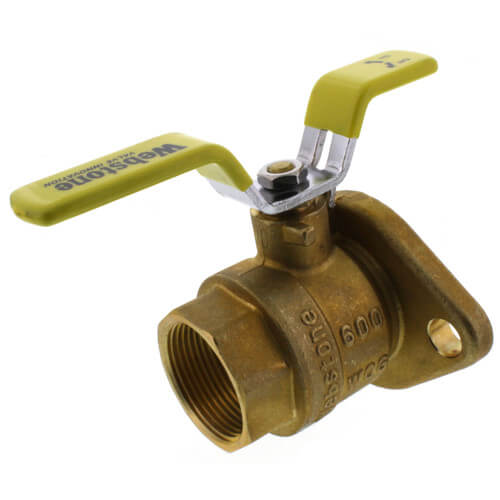

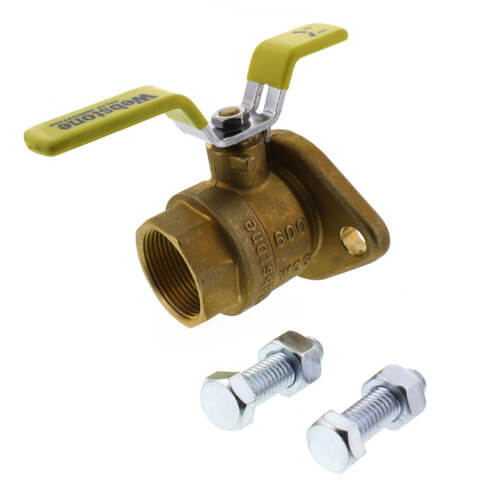

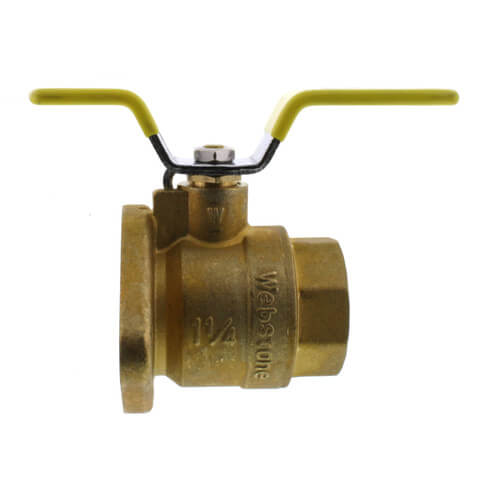

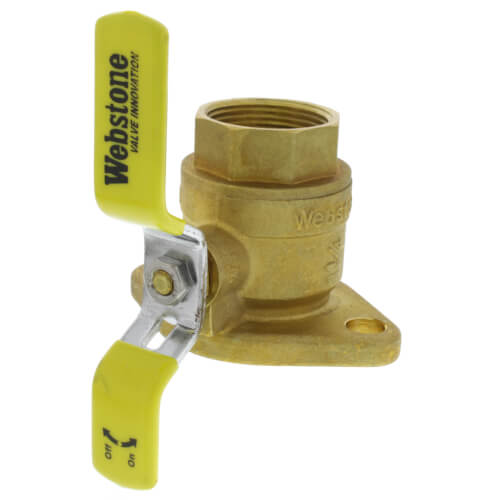

Webstone H-40405 1-1/4 FIP x Flange Non-Potable Isolator Uni-Flange Ball Valve Full Port Forged Brass Ball Valve

Product Description

The Webstone H-40405 is a 1-1/4 inch FIP x Flange non-potable isolator uni-flange ball valve. This valve is designed to isolate a circulator pump, minimizing air entry during service or replacements. The compact design integrates multiple components into a single forged brass body, making it efficient for plumbing and heating systems.

• Easily isolates the pump for replacement
• Prevents electrolysis and galvanic corrosion
• Compatible with standard circulator pumps for versatile applications

Product Highlights

This valve is certified to NSF/ANSI 61 and is suitable for use with water, oil, or glycol mixes in both residential and commercial systems.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-40405

Technical Specifications

• Size: 1-1/4 inches
• Connection Type: FIP x Flange
• Material: Brass
• Pressure Rating: 600 PSI CWP Max
• Application: Non-Potable
• Operating Temperature: 100 degrees Fahrenheit
• Inlet to Outlet Length: 2-7/8 inches
• Orifice Size: 1-1/4 inches
