Product Description

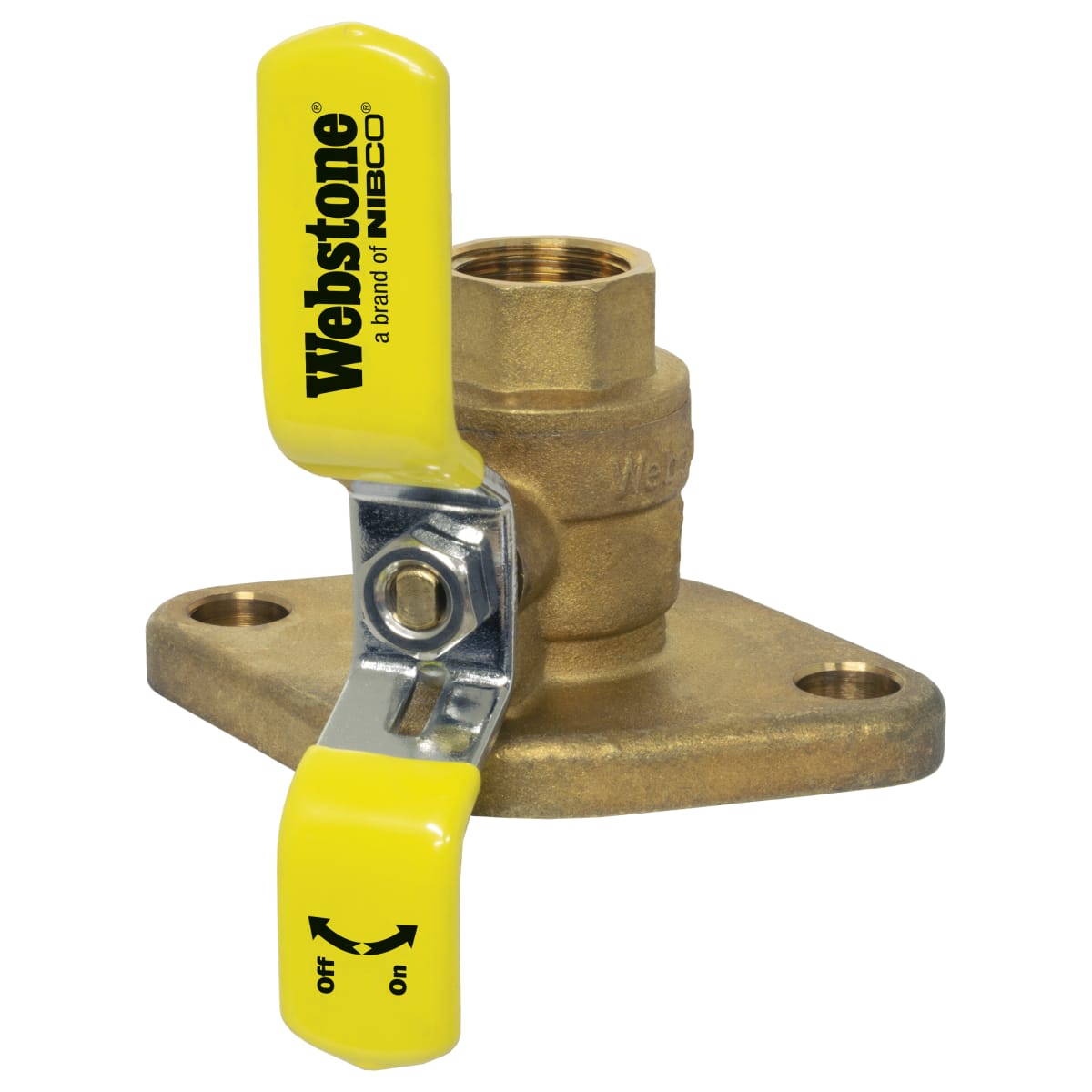

The Webstone H-40403 is a non-potable isolator uni-flange ball valve designed to isolate circulator pumps. This valve minimizes air intake during pump replacement or service, ensuring efficiency and effectiveness in plumbing systems. The forged brass construction simplifies installation by integrating multiple components, reducing time, labor, and space needed. This valve is essential for both residential and commercial plumbing, capable of handling water, oil, and glycol mixtures.
- Easily isolates the pump for replacement
- Prevents electrolysis and eliminates galvanic corrosion
- Flange features a conical inlet to minimize turbulence
Product Highlights
The H-40403 valve saves 18 minutes during installation compared to traditional setups, replaces three components, and eliminates two potential leak paths.
Product Information
Standard Information
-
Brand: Webstone
-
MPN: H-40403
Technical Specifications
-
Size: 3/4 inch
-
Type: Isolator Fixed Flange No Drain
-
Material: Brass
-
Application: Non-Potable
-
Connection Size: 3/4 inch
-
Connection Type: FIP x Flange
-
Pressure Rating: 600 PSI CWP Max
-
Temperature Rating: 100 degrees F
