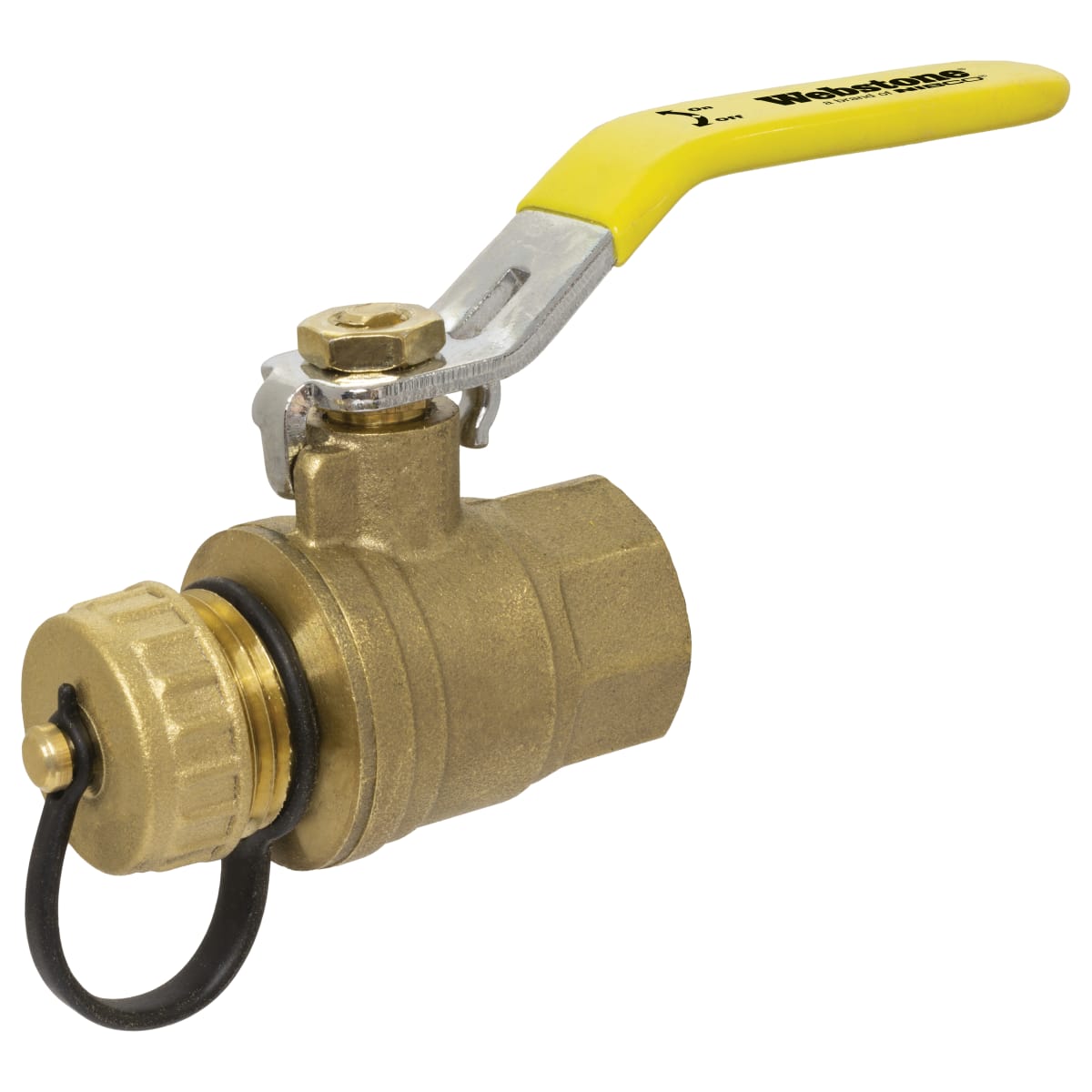

Webstone H-40313W 3/4 FIP x Hose Lead-Free Full Port Forged Brass Ball Valve, w/ Cap & Strap, Reversible Handle, & Adjustable Packing Gland

Product Description

The Webstone H-40313W is a three-fourths inch FIP x hose lead-free ball valve that provides reliable control of flow and easy transitions between pipe styles. This valve is designed for applications involving water, oil, or glycol mixtures in both residential and commercial plumbing systems.

• Controls flow through a quarter-turn lever handle.
• Easily transitions from FIP to hose connections.
• Features a reversible handle and an adjustable packing gland.

Product Highlights

This valve reduces potential leak paths and saves time during installation.

Product Information

Standard Information

• Brand: Webstone
• MPN: H-40313W

Technical Specifications

• Material: Brass
• Connection Size: 3/4 inch
• Connection Type: FIP x Hose
• Pressure Rating: 600 WOG / 150 WSP
• Temperature Rating: 100 degrees Fahrenheit
• Ball Material: HCP Brass
• Body Material: Forged Brass
• Trim Material: Brass Stem and PTFE Seat
• Inlet to Outlet Length: 2-9/16 inches
• Top to Inlet Center: 1-7/8 inches
• Series: 4031
