Webstone H-30612W 1/2 F1960 PEX Lead-Free Pro-Pal Ball Drain

Product Description

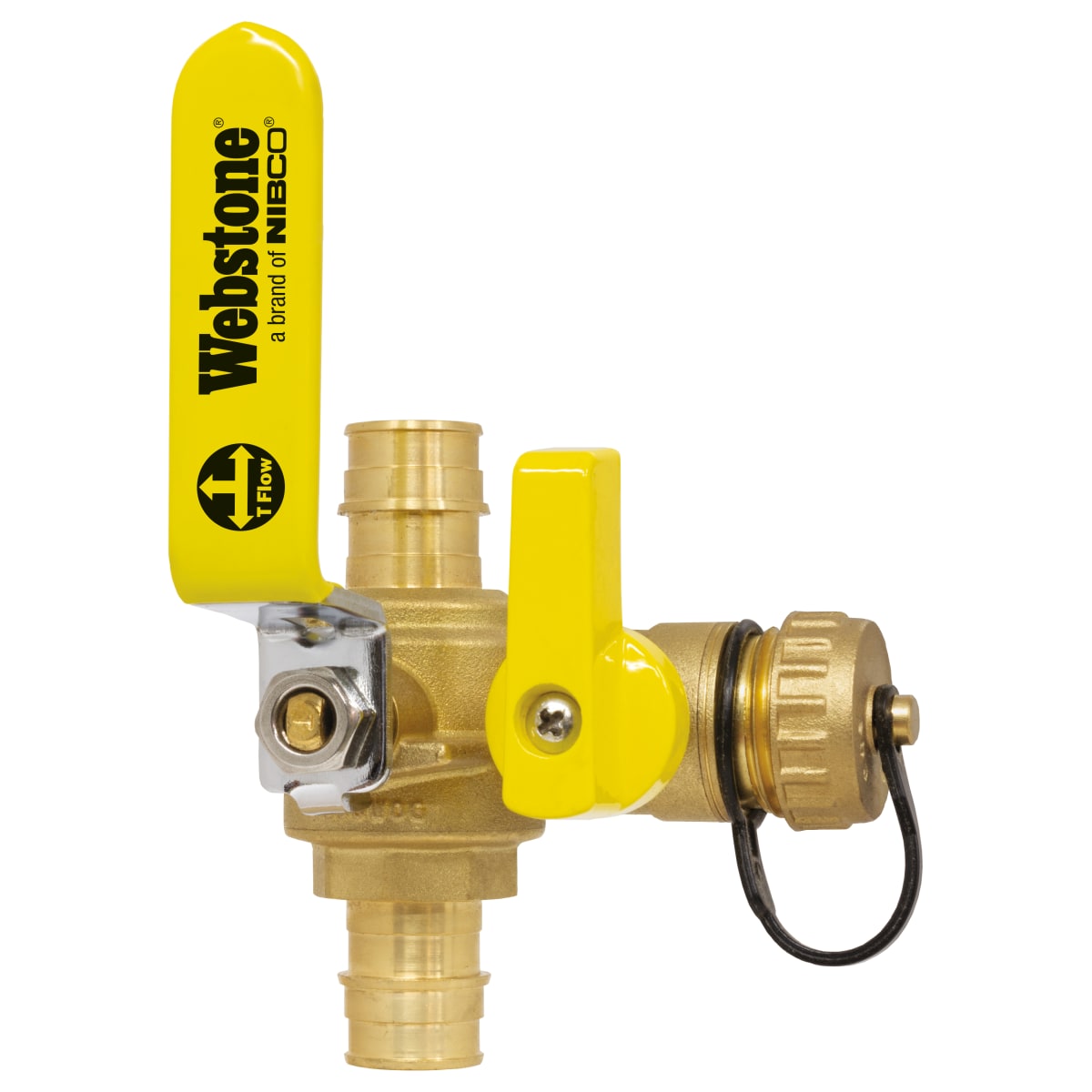

The Webstone H-30612W is a 1/2 inch F1960 PEX lead-free Pro-Pal ball drain. This forged brass ball valve is designed for plumbing systems using water, oil, or glycol. The valve features a high-flow hose drain for effective draining, and a reversible handle for versatile operation. It simplifies installations by combining multiple components into a single unit.

• Eliminates assembly needed to isolate and drain any portion of a piped system.
• Reversible handle provides added versatility.
• Exclusive adjustable flow path allows for draining from either side of the ball.

Product Highlights

Innovate your piping system with the Pro-Pal series valves. These valves reduce installation time and save on costs.

Product Information

Standard Information

• Brand: Webstone
• Part Number: H-30612W

Technical Specifications

• Material: Brass
• Connection Size: 1/2 inch
• Connection Type: F1960 x F1960
• Pressure Rating: 400 PSI CWP Max
• Temperature Rating Max: 200 F Max
• Certification: Certified to NSF/ANSI/CAN 61 & 372
• Application: Lead-Free
