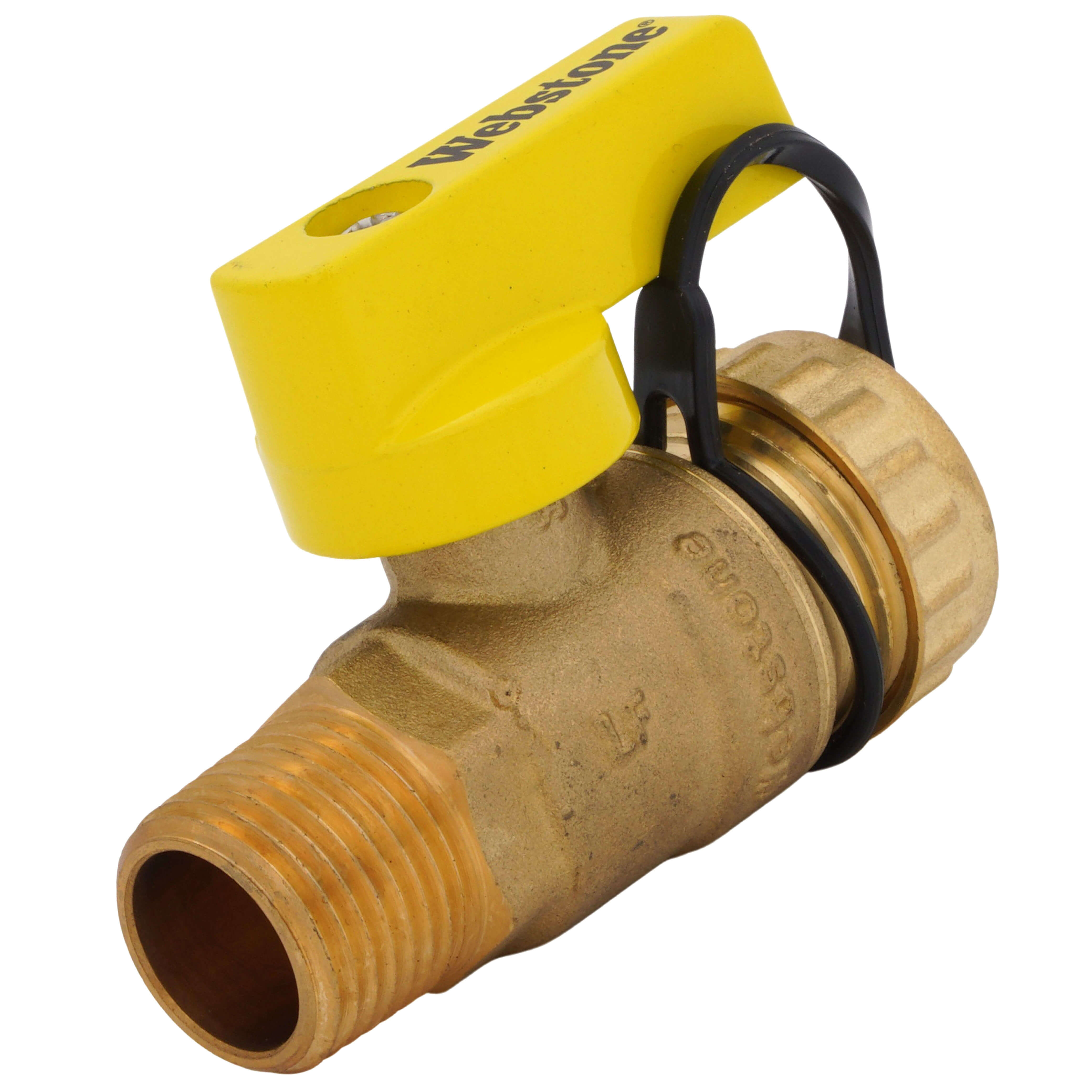

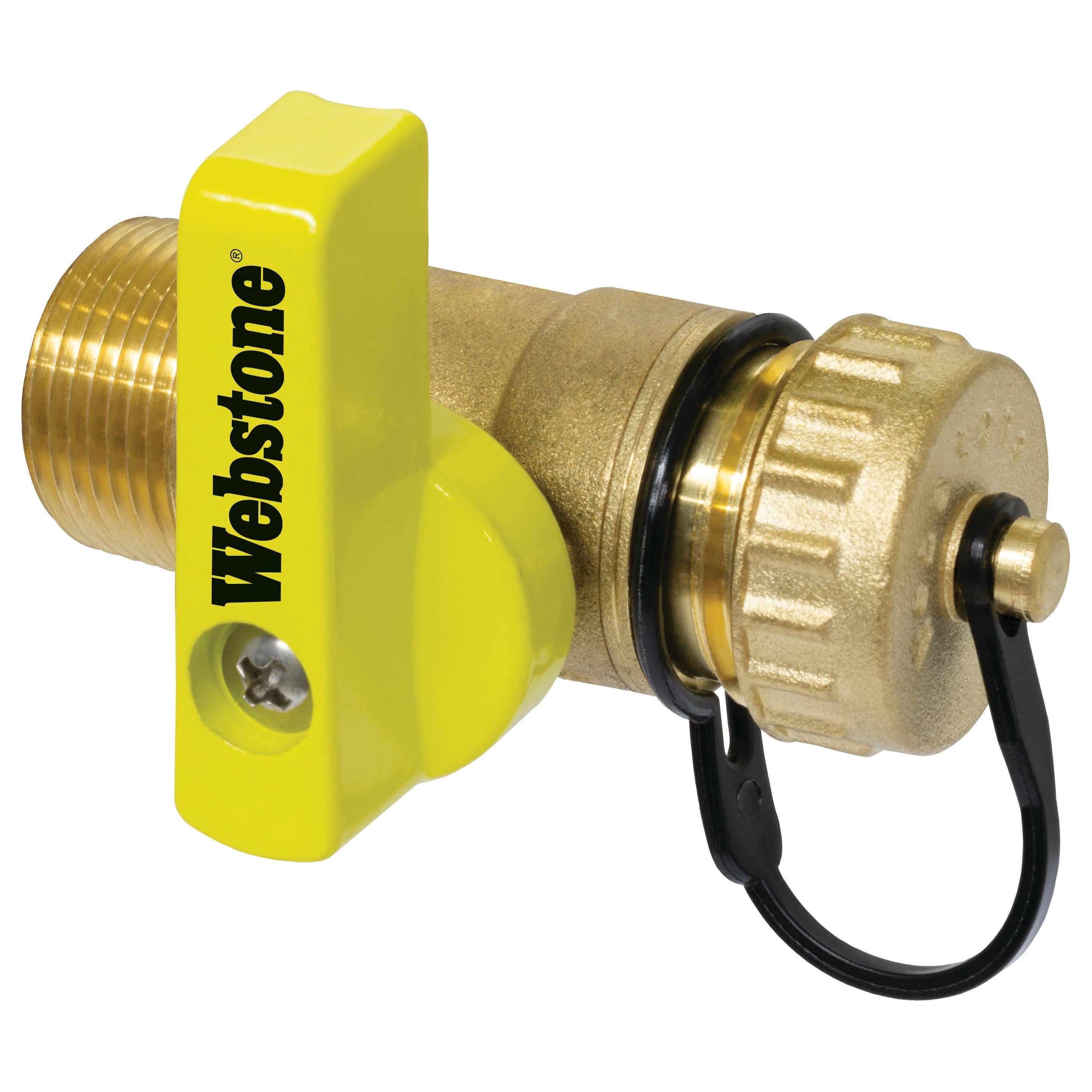

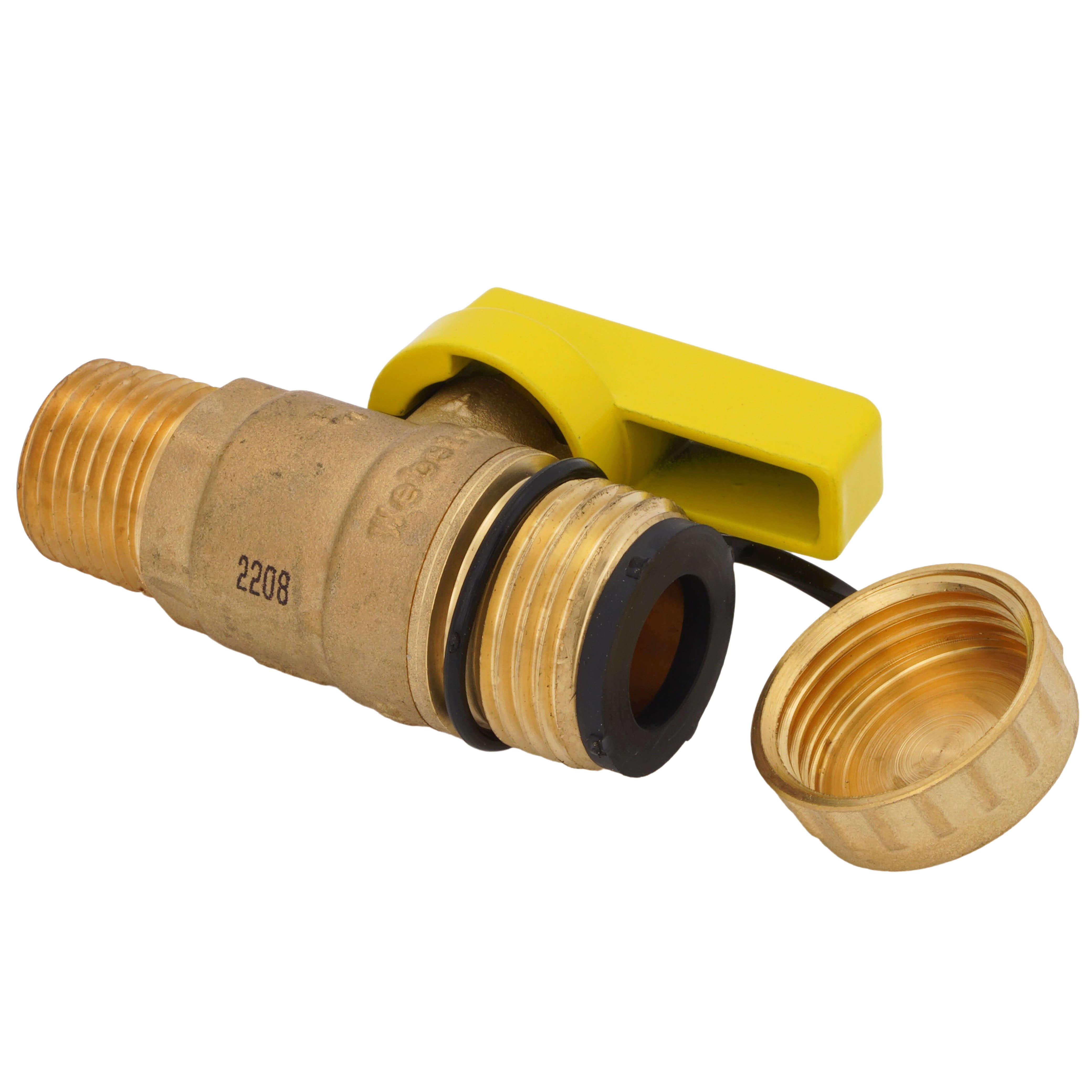

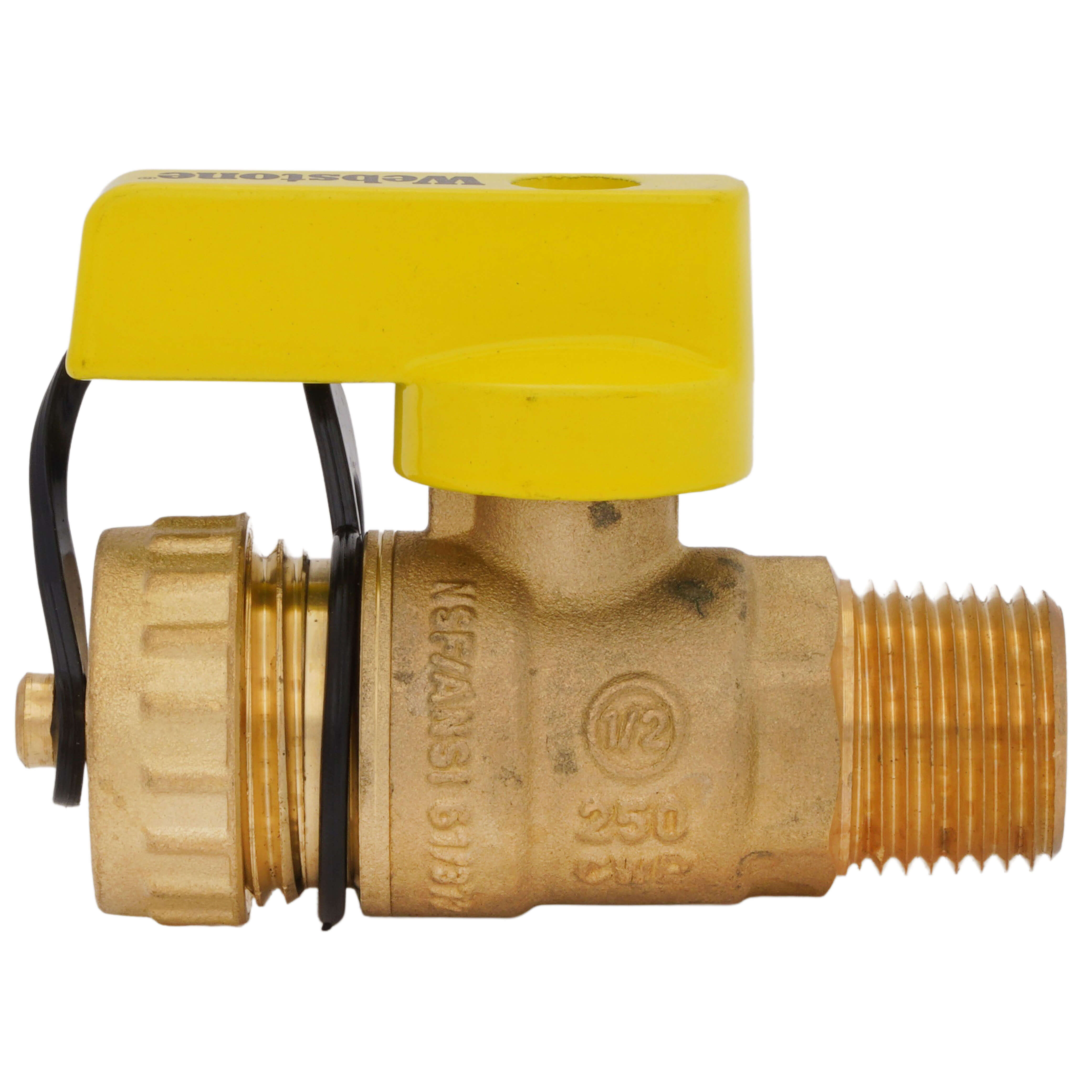

Webstone H-20302W Pro-Pal Add-A-Drain H-Flow Forged DZR Brass Ball Valve 1/2 inches x 3/4 inches MIP x Hose

Product Description

The WEBSTONE H-20302W Pro-Pal Add-A-Drain H-Flow Forged DZR Brass Ball Valve is designed for efficient installation and system operation in plumbing and heating systems. This lead-free DZR brass valve combines common components into a single forged alternative, saving time and space. It features a 1/2" x 3/4" MIP x Hose connection, suitable for water, oil, or glycol mix applications. With a maximum pressure rating of 250 PSI CWP and a maximum temperature rating of 250 F, it provides a reliable solution for adding a hose connection.

• Hi-flow, quarter-turn alternative to traditional boiler drains.
• Straight design for more convenient service access.
• Compact handle saves space.

Product Highlights

Lead-free forged DZR brass construction with adjustable packing gland, suitable for hydronic or potable applications.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-20302W
• Country of Origin: Import

Technical Specifications

• Valve Type: WBST Propal Add-A-Drain Ball Valve
• Material: Lead-Free DZR Brass
• Application: Lead-Free, Plumbing
• Connection Size: 1/2" x 3/4"
• Connection Type: MIP x Hose
• Pressure Rating: 250 PSI CWP Max
• Temperature Rating: 250 F Max
• Port Type: Full Port
• Handle Style: Lever
• Connection Method: Threaded, Hose
• Ball Material: DZR Brass
• Media: Glycol Mix/Oil/Water
• Series: H-X030
• Softgoods Material: PTFE
• Trim Material: Brass
