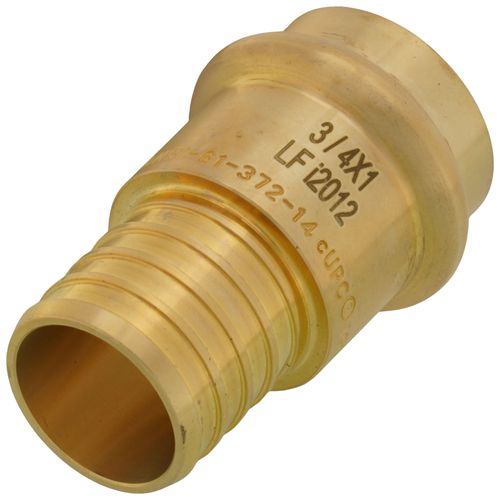

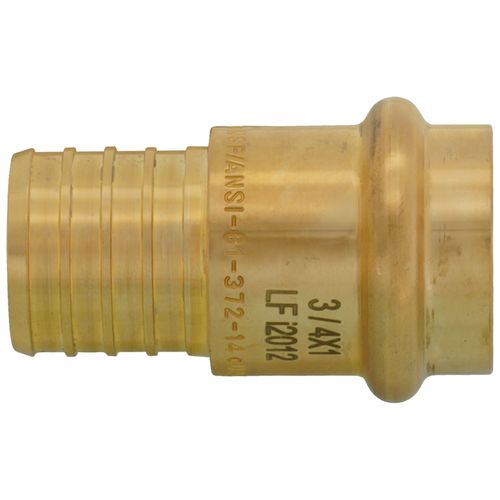

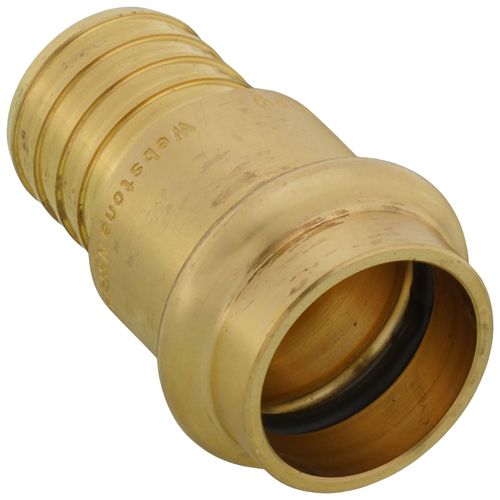

Webstone H-16804W-RX Transition Fitting 1 x 3/4 in

Product Description

The Webstone H-16804W-RX is a brass transition fitting with the MPN H-16804W-RX, designed to connect press and PEX piping systems efficiently. This fitting is compatible with water, oil, and glycol mixtures used in various residential and commercial plumbing and heating applications.

• Easily transition between press and PEX systems
• Reduces installation time
• Replaces existing components effectively

Product Highlights

This fitting simplifies the connection process between different piping materials, ensuring a reliable and durable installation.

Product Information

Standard Information

• Material: Brass
• Connection Type: PEX Crimp x Copper Press

Technical Specifications

• Application: Plumbing, Heating
• Lead Free: Yes
• End Style: Press x F1807 PEX
• Fitting/Connector Type: Transition Fitting
• Method of Manufacture: Forged
• Nominal Size: 1 x 3/4 in
• Pressure Rating: 250 psi CWP
• Temperature Rating: 250 deg F
• Part Number: H-16804W-RX
• Model: PRS-X680W
• Type of Fitting: Coupling
• Nominal Pipe Size: 3/4 in x 1 in
• End Connection Type: PRS x F1807
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 018394021860
• Length: 1.97 in
• Width: 1.26 in
• Height: 1.26 in
