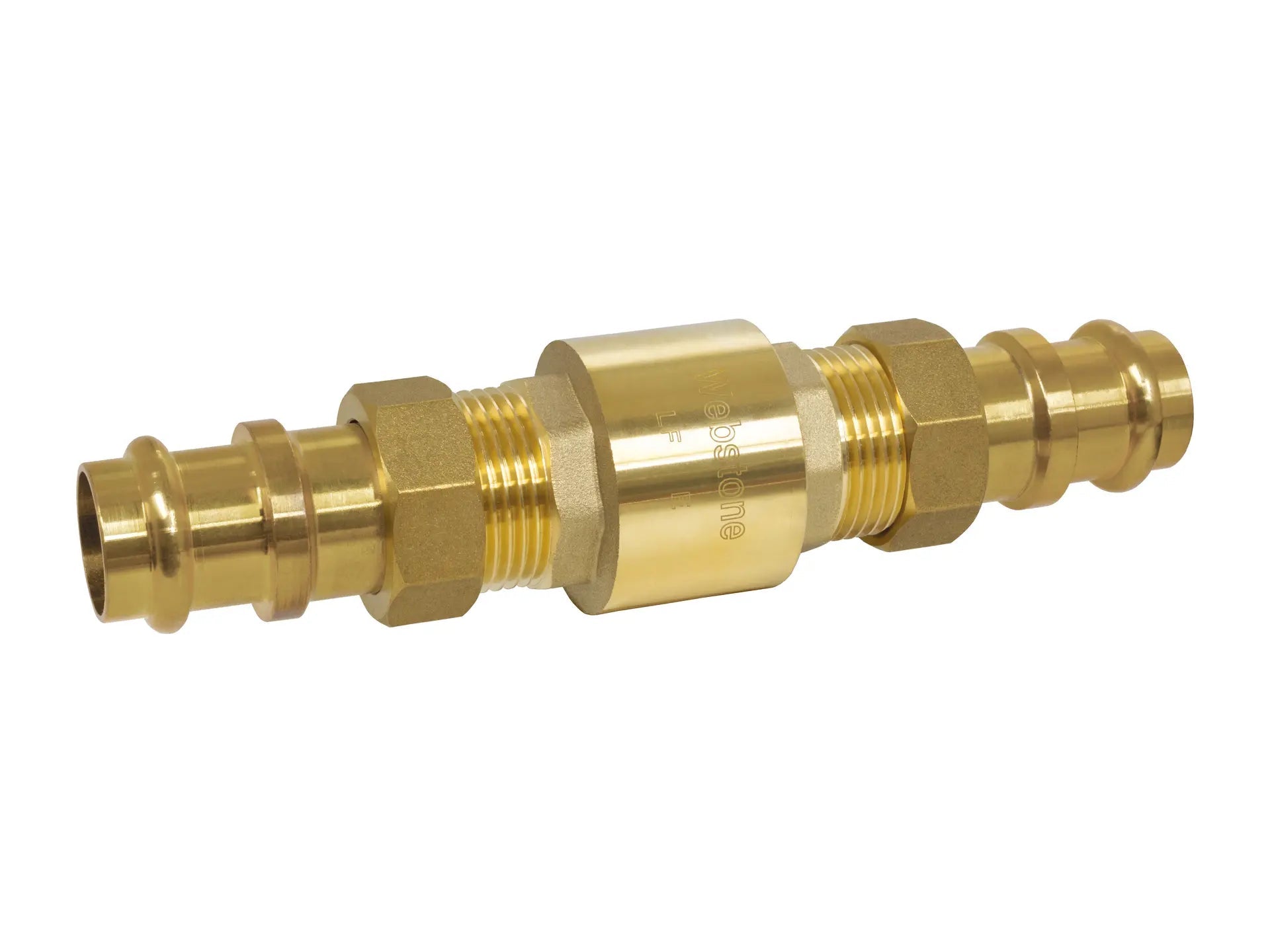

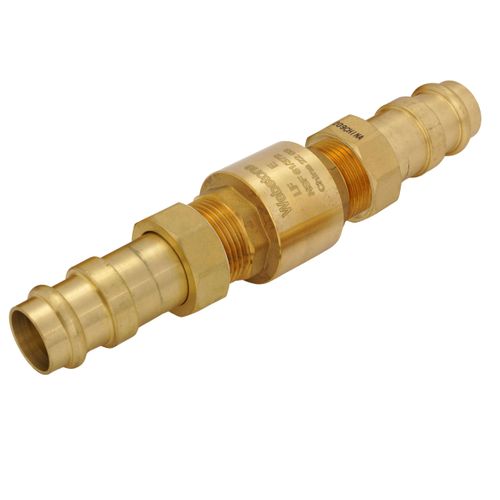

Webstone H-10885W 1-1/4 inches Press Forged DZR Brass In-Line Spring Loaded Check Valve With Dual Union Ends

Product Description

The WEBSTONE H-10885W is a 1-1/4" Press Forged DZR Brass In-Line Spring Loaded Check Valve with Dual Union Ends. This lead-free valve is designed to prevent backflow in plumbing and heating systems. It features a durable LF DZR brass construction and is suitable for use with water, oil, and glycol mix. With a maximum temperature of 200°F and a maximum pressure of 200 PSI, it ensures reliable performance in residential and commercial applications.

• Certified to NSF/ANSI 61 & 372 for potable water applications.
• Dual-union ends allow for easy removal and serviceability.
• Self-automated check assembly effectively prevents backflow.

Product Highlights

Prevents backflow in plumbing and heating systems, featuring a serviceable design with dual union ends and a stainless steel spring.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-10885W
• Country of Origin: China

Technical Specifications

• Nominal Pipe Size: 1-1/4"
• Material: LF DZR Brass
• Certifications: NSF 61, NSF 372
• Lead Free: Yes
• Maximum Temperature: 200°F
• Product Type: Check Valve
• Connection Type: Press x Press
• Flow Capacity (Cv): 20.5
• Maximum Pressure: 200 PSI
• Manufacturer: Webstone
• Part Number: H-10885W
• Model: PRS-108XW
• Old Material Number: 10885W
• System Use: Commercial Plumbing, Residential Plumbing, Heating
• Potable Water Compliance: LL Compliant NSF/ANSI 372
