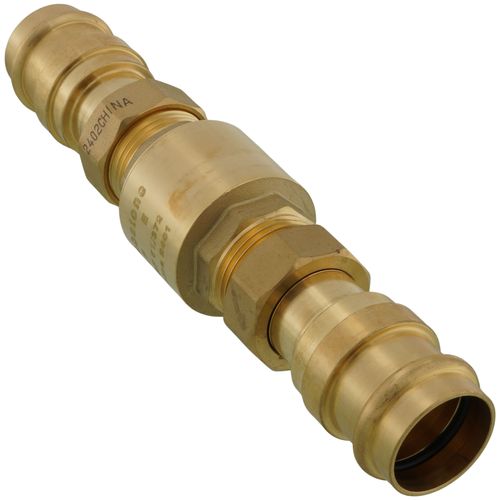

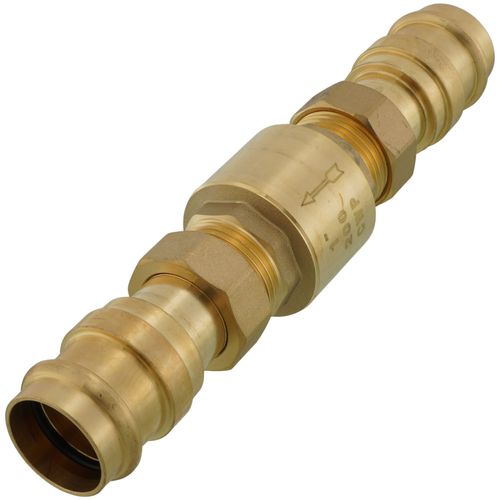

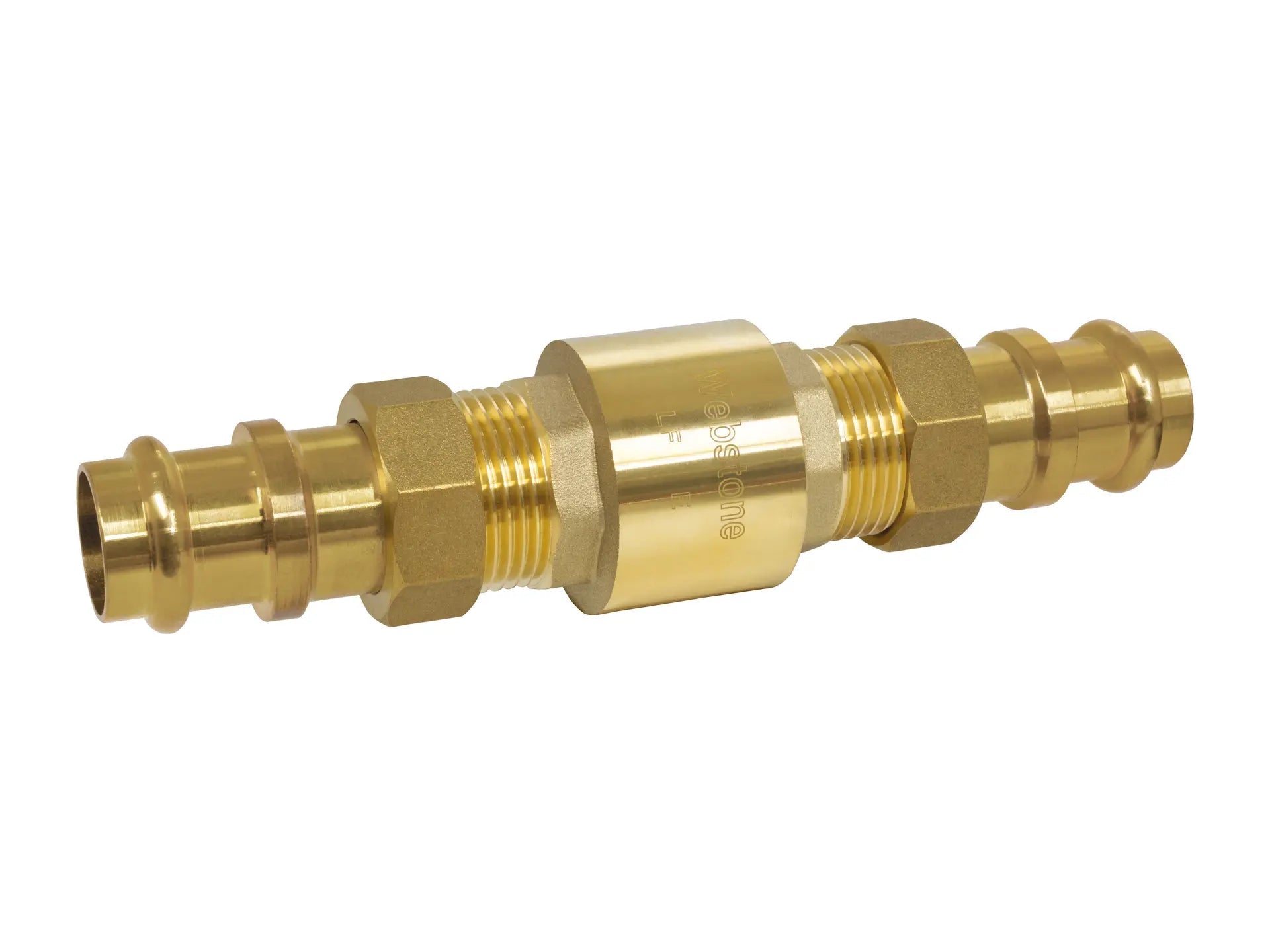

Webstone H-10884W Press Forged DZR Brass In-Line Spring Loaded Check Valve with Dual Union Ends 1 inches

Product Description

The WEBSTONE H-10884W is a 1-inch press forged DZR brass in-line spring loaded check valve with dual union ends, designed for lead-free applications. It features a serviceable design with a stainless steel spring and soft seat, preventing back-flow in plumbing and heating systems. This valve is suitable for residential and commercial use with water, oil, and glycol mixes, supporting press connections up to 200 PSI and 200°F.

• Certified to NSF/ANSI 61 & 372 for lead-free applications.
• Self-automated check assembly prevents back-flow.
• Dual-union ends allow easy removal for service and maintenance.

Product Highlights

Designed for residential and commercial plumbing and heating systems.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-10884W
• Country of Origin: China

Technical Specifications

• Size: 1"
• Material: Lead-Free DZR Forged Brass
• Max Temp (F): 200°F Max
• Product Type: Spring Check Valve
• Connection Type: Press x Press
• Connection Method: Press
• Flow Capacity (Cv): 8.7
• Max Pressure (PSI): 200 PSI CWP Max
• Standards Met: NSF 61, NSF 372
• Lead Free: Yes
• Model: PRS-108XW
• System Use: Commercial Plumbing, Residential Plumbing, Heating
