Webstone H-10813W Forged DZR Brass In-Line Spring Loaded Check Valve 3/4 inches F1807 PEX

Product Description

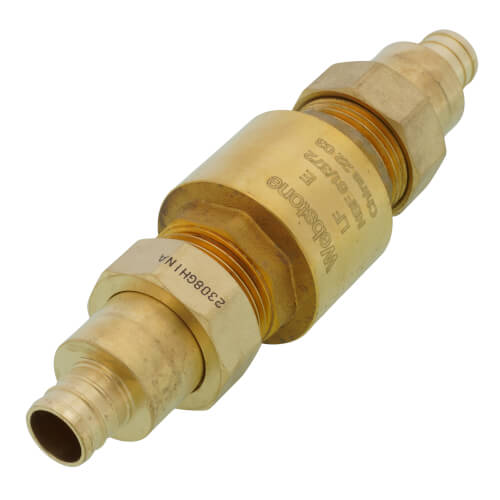

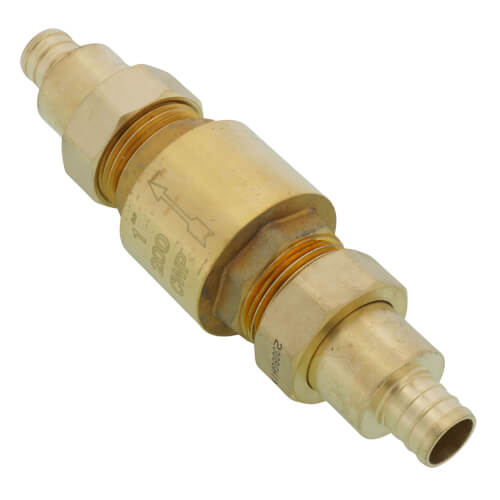

The WEBSTONE H-10813W is a forged DZR brass in-line spring loaded check valve with a stainless steel spring and soft seat. Designed for use with water, oil, and glycol mix in residential or commercial plumbing and heating systems. It features dual union ends for easy removal and a self-automated check assembly to prevent back-flow.

• Brass Material
• Lead Free
• Check Valve

Product Highlights

This Webstone valve easily controls flow and is compatible with a full range of G-Union accessories. Certified to NSF/ANSI 61 & 372.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-10813W
• Country of Origin: CN

Technical Specifications

• Size: 3/4"
• Material: Brass
• Approvals: NSF372, NSF61
• Lead Free: Yes
• Max Temp (F): 200
• Product Type: Check Valve
• Connection Type: PEX Crimp x PEX Crimp
• Connection Method: PEX Crimp
• Flow Capacity (Cv): 8.7
• Max Pressure (PSI): 200
• Standards Met: NSF 61, NSF 372
• Manufacturer: Webstone
• Part Number: H-10813W
• Model: PEX-108XW
• Old Material Number: 10813W
• Nominal Pipe Size: 1/2"
• Nominal Size 1: 3/4"
• Nominal Size 2: 3/4"
• Applications: Lead-Free
• End Connection Type: F1807 PEX
• End Connection: PEX
• System Use: Commercial Plumbing, Residential Plumbing, Heating
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 3.37"
• Width: 1.8"
• Height: 1.8"
• Application: Commercial & Residential Plumbing, Heating
• Connection Size: 3/4"
• Pressure Rating: 200 PSI CWP Max
• Temperature Rating (Max): 200 F Max
• Type: Spring Check Valve
