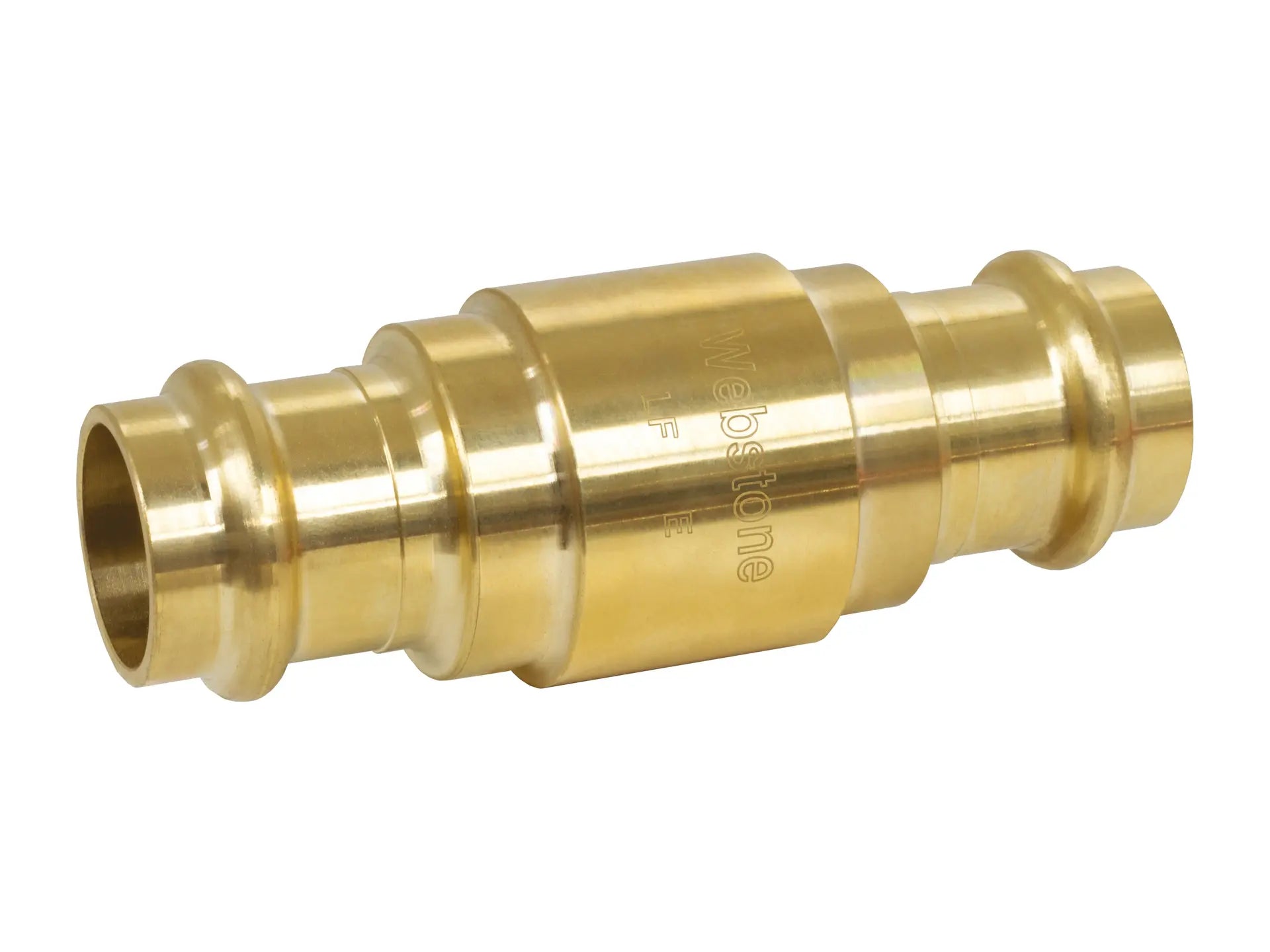

Webstone H-10747W Forged DZR Brass In-Line Spring Check Valve 2 Inch

Product Description

The WEBSTONE H-10747W is a forged DZR brass in-line spring check valve designed for reliable flow control in plumbing and heating systems. It features a durable stainless steel spring and a soft FKM seat, ensuring efficient and leak-free operation. This valve is certified to NSF/ANSI 61 & 372 and is lead-free, making it suitable for various applications including water, oil, and glycol mixes. With a 2 inch nominal pipe size and FIP connection type, it handles pressures up to 200 CWP and temperatures up to 250 °F.

• Forged DZR Brass construction for durability and corrosion resistance.
• Features a stainless steel spring and soft FKM seat for efficient, leak-free operation.
• Certified to NSF/ANSI 61 & 372 and lead-free for potable water applications.

Product Highlights

This WEBSTONE H-10747W check valve offers robust flow control with lead-free DZR brass construction, stainless steel spring, and FKM seat, ideal for residential and commercial plumbing.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-10747W
• Country of Origin: CN

Technical Specifications

• Industry Standards/Certifications: Certified to NSF/ANSI 61 & 372, Lead Free
• Type: Check Valve
• Connection Type: FIP
• Nominal Pipe Size: 2 inch
• Pressure Rating: 200 CWP
• Max. Temperature: 250 °F
• Cv Coefficient: 34.50
• Cracking Pressure: 0.15 psi
• Body Material: Brass
• Stem Material: Brass
• Spring Material: Stainless Steel
• Gasket Material: FKM
• End Cap Material: Brass
• Series: H-107X
