Webstone h-10745w forged dzr brass in-line spring check valve 1 1/4 fip 1074w

Product Description

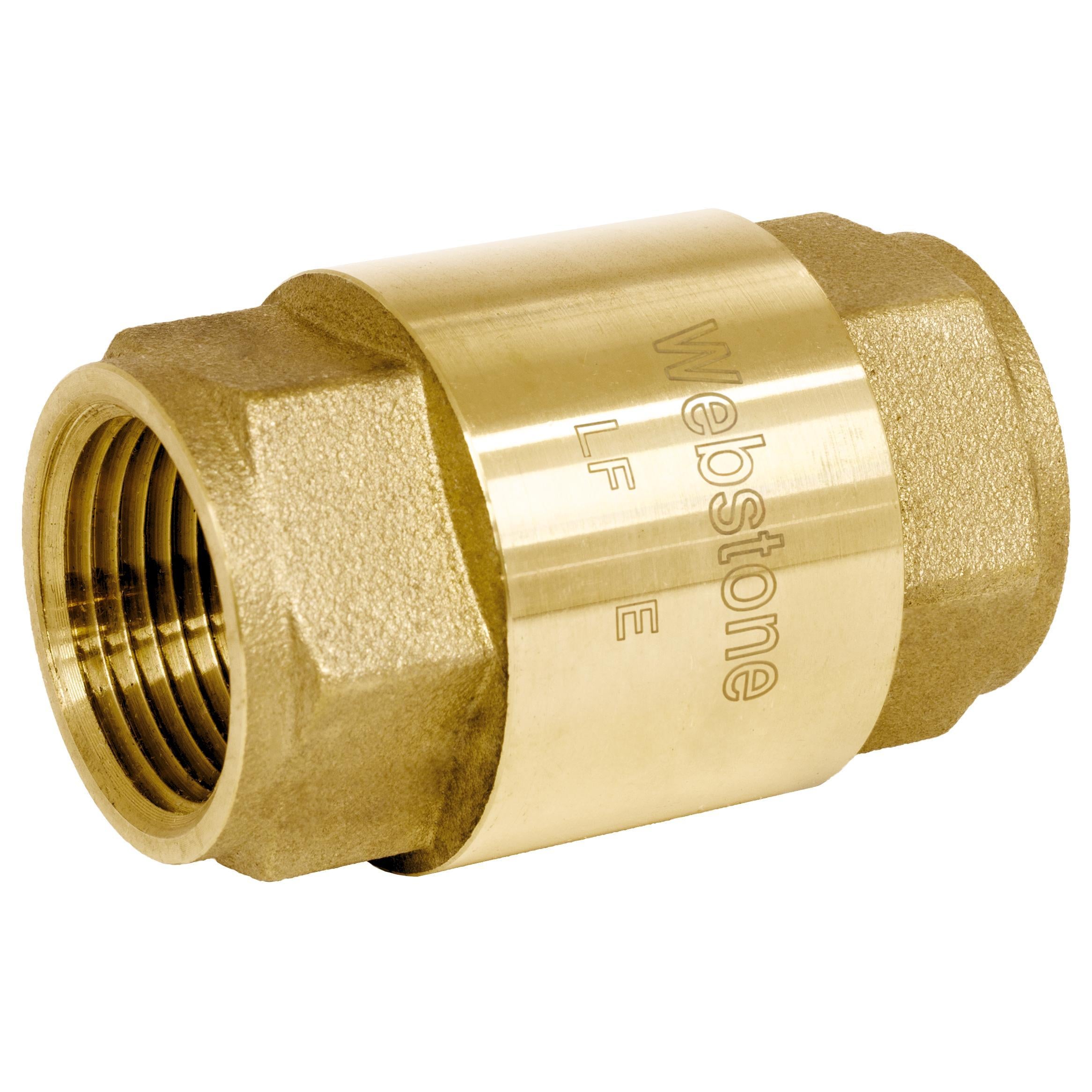

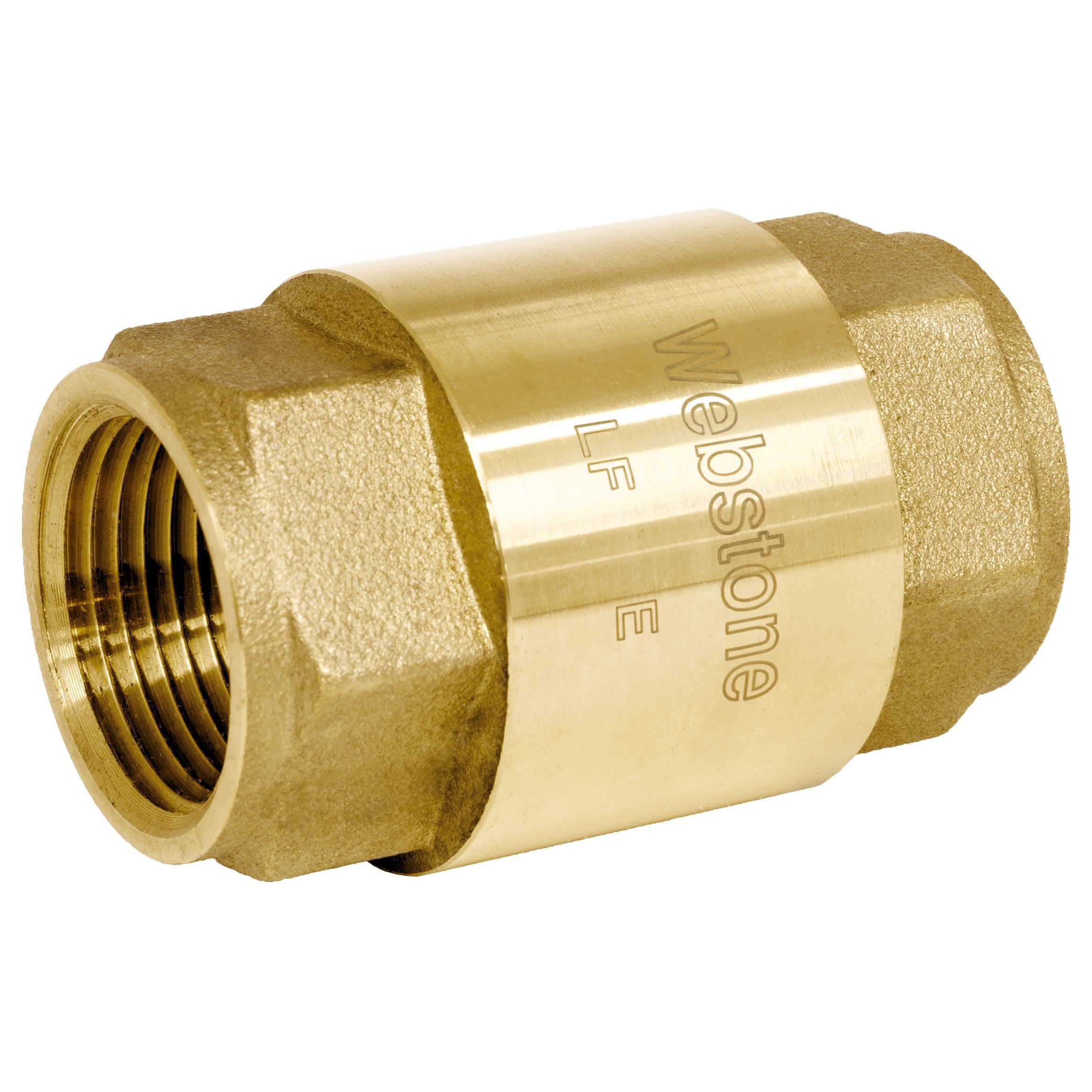

The WEBSTONE H-10745W is a Forged DZR Brass In-Line Spring Check Valve designed to prevent backflow in plumbing and heating systems. It features a stainless steel spring and a soft FKM seat, ensuring reliable operation. This valve is suitable for use with water, oil, and glycol mixes in both residential and commercial applications. Certified to NSF/ANSI 61 & 372, it offers a 200 CWP pressure rating and a maximum temperature of 250 °F, making it a versatile component for flow control.

• Forged DZR Brass In-Line Spring Check Valve construction.
• Equipped with a stainless steel spring and soft FKM seat.
• Certified to NSF/ANSI 61 & 372 and Lead Free.

Product Highlights

Durable DZR brass check valve with FKM soft seat for reliable backflow prevention in plumbing and heating.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-10745W
• Country of Origin: Import

Technical Specifications

• Industry Standards/Certifications: Certified to NSF/ANSI 61 & 372, Lead Free
• Type: Check Valve
• Connection Type: FIP
• Valve Size: 1 1/4
• Pressure Rating: 200 CWP
• Max. Temperature: 250 °F
• Cv Coefficient: 14.90
• Cracking Pressure: 0.40 psi
• Body Material: Forged DZR Brass
• Stem Material: Brass
• Spring Material: Stainless Steel
• Gasket Material: FKM
• End Cap Material: Brass
• Actuator Type: Spring
• Media: Gas/Oil/Water
• Series: 1074W
• Trim Material: Brass/Stainless Steel
• Model: THD-107XW
• UPC Code: 018394015470
