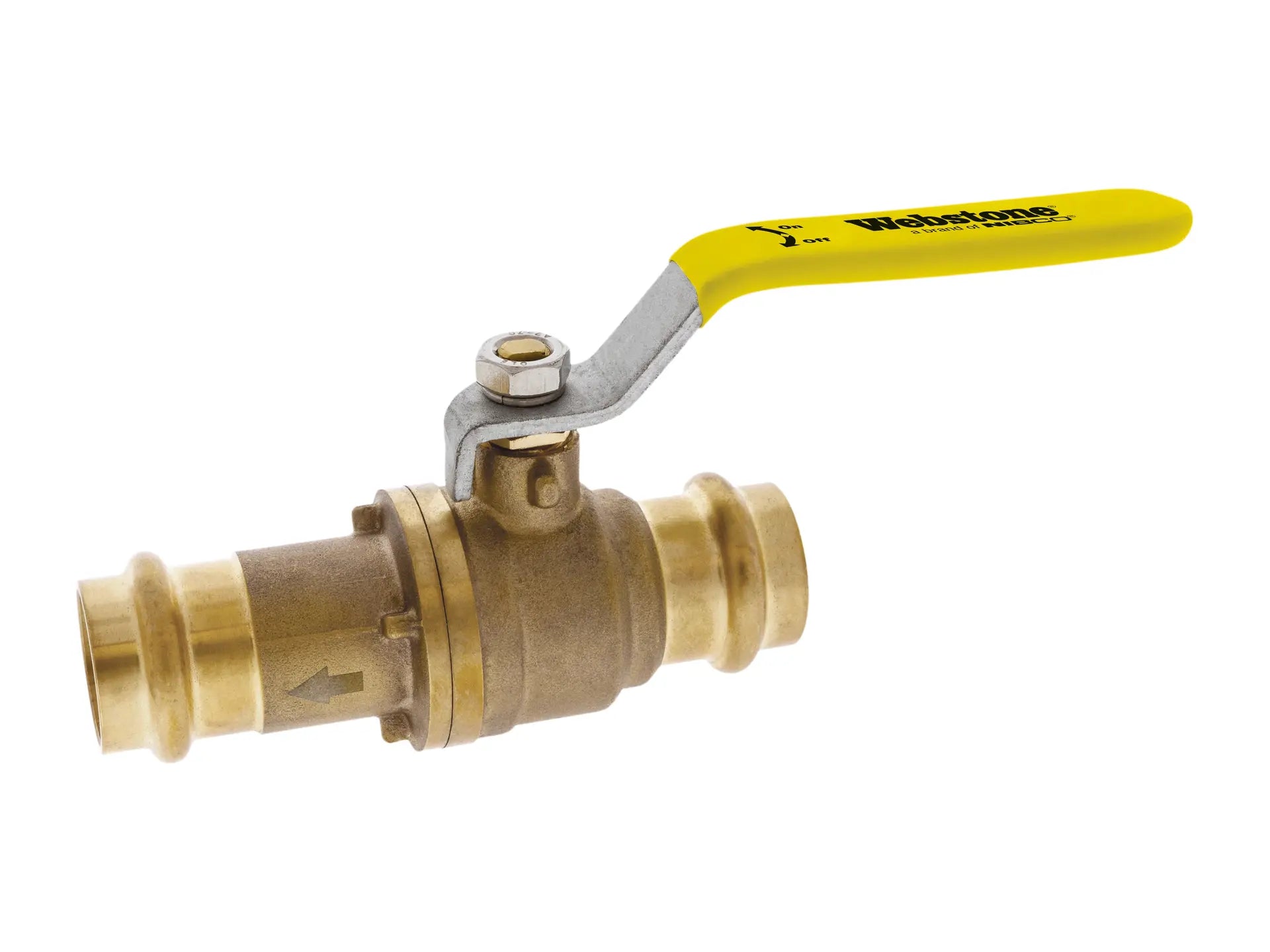

Webstone Company H-80693W Pro-Pal Ball Check Valve

Product Description

The WEBSTONE COMPANY H-80693W Pro-Pal ball check is a forged DZR brass valve with an integrated spring check valve, reversible handle, and dual stem seal design. This Webstone valve is designed to easily control flow and is ideal for recirculation loops. It is designed for use with water, oil, and glycol mix in residential or commercial plumbing and heating systems.

• Ball valve with integral spring check saves labor, space, and leak paths
• Reversible handle for additional flexibility
• Dual stem seal design for added protection

Product Highlights

This valve is actuated by a blowout proof stem and is certified to NSF/ANSI 61 & 372. Models are available to satisfy all state and federal low-lead laws.

Product Information

Standard Information

• Brand: WEBSTONE COMPANY
• Manufacturer Part Number: H-80693W
• Country of Origin: CN

Technical Specifications

• Manufacturer: Webstone
• Part Number: H-80693W
• Model: PRS-X069W
• Nominal Pipe Size: 3/4"
• Nominal Size 1: 3/4"
• Nominal Size 2: 3/4"
• Applications: Lead-Free
• Material: LF DZR Brass
• End Connection Type: Press
• End Connection: Press
• System Use: Commercial Plumbing, Heating, Residential Plumbing
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 7.48"
• Width: 2.68"
• Height: 1.57"
