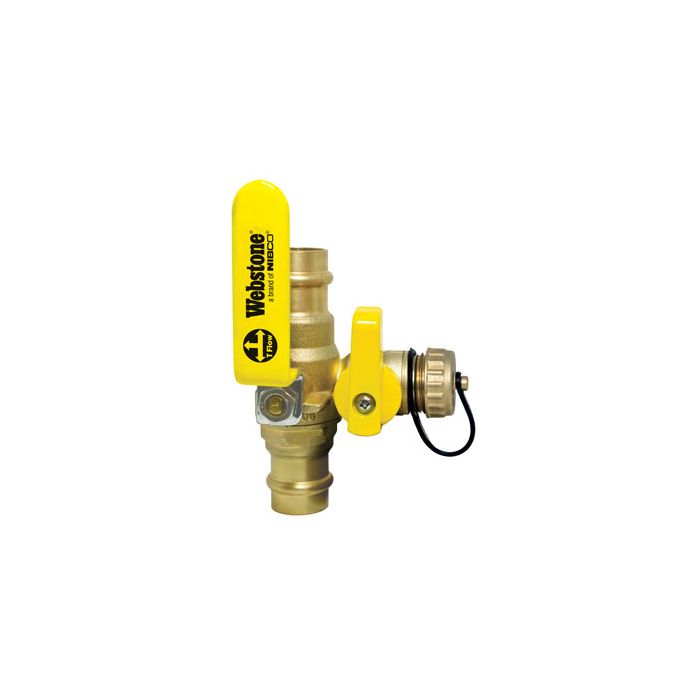

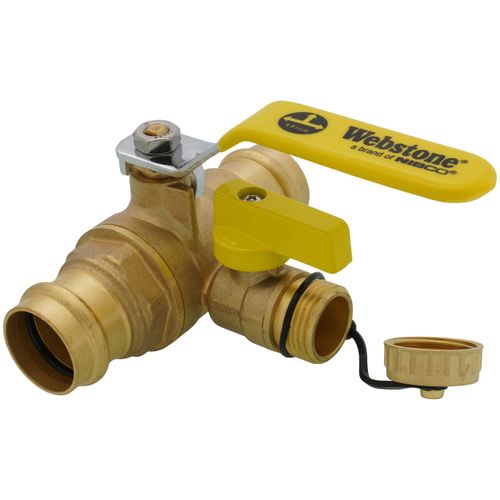

Webstone Company H-80614 1 inch Press Full Port Ball Valve with Drain & Reversible Handle

Product Description

The Webstone Company H-80614 is a 1 inch press full port ball valve with a drain and reversible handle. Designed for use with water, oil, or gas in residential, commercial, or industrial applications. Features a blow-out proof stem and an adjustable packing gland. The valve is actuated by a reversible handle.

• Hi-Flow Hose Drain
• Adjustable Packing Gland
• Reversible Handle

Product Highlights

Full port forged brass ball valve with press connections compatible with popular press tools. Ideal for isolating and draining portions of piped systems.

Product Information

Standard Information

• Brand: WEBSTONE COMPANY
• Manufacturer Part Number: H-80614
• Country of Origin: United States

Technical Specifications

• Size: 1"
• Features: Hose Drain
• Connection Method: Press
• Connection Type: Press x Press
• Material: Brass
• Handle Style: Lever
• Lead Free: No
• Port Type: Full Port
• MPN: H-80614
• Manufacturer Part Number: H-80614
• UPC / GTIN: 018394008724
• Manufacturer: Webstone
• Type: Ball Valve
• Brand: Webstone
• Product Type: Ball Valve
• Country of Origin: United States
• Series: Pro-Pal® 8061W
• Nominal Size: 1 Inch x 1 Inch
• Pressure Rating: 250 psi CWP
• Temperature Rating: 250 deg F
• Media: Gas/Oil/Water
• Actuator Type: Reversible Handle
• Inlet to Outlet Length: 4-13/16 in
• Ball Material: Chrome Plated Brass
• Top to Inlet Center: 2-5/8 in
• Trim Material: Brass Stem and PTFE Seat
• Body Material: Forged Brass
• Softgoods Material: PTFE/EPDM
• End Style: PRESS
• Actuation Type: Reversible Handle
• Applicable Standard: NSF/ANSI 14, IAPMO/ANSI Z1157, UPC
• Application: Residential, Commercial, Industrial
• End Connection: Press x Press
• End to End Distance: 4.81 Inch
• Handle Material: Hard Chrome Plated Brass
• Inclusions/Features: Hi-Flow Hose Drain, Adjustable Packing Gland, Reversible Handle, Patented Technology
• Seal Material: PTFE
• Seat Material: PTFE
• Stem Material: Brass
