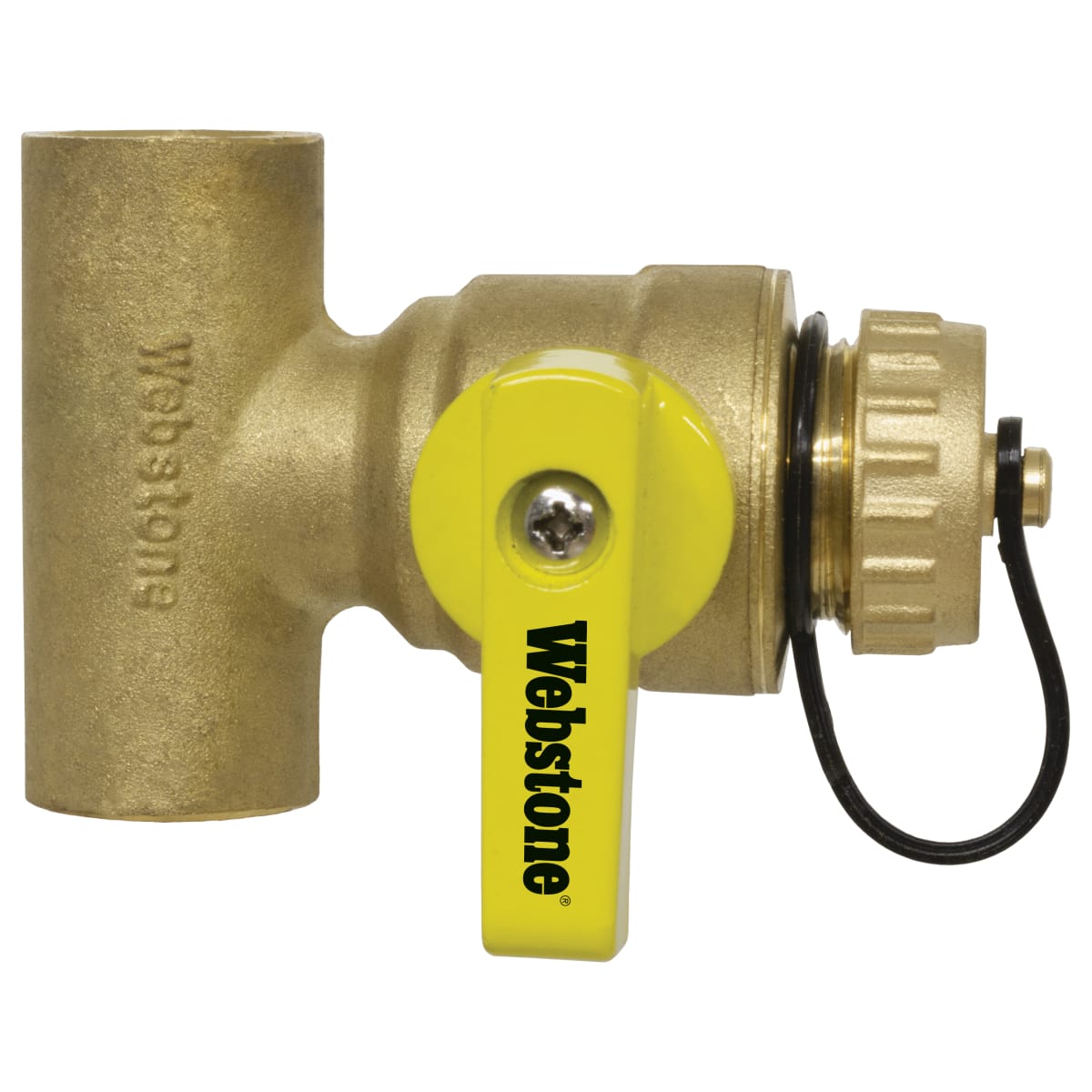

Webstone Company H-50675W 1 1/4 Cxc Lf T-Drain

Product Description

The WEBSTONE COMPANY H-50675W 1 1/4 CXC LF T-DRAIN is designed for residential, commercial, or industrial use with water, oil, or gas. This Pro-Pal T-Drain features a full port forged brass fitting with a hi-flow hose drain and adjustable packing gland. It is certified to NSF/ANSI/CAN 61 & 372 and has a pressure rating of 600 PSI.

• Install Anywhere a Drain or Purge Valve is Required
• Hi-Flow Alternative for Filling, Draining or Venting Closed-Loop Hydronic Systems
• Saves 9 Minutes

Product Highlights

This T-Drain replaces 2 components, eliminates 1 leak path, and saves time and space in any installation.

Product Information

Standard Information

• Brand: WEBSTONE COMPANY
• Manufacturer Part Number: H-50675W
• Country of Origin: Import

Technical Specifications

• Size: 1 1/4 in. x 1 1/4 in
• Material: Brass
• Connection Type: C x C x Male Hose
• Pressure Rating: 600 PSI
• Max Temp: 350ºF Max
• End Style: C
• Nominal Size: 1-1/4 in
• Method of Manufacture: Forged
• Series: Pro-Pal® 5067
• Temperature Rating: 100 deg F
