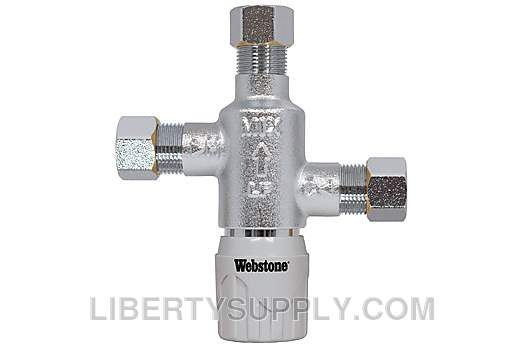

Webstone CMP-7720W 3/8 Compression Thermostatic Mixing Valve

Product Description

The Webstone CMP-7720W is a thermostatic mixing valve made from chrome-plated forged DZR brass. This valve features integral check valves and is factory preset to one hundred twenty degrees Fahrenheit. It is suitable for point-of-use applications in both residential and commercial plumbing systems utilizing water. The valve allows for an outlet temperature range of ninety-five degrees Fahrenheit to one hundred twenty degrees Fahrenheit.

• Constructed from chrome-plated forged DZR brass
• Features integral check valves
• Designed for point-of-use applications

Product Highlights

Valuable for controlling water temperature, this mixing valve enhances safety and comfort in plumbing systems.

Product Information

Standard Information

• Manufacturer: Webstone
• Part Number: CMP-7720W

Technical Specifications

• Nominal Pipe Size: 3/8
• End Connection Type: Compression
• Material: LF DZR Brass
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 018394015197
• Length: 4 inches
• Width: 3 inches
• Height: 1.5 inches
• Country of Origin: CN
