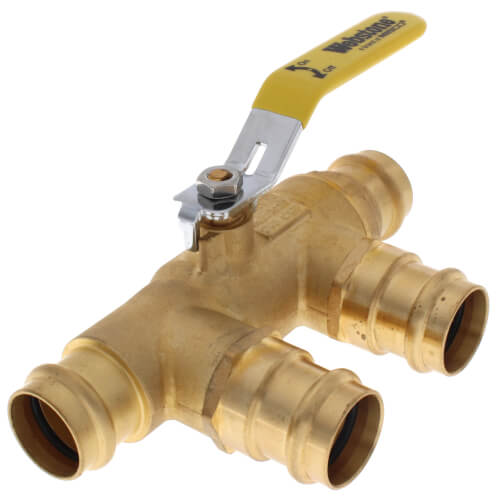

Webstone 88644 1 x 1 Press Full Port Brass Ball Valve w/ Reversible Handle Purge Tee

Product Description

The Webstone 88644 is a 1 x 1 Press Full Port Brass Ball Valve with a reversible handle designed for primary and secondary loop purge tee applications. This valve allows for improved placement between closely spaced tees, facilitating easier installation and maintenance. Its precision crafting ensures effective hydraulic separation, making it ideal for primary and secondary piping in mod-con boiler systems.

• Allows placement between closely spaced tees
• Precision crafting for effective hydraulic separation
• Ideal for mod-con boiler systems

Product Highlights

The Webstone 88644 ball valve is constructed from brass and features a lever handle style for user-friendly operation. It supports press x press connections and can handle a maximum temperature of two hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Webstone
• MPN: 88644

Technical Specifications

• Size: 1 x 1
• Material: Brass
• Pressure Rating: 600 psi
• Max Temperature: 250°F
• Port Type: Full Port
• Connection Type: Press x Press
• Application: Plumbing
• Shipping Dimensions: 9.25 inches (Depth) x 5.3 inches (Width) x 4.9 inches (Height)
