Product Description

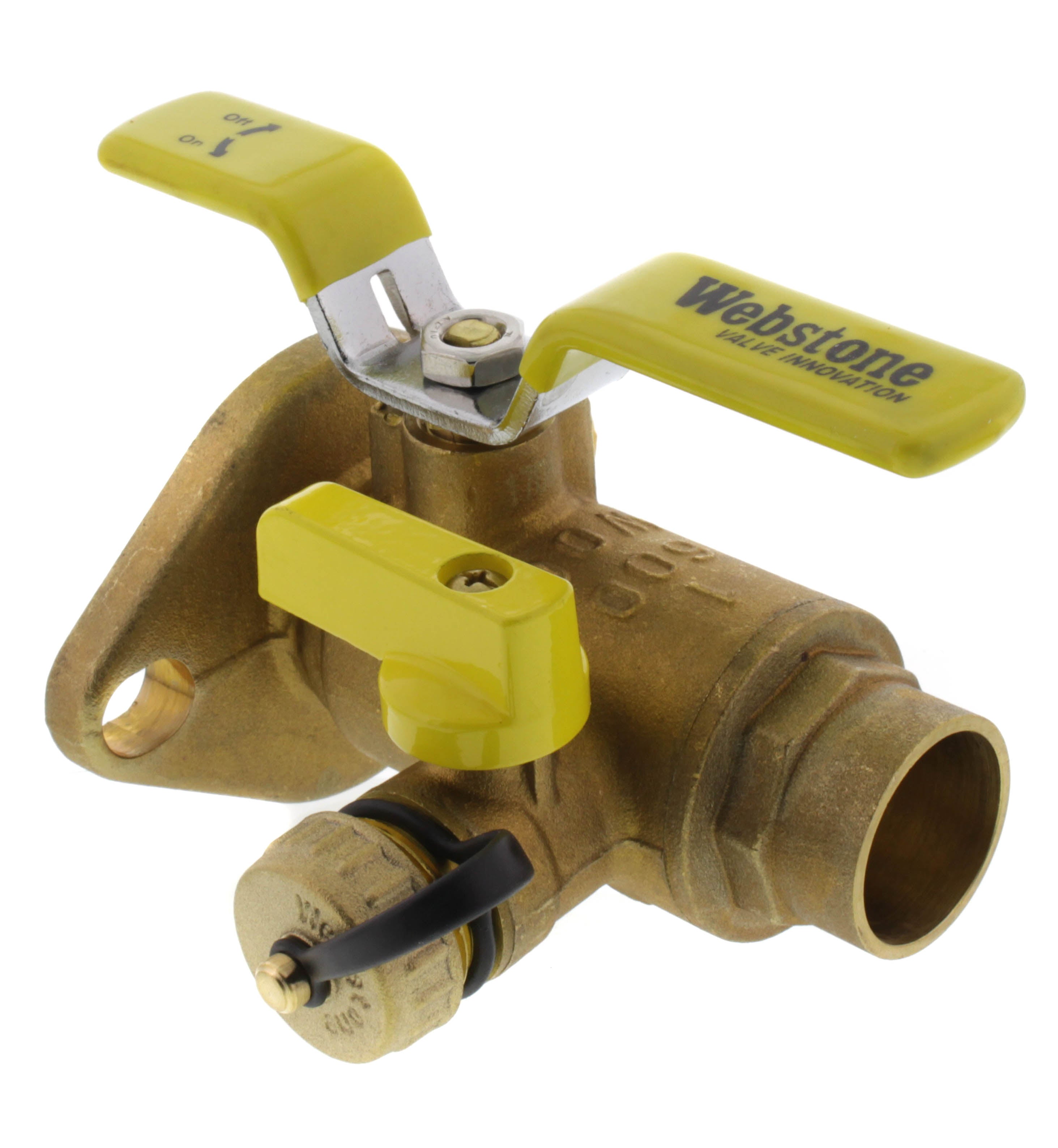

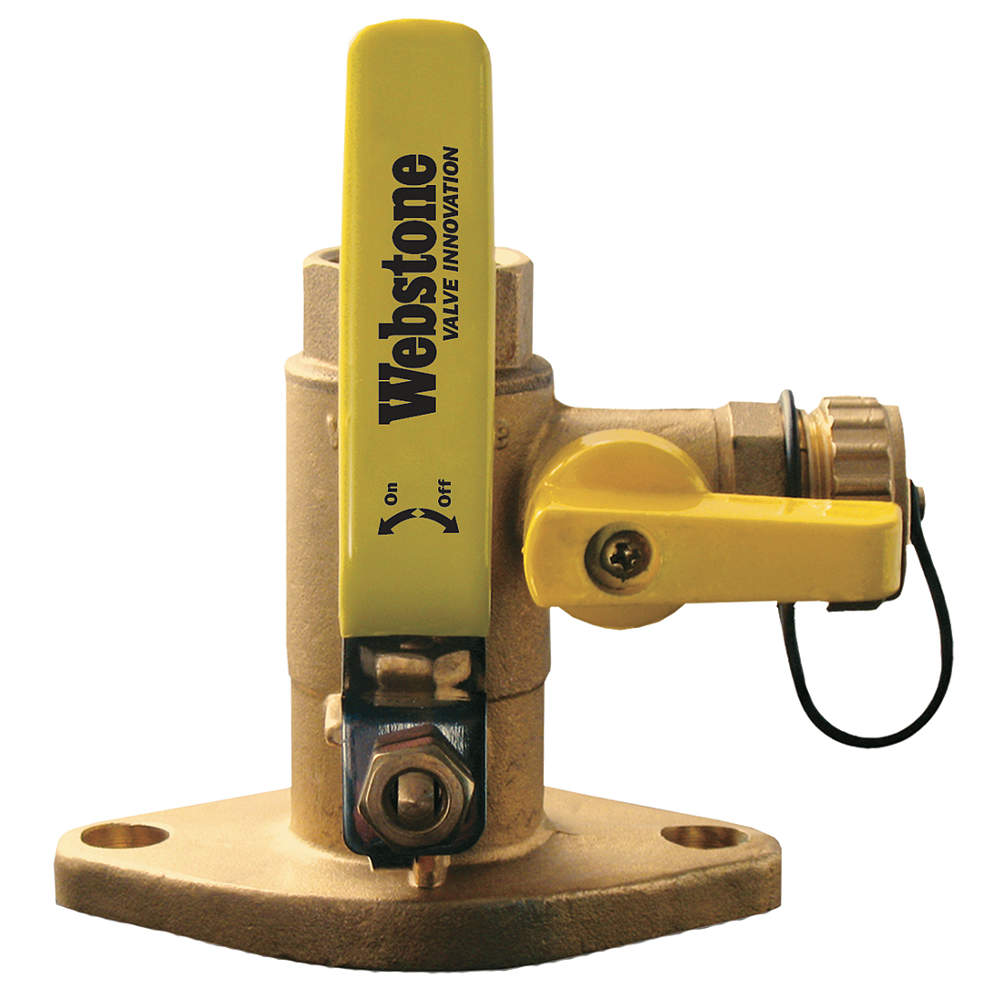

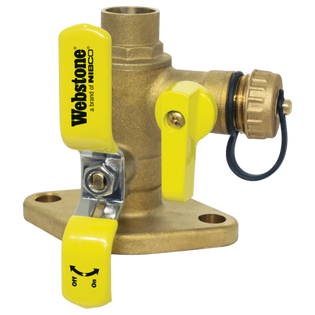

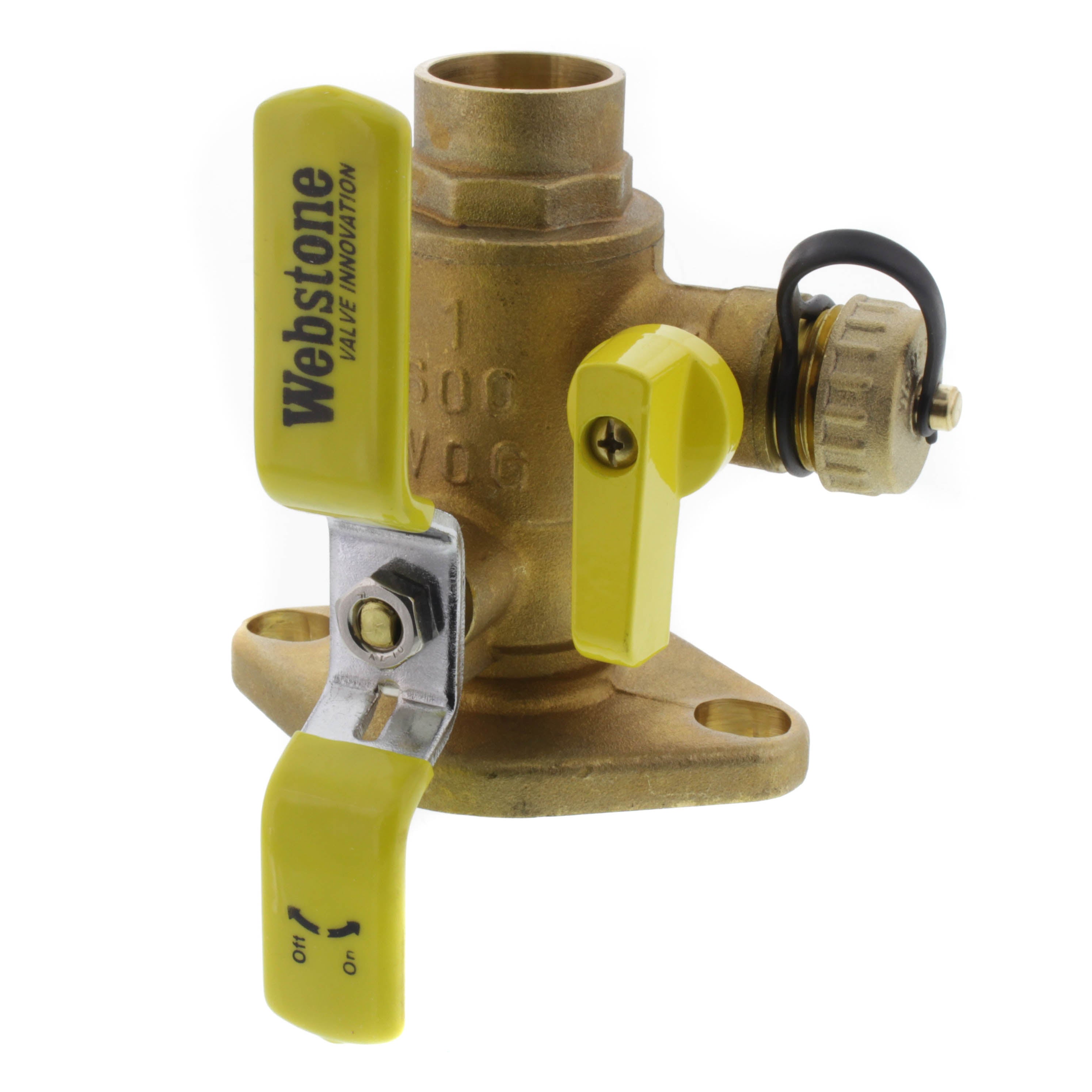

The WEBSTONE 50414HV 1" Sweat Isolator with Drain - High Velocity is designed for residential, commercial, or industrial use with water or a glycol mixture. This valve features a blow-out proof stem and an adjustable packing gland. It provides a secure connection between a circulator pump and a pipe.
- Full Port Forged Brass Uni-Flange Ball Valves w/ Hi-Flow Hose Drain
- Sweat x Flange connection
- 600 WOG
Product Highlights
This Webstone isolator flange with drain fits both standard and high-velocity 2-bolt circulator pumps. It is a reliable plumbing accessory for residential and commercial use.
Product Information
Standard Information
-
Brand: WEBSTONE
-
Manufacturer Part Number: 50414HV
-
Country of Origin: CN
Technical Specifications
-
Connection Size: 1"
-
Connection Type: Sweat
-
Brand: Webstone
-
Size: 1"
-
Series: 5041 Series
-
Nominal Size: 1 in
-
Opening Size: 1 in
-
Operator Type: T-Handle
-
Pressure Rating: 600 lb/sq-in
-
Temperature Rating: 100 deg F
-
Material: Brass
-
Handle Material: Steel
-
Packing Material: Brass
-
Seal Material: PTFE
-
Seat Material: PTFE
-
Stem Material: Brass
-
Trim Material: Brass
-
Dimensions: 4-1/2 in L
-
Body Material: Forged Brass
-
End Style: C x Flanged
-
Port Type: Full
-
Softgoods Material: PTFE
-
Ball Material: HCP Brass
-
Inlet to Outlet Length: 4-1/2
-
Media: Water/Glycol Mixture
-
Top to Inlet Center: 2-3/8
-
Item: Flanged Ball Valve w/Drain
-
Ball Port Style: Full Port
-
Ball Valve Basic Body Material: Brass
-
Ball Valve Product Group: Manual
-
Bypass Cap Material: Brass
-
Bypass Connection: FIP
-
Bypass Connection Gender: Female
-
Bypass Connection Size: 3/4"
-
Bypass Connection Type: IPS
-
Compatible Pipe Size: 1"
-
Compatible With Brand: Nibco
-
Compatible With Series: 5041 Series
-
Connections: Flange x Sweat
-
Fits Pump: Any Standard Flanged Pump
-
Flange Material: Brass
-
For Media: Water/Glycol Mixture
-
Handle Type: Lever
-

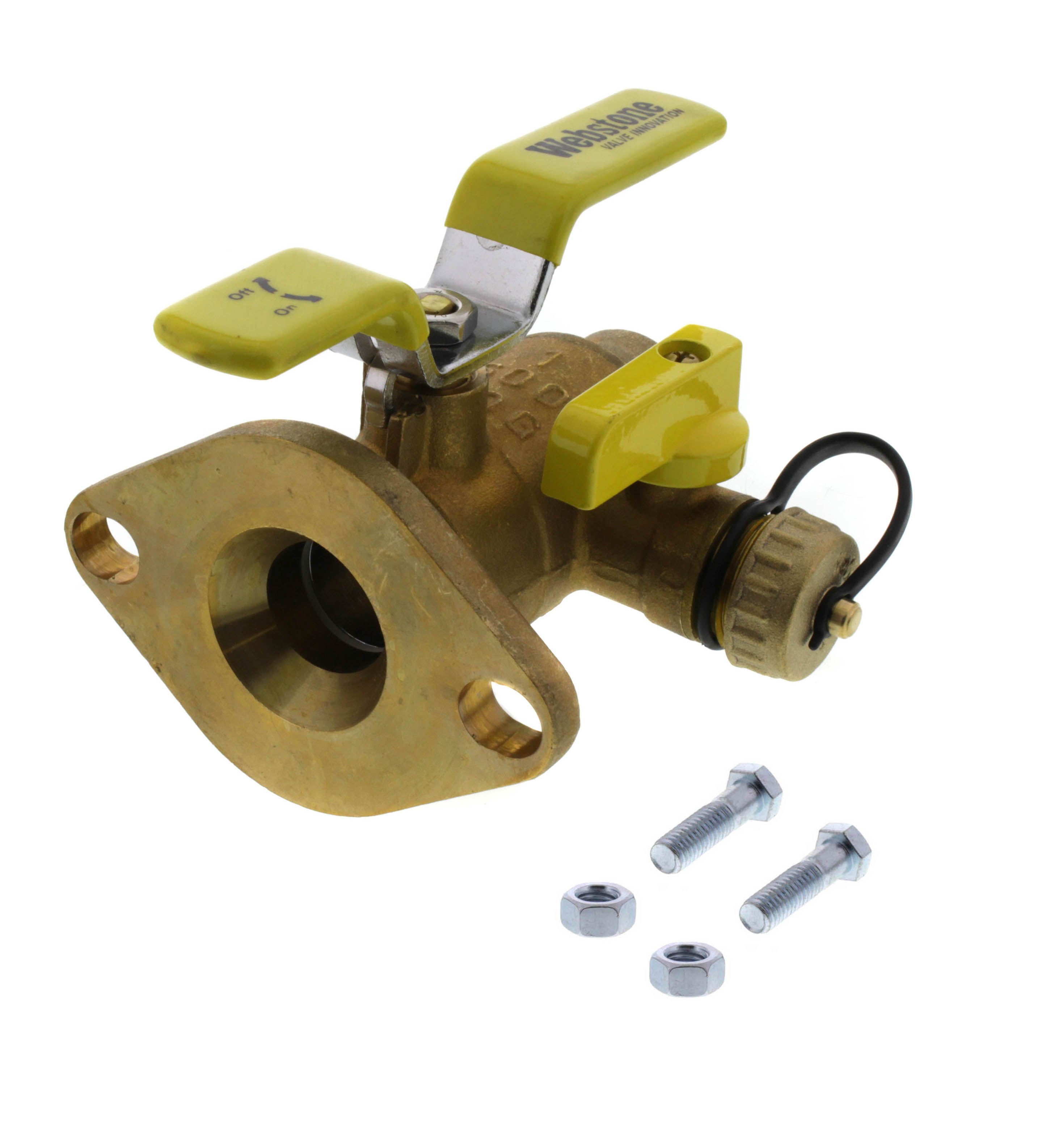

Includes: Adjustable Packing Glands, Bolts, Nuts
-
Max. Media Temperature: 350°F
-
Max. Operating Pressure: 600 psi
-
Max. Operating Temp.: 250°
-
Max. Pressure: 600 psi
-
Media Temp. Range: -20°F to +350°F
-
Min. Media Temperature: -20°F
-
Nominal Valve Size: 1"
-
Outlet Connection Gender - Side 1: Female
-
Outlet Connection Gender - Side 2: Female
-
Outlet Connection Size - Side 1: 1"
-
Outlet Connection Size - Side 2: 1"
-
Outlet Connection Type - Side 1: Flange
-
Outlet Connection Type - Side 2: Sweat
-
Overall Length: 4.5"
-
Pipe Size: 1 SWT
-
Screen Material: Not Applicable
-
Valve Design: Uni Flange
-
Valve Series: H-X041 Series
-
Valve Type: Three Way Ball
-
standard: NSF/ANSI 61
-
MPN: H-50414HV
-
Type: Ball Valve
-
Item Length: 10
-
Item Width: 10
-
Item Height: 10
-
Model: H-50414HV
-
Compatible Model: H-50414HV
-
Manufacturer Part Number: H-50414HV
-
UPC: 018394594142
-
Country of Origin: China
