Product Description

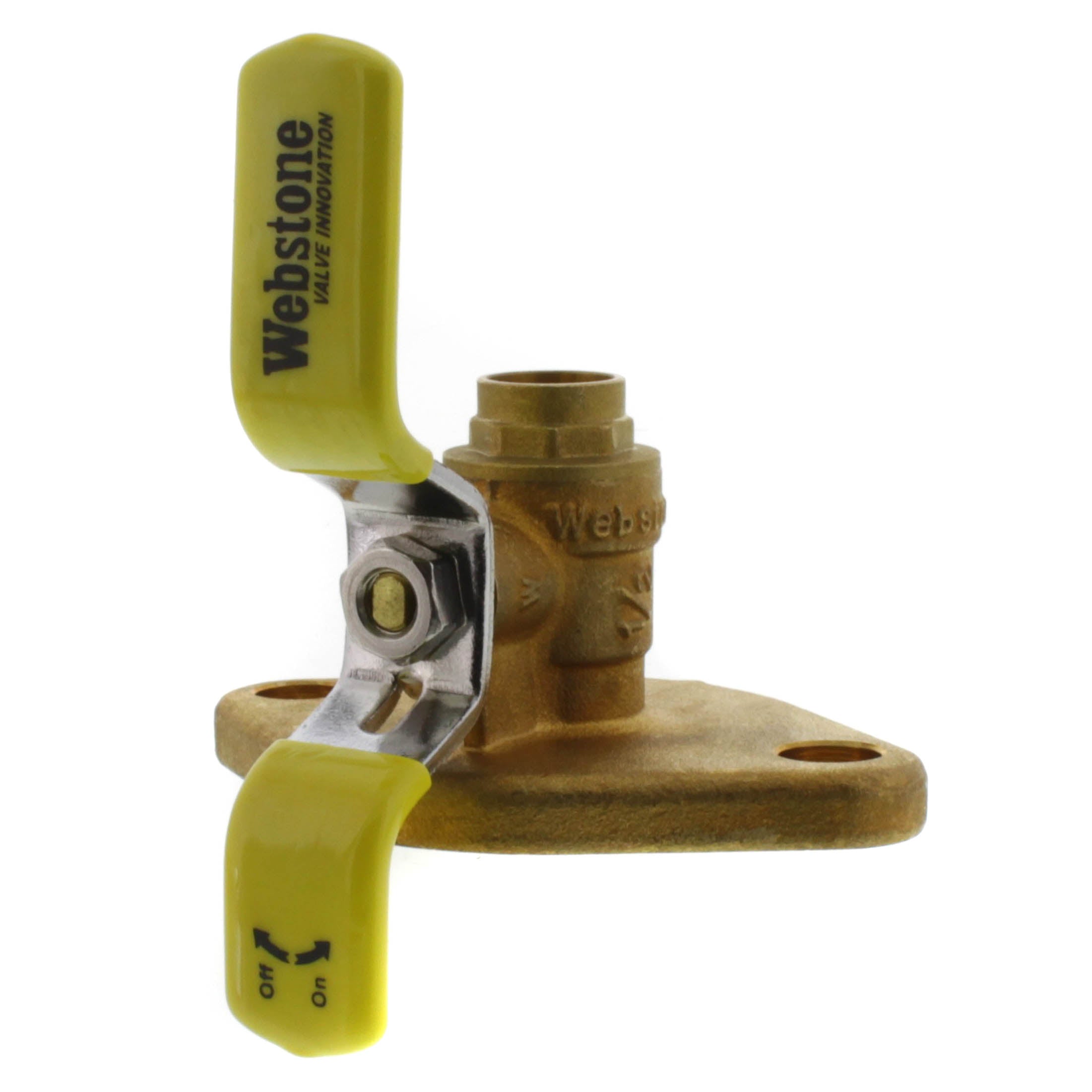

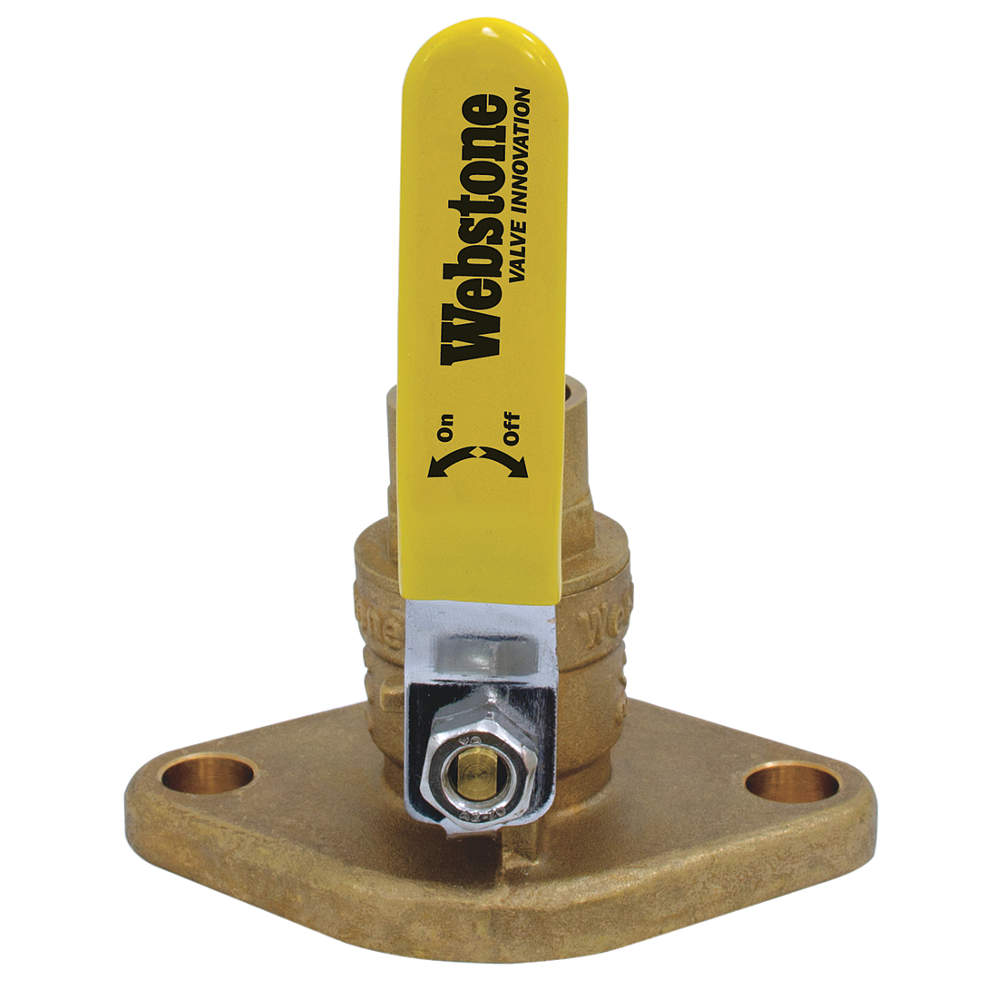

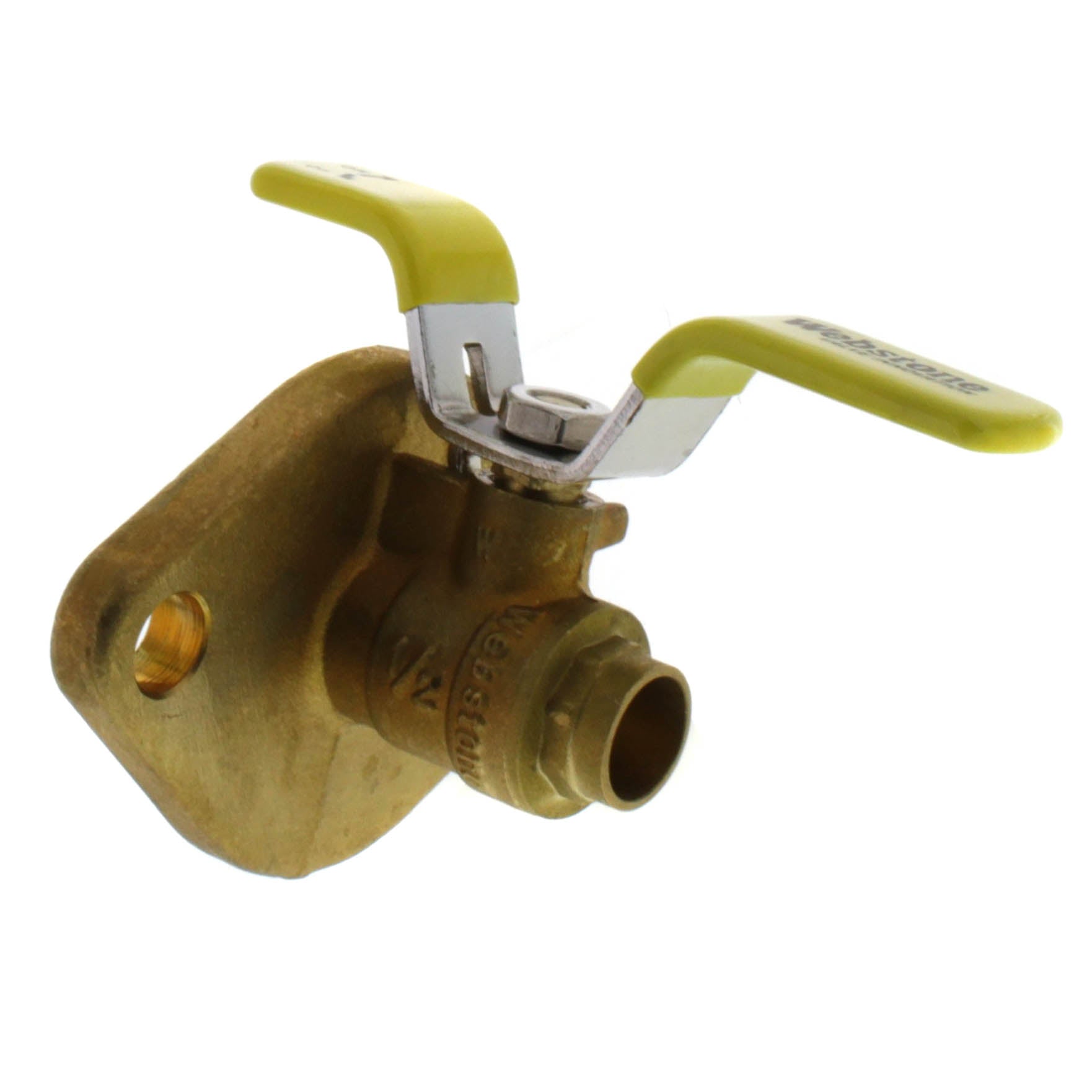

The Webstone 50402 1/2" Sweat Isolator Flange is designed for residential and commercial use with all 2 bolt flanged circulator pumps. The forged brass body and flange provide strength and versatility for any application where a pipe and flange meet. This valve features a solid hard chrome plated brass ball with reinforced Teflon seats.
- Isolation Flange
- Brass construction
- Used With 2 Bolt Flanged Circulator Pumps
Product Highlights
The Webstone Sweat Isolator Flange is a reliable plumbing accessory for residential and commercial use. It features an integrated sweat design for easy installation and superior corrosion-resistant construction
Product Information
Standard Information
-
Brand: WEBSTONE
-
Manufacturer Part Number: 50402
-
Country of Origin: CN
Technical Specifications
-
Type [Features]: Isolation Flange
-
Material [Features]: Brass
-
Used With [Features]: 2 Bolt Flanged Circulator Pumps
-
Connection Size [Features]: 1/2"
-
Connection Type [Features]: Sweat
-
Size: 1/2" x 1/2"
-
Brand: WEBSTONE
-
Part#: 50402
-
Item: Flanged Ball Valve
-
Ball Material: Brass
-
Ball Material Finish: Chrome Plated
-
Ball Port Style: Full Port
-
Ball Valve Basic Body Material: Brass
-
Ball Valve Product Group: Manual
-
Body Material: Brass
-
Compatible Pipe Size: 1/2"
-
Connection Gender - Side 1: Female
-
Connection Gender Side 2: Female
-
Connection Size - Side 1: 1/2"
-
Connection Size - Side 2: 1/2"
-
Connection Type - Side 1: Sweat
-
Connection Type - Side 2: Flange
-
Fits Pump: Any Standard Flanged Pump
-
Flange Material: Brass
-
For Media: Gas, Oil, Water
-
Handle: Lever
-
Handle Color: Yellow
-
Handle Height: 1 22/25"
-
Handle Material: Chrome Plated Steel
-

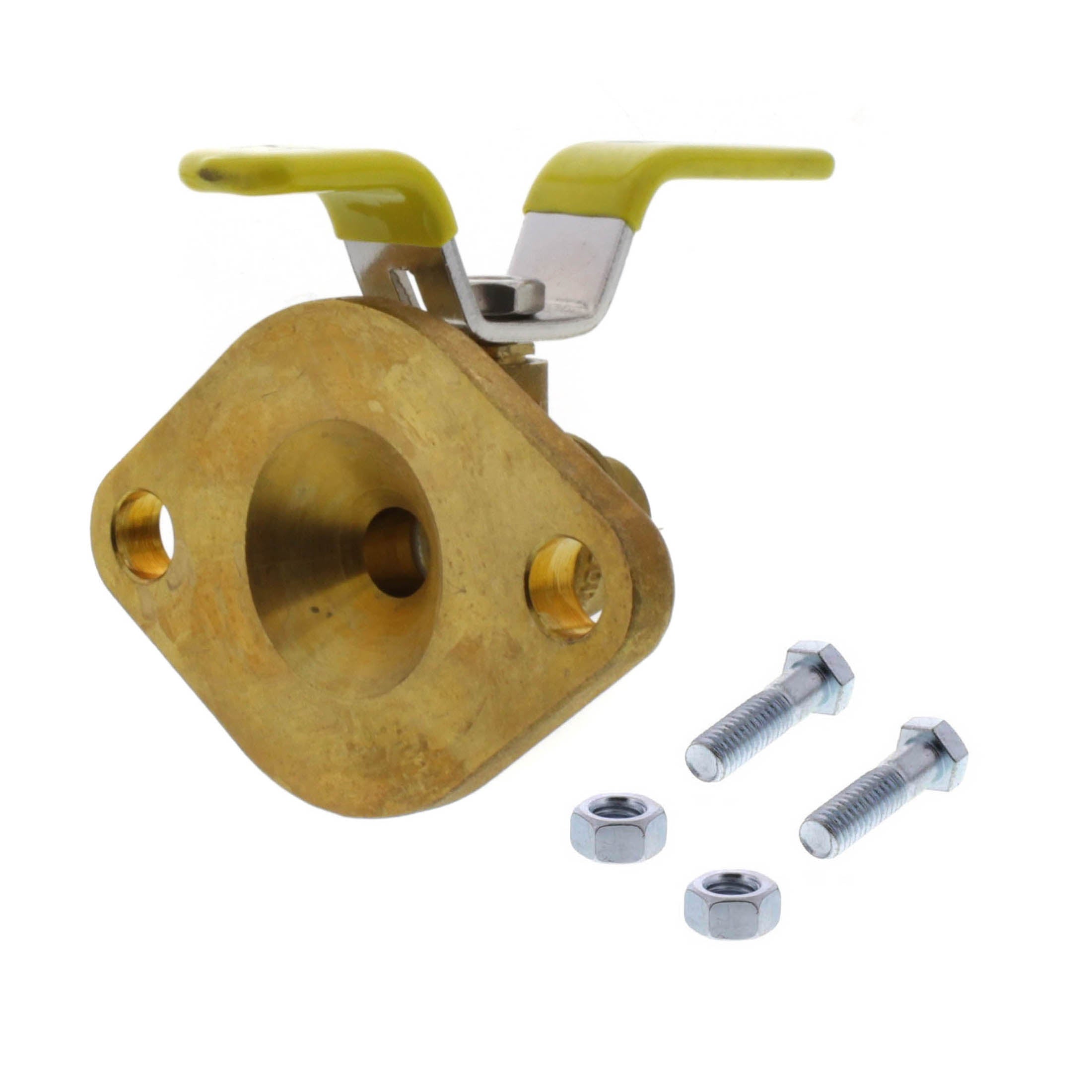

Includes: Adjustable Packing Gland, Bolts, Nuts
-
Material: Low Lead Brass
-
Max. Operating Temp.: 250 PSI
-
Max. Pressure: 600 psi
-
Max. Pressure (combustible Gas): 600 psi
-
Max. Pressure (cwp): 600 psi
-
Media Temp. Range: -20 PSI to +100 PSI
-
Media Temperature Range: -20 PSI to +100 PSI
-
Nominal Valve Size: 1/2"
-
Nsf Certifications For Food And Drinking Water: NSF 61
-
Overall Length: 2.13"
-
Seal Material: PTFE
-
Seat Material: PTFE
-
Stem Material: Brass
-
Stem Type: Blowout Resistant
-
Valve Body Style: Straight
-
Valve Construction: Two-Piece
-
Valve Design: Uni Flange
-
Valve Series: 5040 Series
-
Valve Type: Three Way Ball
-
Model: WEBSTONE H-50402
-
MPN: H-50402
-
UPC: 018394504028
-
NOMINAL SIZE: 1/2 INCH X 1/2 INCH
-
APPLICATION: WATER, OIL, GLYCOL MIX IN RESIDENTIAL OR COMMERCIAL RESIDENTIAL PLUMBING, COMMERCIAL PLUMBING, HEATING SYSTEM APPLICATION
-
INCLUSIONS/FEATURES: ADJUSTABLE PACKING GLAND
-
BODY MATERIAL: FORGED BRASS
-
PRESSURE RATING: 600 PSI CWP
-
END CONNECTION: FEMALE SOLDERED X FLANGED
-
TYPE: FULL PORT
-
MODEL: H-X040
-
PRODUCT_TYPE: HYDR
