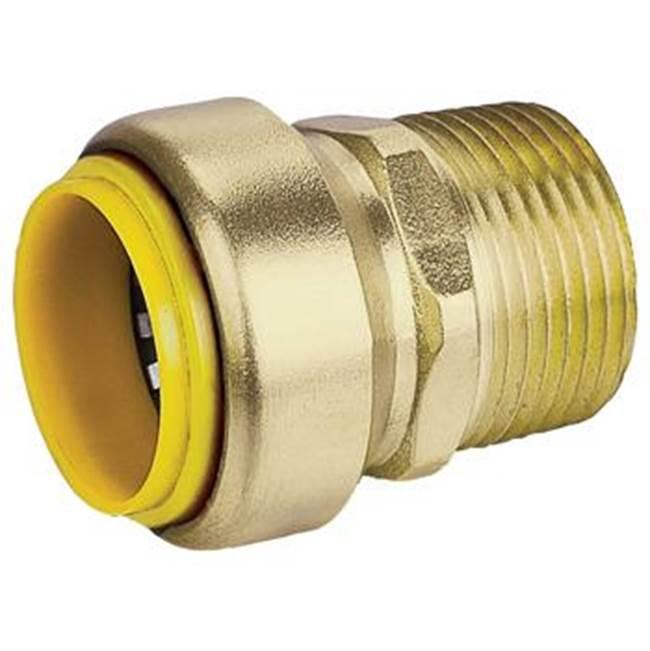

Webstone 26303W straight connector 3/4 in push-fit x 3/4 in MPT

Product Description

The WEBSTONE 26303W Straight Connector is a fitting designed for plumbing applications. This connector features a 3/4 inch Push-Fit connection on one end and a 3/4 inch MPT connection on the other, facilitating secure connections between different pipe types. Constructed from forged DZR brass, it is suitable for use with copper, CPVC, and PEX pipes, supporting a pressure rating of 200 psi and a temperature rating of 200 deg F.

• Features an EPDM O-ring, plastic protector, inner lining, and release collar for sealing.
• Equipped with a stainless steel grip ring for enhanced pipe retention.
• Includes a brass nut for secure and reliable installation.

Product Highlights

Forged DZR brass straight connector with 3/4 inch Push-Fit and MPT connections, rated for 200 psi and 200 deg F.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: 26303W

Technical Specifications

• Material: Forged DZR Brass
• Connection Size: 3/4 in x 3/4 in
• Connection Type: Push-Fit x MPT
• Fitting Type: Connector
• Compatible Pipe Materials: Copper, CPVC and PEX Pipes
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
