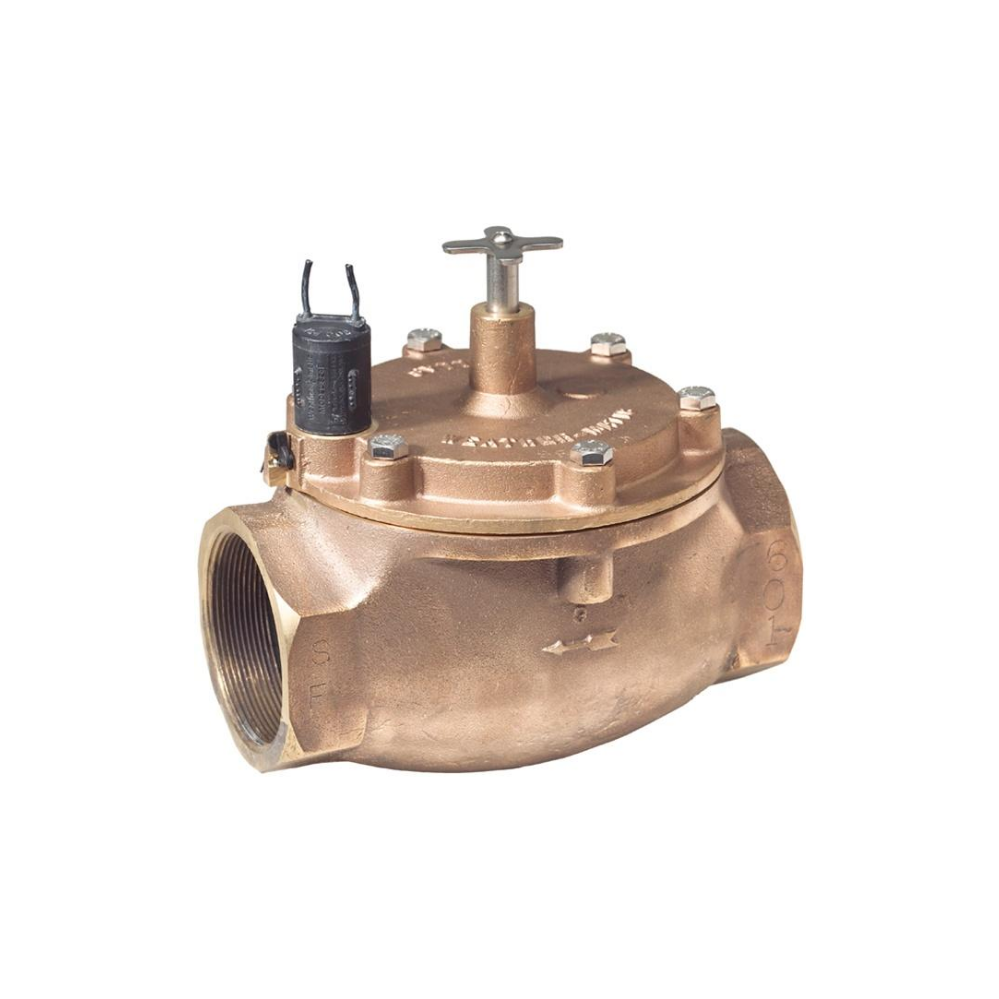

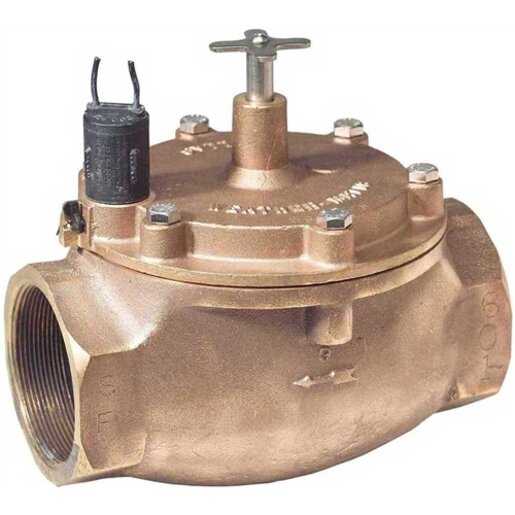

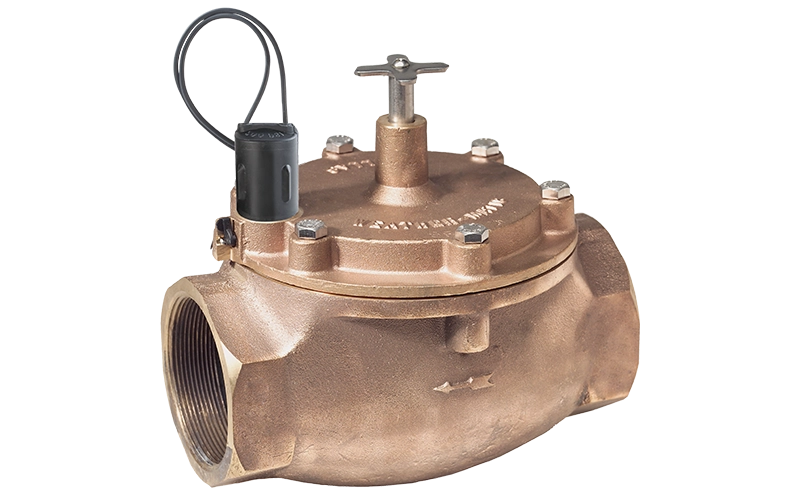

Weathermatic 8200CR-20D bronze bullet valve, reverse-flow

Product Description

The Weathermatic 8200CR-20D is a 2" bronze bullet irrigation valve engineered for reliable operation and long service life. Its bronze body and cover, stainless steel bolts, and brass threads deliver corrosion resistance and mechanical durability for irrigation systems. Designed for commercial and residential irrigation systems.

• Bronze body and cover with stainless steel bolts provide long-lasting corrosion resistance and reduced maintenance.
• High-efficiency S24B solenoid ensures positive opening at high pressures for consistent flow control.
• Stainless steel actuator and brass threads increase service life and resist wear in frequent-cycle installations.

Product Highlights

The 8200CR-20D offers straightforward installation and dependable operation where a compact bronze bullet valve is required. Each valve is 100% water-tested to verify performance before shipment.

Product Information

Standard Information

• Brand: WEATHERMATIC
• Manufacturer Part Number: 8200CR-20D
• Country of Origin: United States

Technical Specifications

• Manufacturer: Weathermatic
• SKU: WM8200CR-20D
• FLOW RANGE: 0.2 to 400 GPM (0 to 90.0 m3/hr)
• ELECTRICAL: 24VAC/60HZ 24VAC/50Hz Inrush: 9.86 VA Inrush: 10.7 VA Holding: 5.69 VA Holding: 7.5 VA
• Type: Flow Control Valve
• Country of Origin: United States
• Connection Type: Fipt
• Connection Size: 2 in.
• Body Material: Brass
• Series: 8200 Series
• Solenoid Type: S24B High-Efficiency Solenoid
• Operating Type: Electric
• Flow Control: Yes
• InletSize: 2 in.
• Maximum Flow Rate: 400 GPM
• Voltage Rating: 24V
• Outlet Size: 2 in.
• Minimum Flow Rate: 0.2 GPM
• Outlet Connection: Fipt
• Inlet Connection: Fipt
• Item: Electric Valve
• Maximum Operating Pressure: 225 PSI
• Connection 2 Size: 2 in.
• Connection 2 Type: Fipt
• Regulated: No
• Brand Name: Weathermatic
