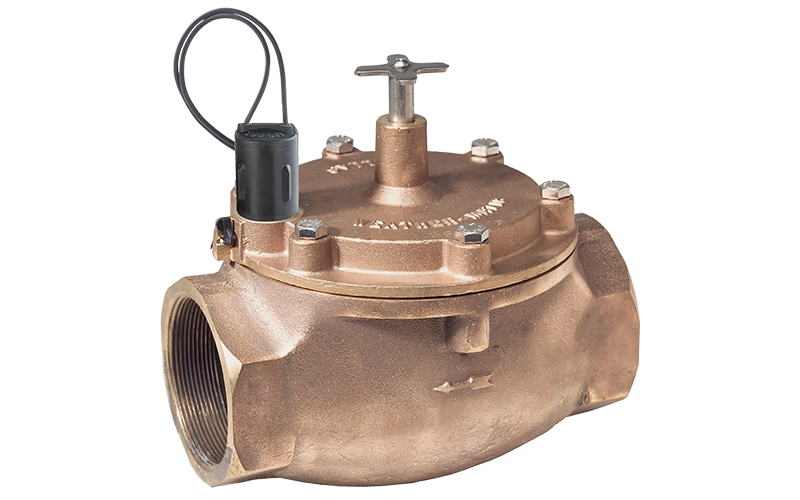

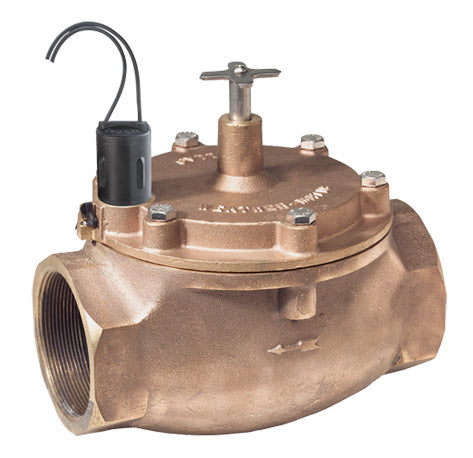

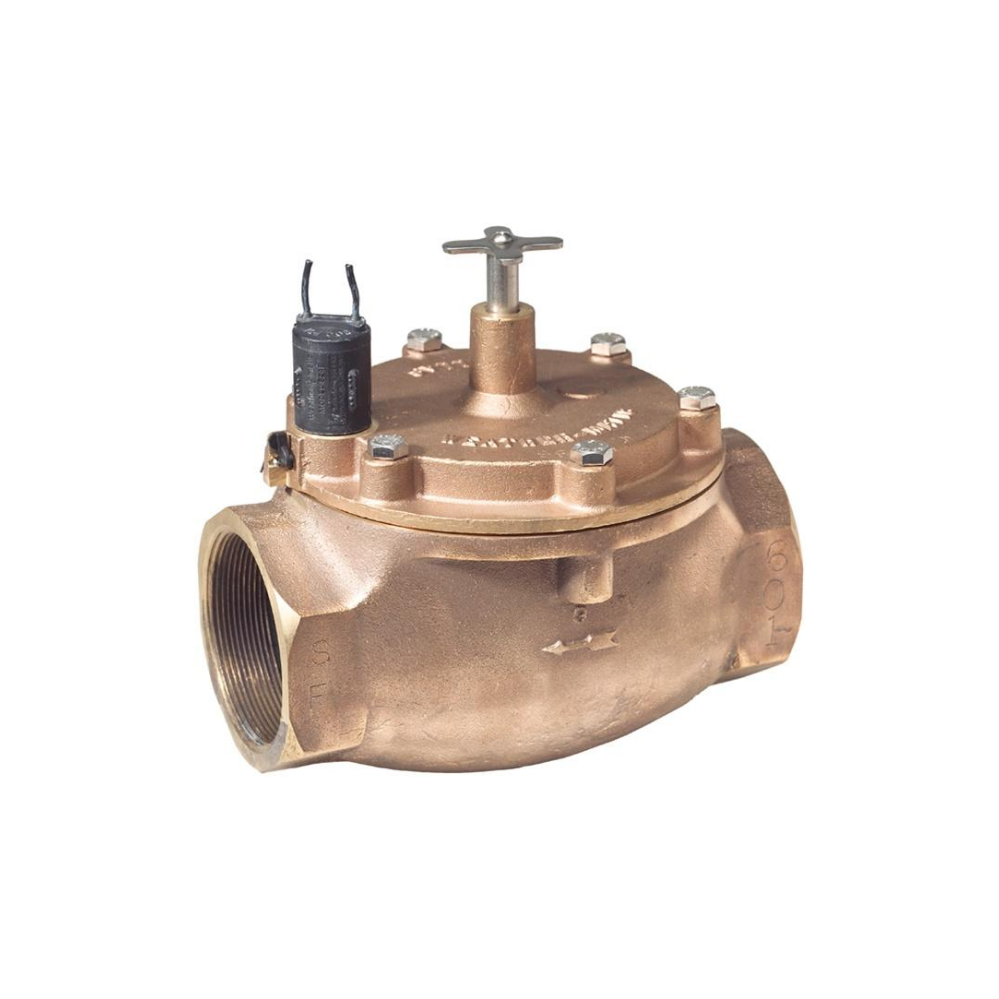

Weathermatic 8200CR-15D Bronze Bullet Valve 1-1/2 inches

Product Description

The Weathermatic 8200CR-15D is a 1-1/2" bronze bullet irrigation valve designed for reliable, long-life service in commercial and residential systems. Built with a reverse-flow diaphragm design and heavy-duty components, it closes on diaphragm failure to conserve water and resists contamination for consistent operation.

• Bronze body and cover with stainless steel cover bolts and brass mating inserts for corrosion resistance.
• 225 PSI (15.5 BAR) rating, 100% water tested and backed by a 10-year trade warranty.
• Chlorine- and chloramine-resistant EPDM diaphragm with self-cleaning ports to reduce debris-related failures.

Product Highlights

Ideal for irrigation contractors and landscape professionals who need a durable, low-maintenance control valve. Use with a 24VAC controller.

Product Information

Standard Information

• Brand: WEATHERMATIC
• Manufacturer Part Number: 8200CR-15D

Technical Specifications

• FLOW RANGE: 0.2 to 400 GPM (0 to 90.0 m3/hr)
• ELECTRICAL: 24VAC/60HZ 24VAC/50Hz Inrush: 9.86 VA Inrush: 10.7 VA Holding: 5.69 VA Holding: 7.5 VA
