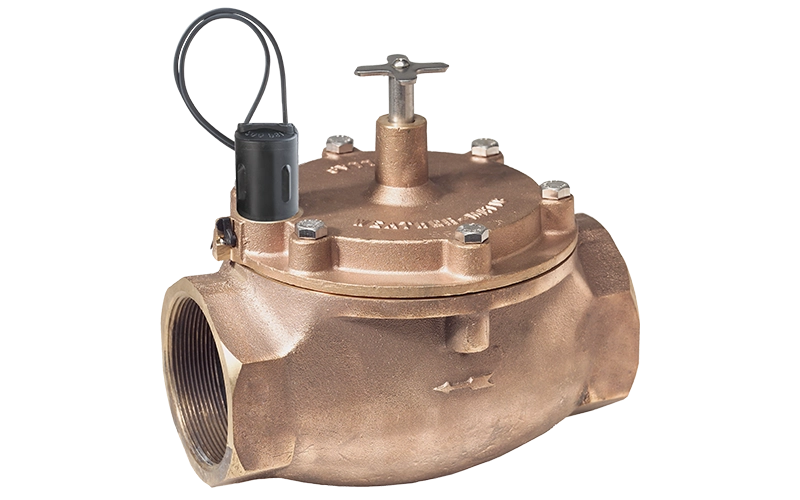

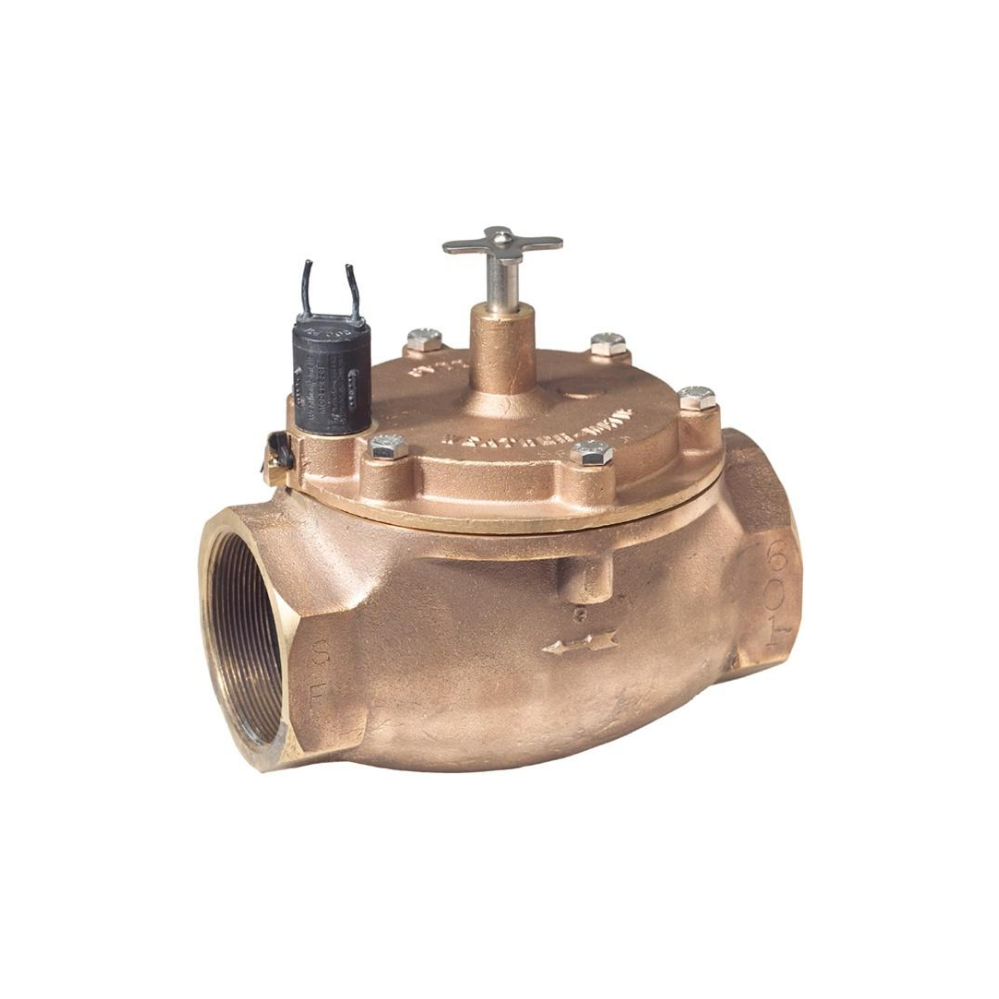

Weathermatic 8200CR-12D Bronze Bullet Valve 1-1/4 inches

Product Description

The Weathermatic 8200CR-12D Bronze Bullet Valve is a heavy-duty, contamination-resistant irrigation valve engineered for reliable underground installation and long service life. Designed for professional contractors, this 1-1/4" valve combines robust bronze construction with proven hydraulic and electrical performance to efficiently control landscape and turf irrigation.

• Features a bronze body and cover with stainless steel cover bolts and a brass shock cone.
• Has a 225 PSI cold working pressure rating and a wide flow range suitable for low- and high-volume irrigation applications.
• Equipped with an EPDM diaphragm with self-cleaning ports that resists sand and silt blockage.

Product Highlights

This valve is diaphragm-operated, normally closed, and has a reverse-flow design that ensures automatic closure in the event of diaphragm failure. It also features an internal manual bleed lever with positive stops and an external adjustable flow control stem.

Product Information

Standard Information

• Brand: WEATHERMATIC
• Manufacturer Part Number: 8200CR-12D

Technical Specifications

• FLOW RANGE: 0.2 to 400 GPM (0 to 90.0 m3/hr)
• ELECTRICAL: 24VAC/60HZ 24VAC/50Hz Inrush: 9.86 VA Inrush: 10.7 VA Holding: 5.69 VA Holding: 7.5 VA
• Model: 8200CR-12D
• Description: 1 1¼” Red Brass Valve – 24VAC with Flow Control
• Length: 4.75” (12.07 cm)
• Width: 3.63” (9.22 cm)
• Height: 5.25” (13.34 cm)
