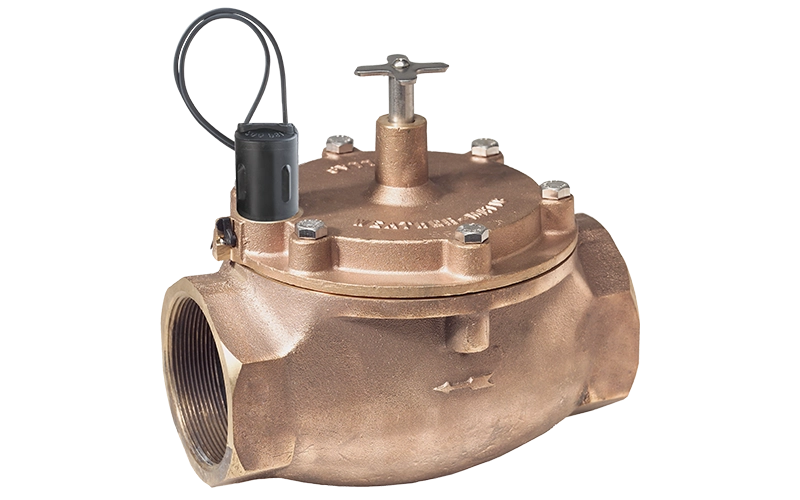

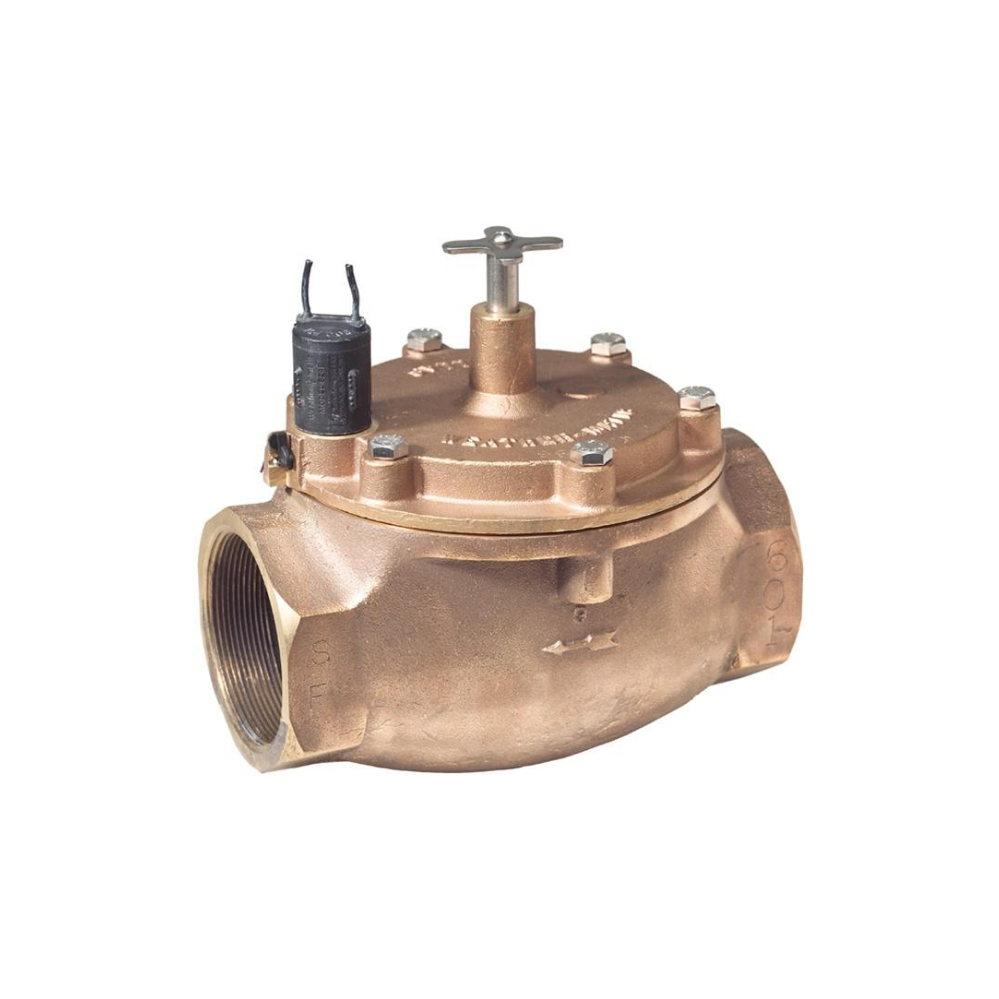

Weathermatic 8200CR-10D Bronze Bullet Valve with Flow Control 1 Inch

Product Description

The Weathermatic 8200CR-10D 1" Bronze Bullet Valve is a heavy-duty, contamination-resistant irrigation valve engineered for long service life and reliable operation. Bronze construction, EPDM diaphragm and the S24B solenoid provide consistent performance. It is 225 PSI rated and suitable for high-pressure irrigation systems. Ideal for commercial and residential irrigation where durability and serviceability matter.

• Heavy-duty, contamination-resistant irrigation valve
• Bronze construction
• EPDM diaphragm
• S24B solenoid
• Reverse-flow design and brass shock cone

Product Highlights

The Weathermatic 8200CR-10D is ideal for efficient and reliable irrigation, withstanding demanding conditions and ensuring long-term performance.

Product Information

Standard Information

• Brand: WEATHERMATIC
• Manufacturer Part Number: 8200CR-10D

Technical Specifications

• FLOW RANGE: 0.2 to 400 GPM (0 to 90.0 m3/hr)
• ELECTRICAL: 24VAC/60HZ 24VAC/50Hz
• Connection Type: Fipt
• Connection Size: 1 in.
• Body Material: Brass
• Type: In-Line
• Series: 8200 Series
• Solenoid Type: AC
• Operating Type: Manual
• Flow Control: Yes
• InletSize: 1 in.
• Height: 5-1/4 in.
• Width: 3-5/8 in.
• Maximum Flow Rate: 400 GPM
• Voltage Rating: 24V
• Outlet Size: 1 in.
• Minimum Flow Rate: 0.2 GPM
• Outlet Connection: Fipt
• Inlet Connection: Fipt
• Item: Electric Valve
• Maximum Operating Pressure: 225 PSI
• Connection 2 Size: 1 in.
• Connection 2 Type: Fipt
• Regulated: No
• Brand Name: Weathermatic
• Max Working Pressure: 225 psi
• Valve Type: Bullet
• MFG Number: 8200CR-10D
• Material: Brass
• MPN: 8200CR10D
