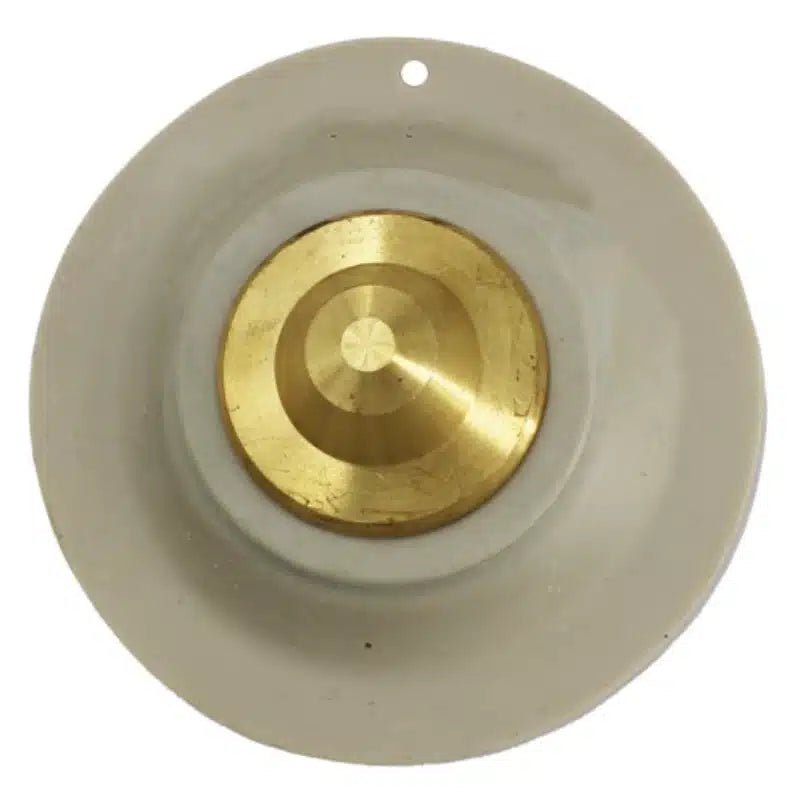

Weathermatic 30-05DSA Bronze Bullet Diaphragm Assembly 1 inches–1 1/4 inches

Product Description

The WEATHERMATIC 30-05DSA is a replacement diaphragm assembly designed for Weathermatic Bronze Bullet valves. It fits 1" and 1 1/4" (8200CR series) bronze valves and restores reliable, low-flow operation for irrigation systems. Rated to 225 PSI and suitable for low-volume irrigation with a flow range of 0.2–400 GPM.

• Replacement diaphragm assembly
• Fits 1" and 1 1/4" (8200CR series) bronze valves
• Restores reliable, low-flow operation

Product Highlights

This diaphragm assembly features a reverse-flow, contamination-resistant design with self-cleaning ports to reduce clogging. It also has a built-in brass flow-control stem and internal manual bleed lever for easy adjustment and servicing.

Product Information

Standard Information

• Brand: WEATHERMATIC
• Manufacturer Part Number: 30-05DSA
• Country of Origin: United States

Technical Specifications

• Material: Plastic, Rubber, Brass
• Performance: Rated to 225 PSI and suitable for low-volume irrigation; flow range 0.2–400 GPM.
• Solenoid compatibility: Works with S24B high-efficiency 24VAC solenoid (low holding current for reliable operation).
• Design benefits: Reverse-flow, contamination-resistant diaphragm with self-cleaning ports to reduce sand and silt clogging.
• Controls: Built-in brass flow-control stem and internal manual bleed lever for easy adjustment and servicing.
• Durability: Bronze construction with 82% copper content and stainless fasteners for long service life in buried installations.
• Brand: Weathermatic
• Part Number: 30-05DSA
• Batteries Required?: No
• Included Components: Valve Diaphram Kit
• Valve Type: Diaphragm Valve
• Inlet Connection Size: 1 Inches
• Batteries Included?: No
• UPC: 780534109140
• Country of Origin: United States
• Size: 1" - 1 1/4"
