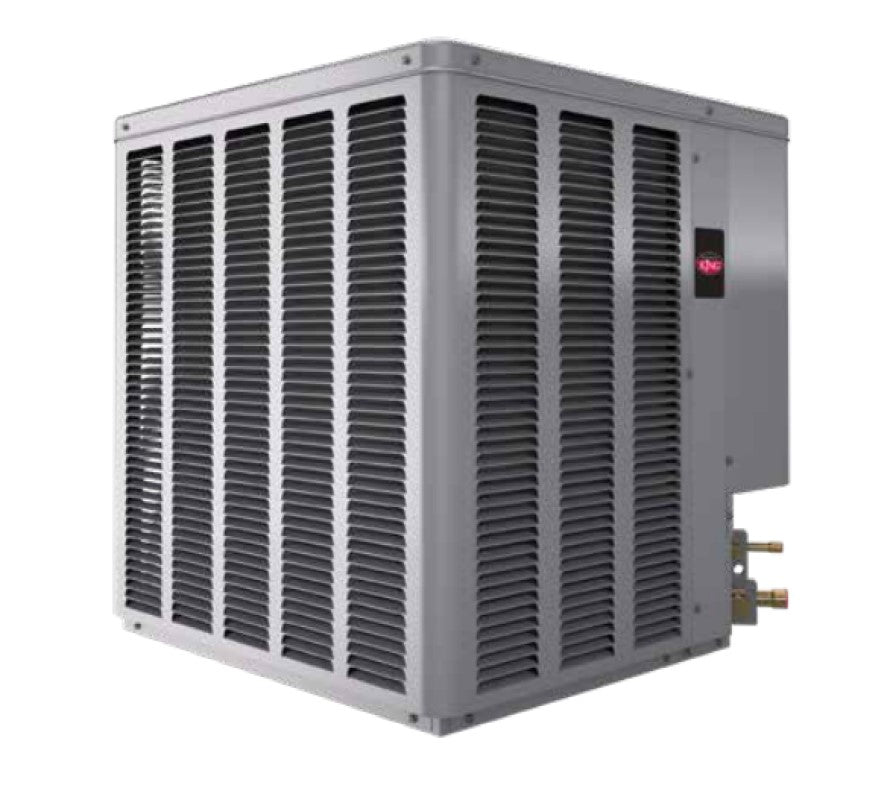

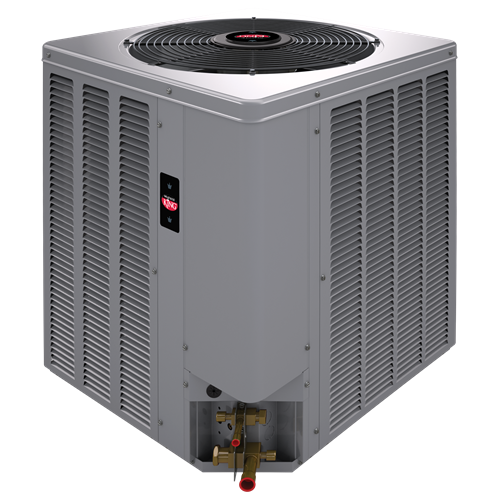

Weatherking WSA14AY24AJ1NA R454B SM Cube Cond 2 Ton

Product Description

The WeatherKing WSA14AY24AJ1NA condensing unit uses R454B refrigerant and has a 2 ton capacity. Features include 208-230/1/60 voltage, a scroll compressor, and an optimized 7mm coil design. The unit has a fully louvered steel cabinet and an easily accessible control box. Designed for sustainability with low GWP.

• Features a fully louvered steel cabinet for protection from weather and corrosion.
• Optimized 7mm coil design improves airflow, heat transfer, and energy consumption.
• Easily accessible control box allows for ease of installation and service.

Product Highlights

This WeatherKing condensing unit offers efficient cooling and is designed for easy installation and maintenance.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WSA14AY24AJ1NA

Technical Specifications

• Manufacturer SEER2: 14+
• Tonnage: 2 Ton
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Refrigerant Type: R454B
• Compressor Type: Scroll
• Maximum overcurrent protection (amps): 20 A
• Communication: Non-Communicating
• BTU/HR: 24,000
• STANDARD RATING (DBA): 76
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 3/4 in
• Application: Condenser SEER2 14+
• Length (inches): 23.63
• Width (inches): 23.63
• Height (inches): 32.25
• A2L Compatible: Yes
• BTU Cooling Rating: 22800 Btu/h
• CFM: 735 ft³/min
• Compressor Stages: Single Stage
• Decibel Rating (dB): 71 dB
• Depth: 23 5/8 in
• Horsepower: 1/6 hp
• MBH: 24
• Phase: Single Phase
• Power Source: Electric
• RPM: 825
• Refrigerant: R-454B
• SEER2: 14.3
• SEER2 Range: 14.3 - 15.1
• Sound Blanket: No
• UL Listed: Yes
• Volts: 208/230V
• Watts: 197 W
• Type: Air Conditioner
• Nominal Capacity: 24000 Btu/h
• Refrigerant Furnished oz.: 101
• Sound Level: 76.0 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 14 A
• Compressor - Rated Load Amps: 10 A
• Compressor - Locked Rotor Amps: 60.0 A
• Condenser Fan Motor - Full Load Amps: 0.80 A
• Condenser Fan Motor - Locked Rotor Amps: 1.7 A
• Net Face Area - Outer Coil: 14.5 ft²
• Net Face Area - Inner Coil: 13.9 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 2
• Fins per Inch: 22
• Outdoor Fan Diameter: 18 in
• Number of Blades: 3
• Motor HP: 1/7 hp
• Total Capacity: 22800 Btu/h
• Net Sensible Capacity: 17000 Btu/h
• Net Latent Capacity: 5.800 Btu/h
• EER2: 11.7
• Indoor CFM: 735 ft³/min
• Nominal Tons: 2.0
• Line Sizes (Liq x Suc): 3/8" x 3/4"
