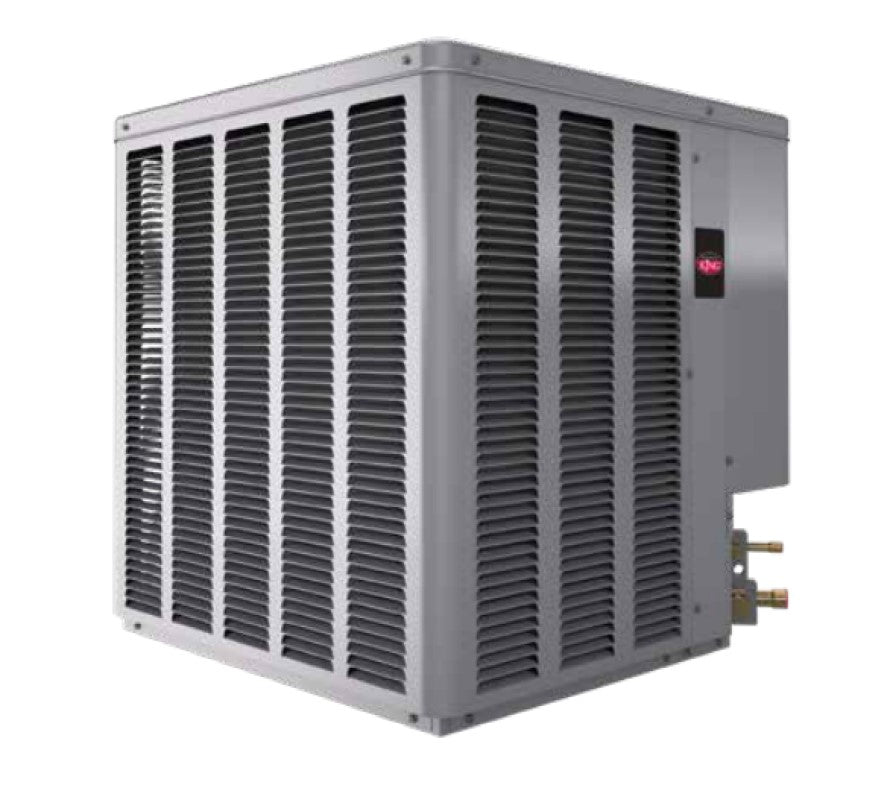

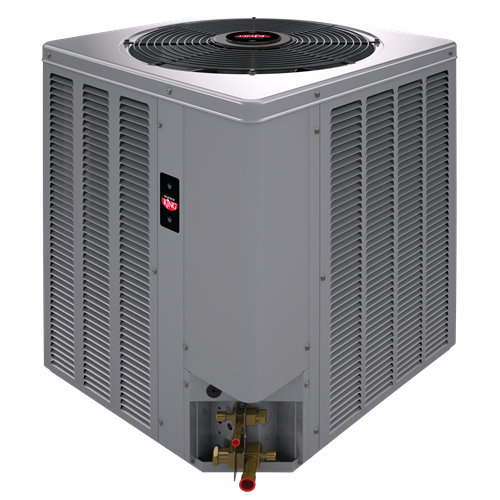

Weatherking WSA14AY18AJ1NA R454B SM Cube Cond 18,000 BTU/HR

Product Description

The WeatherKing WSA14AY18AJ1NA condensing unit uses R454B refrigerant and features a scroll compressor. This unit has a 1.5 tonnage capacity and provides 18,000 BTU/HR. Designed for sustainability with low GWP, it also features a refrigerant detection system for system protection and monitoring.

• Features a fully louvered steel cabinet for protection against yard hazards and weather corrosion.
• Optimized 7mm coil design improves airflow, heat transfer, and energy consumption.
• Includes an easily accessible control box for ease of installation and serviceability.

Product Highlights

The WeatherKing WSA14AY18AJ1NA condensing unit offers efficient cooling and reliable performance with its robust design and advanced features.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WSA14AY18AJ1NA

Technical Specifications

• Manufacturer SEER2: 14+
• Tonnage: 1.5
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Refrigerant Type: R454B
• Compressor Type: Single Stage
• Maximum overcurrent protection (amps): 15
• Communication: Non-Communicating
• BTU/HR: 18,000
• STANDARD RATING (DBA): 76
• Liquid Line O.D. – in.: 3/8
• Suction Line O.D. – in.: 3/4
• Application: Condenser SEER2 14+
• Length (inches): 23.63
• Width (inches): 23.63
• Height (inches): 32.25
• Cooling Efficiency: 15.2 SEER2 / 12 EER2
• Sound Level: 76.0 dB
• EcoNet® Enabled: No
• ENERGY STAR® certified: Yes
• Condenser Coil Type: 7mm
• Type: Condensing Unit
• Nominal Capacity: 18000 Btu/h
• Refrigerant Furnished oz.: 103
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 12 A
• Compressor - Rated Load Amps: 8 A
• Compressor - Locked Rotor Amps: 45 A
• Condenser Fan Motor - Full Load Amps: 0.80 A
• Condenser Fan Motor - Locked Rotor Amps: 1.7 A
• Net Face Area - Outer Coil: 14.5 ft²
• Net Face Area - Inner Coil: 13.9 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 2
• Fins per Inch: 22
• Outdoor Fan Diameter: 18 in
• Number of Blades: 3
• Motor HP: 1/7 hp
• CFM: 2036 ft³/min
• RPM: 1075
• Watts: 154 W
• Total Capacity: 17000 Btu/h
• Net Sensible Capacity: 13100 Btu/h
• Net Latent Capacity: 4.000 Btu/h
• SEER2: 14.3
• EER2: 11.7
• Indoor CFM: 600 ft³/min
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 3/4 in
• Nominal Tons: 1.5
• Refrigerant: R-454B
• Line Sizes (Liq x Suc): 3/8" x 3/4"
