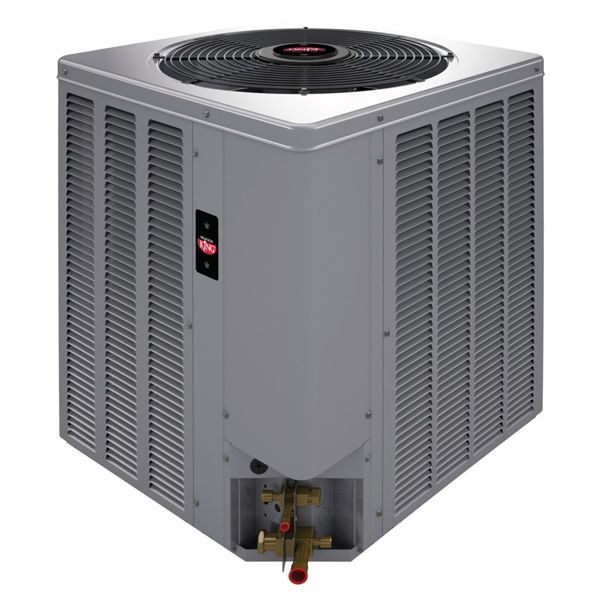

Weatherking WP14AY48AJ2NA Versus™ A2L Heat Pump 208-230 V 4 Ton

Product Description

The WeatherKing WP14AY48AJ2NA Versus™ Heat Pump operates on 208-230 V, 27 A, and delivers 48000 Btu/hr. It features a scroll compressor and uses R-454B refrigerant. Designed with a durable steel construction, it ensures protection from environmental factors. This unit provides efficient and reliable home comfort for cooling and heating.

• Features a fully louvered steel cabinet for enhanced protection.
• Equipped with a two-stage scroll compressor for precise temperature control.
• Includes an inverted reversing valve for faster heat transfer.

Product Highlights

Durable steel construction, two-stage scroll compressor, and inverted reversing valve ensure efficient and reliable performance.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WP14AY48AJ2NA

Technical Specifications

• Compressor Type: Scroll
• EER Rating: 9
• Frequency Rating: 60 Hz
• Fuse Rating: 45 A
• HSPF Rating: 7.5
• Number of Stages: 2
• SEER Rating: 14.3
• Sound Level: 74 dB
• Tonnage: 4 ton
• Voltage Rating: 208-230 V
• Amperage Rating: 27 A
• BTU Rating: 48000 Btu/hr
• HP Rating: 1/5 hp
• Phase: 1 ph
• Material: Steel
• Refrigerant Type: R-454B
• Nominal Capacity: 48000 Btu/h
• Minimum Circuit Ampacity: 27 A
• Compressor - Rated Load Amps: 20 A
• Compressor - Locked Rotor Amps: 141 A
• Condenser Fan Motor - Full Load Amps: 1.00 A
• Condenser Fan Motor - Locked Rotor Amps: 2.56 A
• Tube Diameter: 0.276 in
• Number of Rows: 1
• Fins per Inch: 24
• Outdoor Fan Diameter: 24 in
• Number of Blades: 3
• Motor HP: 1/5 hp
• RPM: 850
• Watts: 236 W
• Total Capacity: 45500 Btu/h
• Net Sensible Capacity: 34900 Btu/h
• Net Latent Capacity: 10600 Btu/h
• SEER2: 14.3
• EER2: 9.0
• HSPF2: 7.5
• Heating Capacity - 47°F: 44000 Btu/h
• Heating Capacity - 17°F: 27500 Btu/h
• COP - 47°F: 3.40
• COP - 17°F: 2.5
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 7/8 in
• Voltage: 208 to 230 V
• Number of Phases: 1
