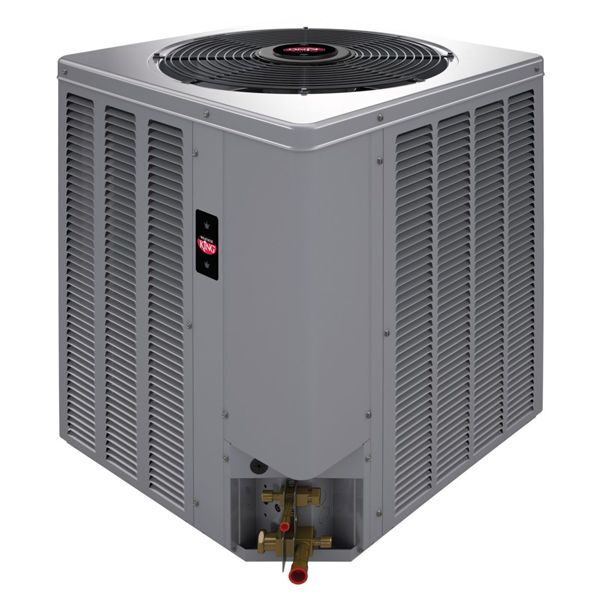

Weatherking WP14AY30AJ2NA Heat Pump 208-230 V 30000 Btu/hr 2.5 Ton

Product Description

The WeatherKing WP14AY30AJ2NA heat pump operates on 208-230 V and delivers 30000 Btu/hr. It features a scroll compressor, 3/8 in liquid line, and 3/4 in suction line. The unit has a 9 EER rating, 14.3 SEER, and 7.5 HSPF. Designed with a fully louvered steel cabinet for protection against yard hazards and weather corrosion.

• Features a durable, fully louvered steel cabinet for protection.
• Equipped with a two-stage scroll compressor for precise temperature control.
• Utilizes an inverted reversing valve for faster heat transfer.

Product Highlights

This WeatherKing heat pump offers efficient and reliable performance with its two-stage compressor and durable steel construction.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WP14AY30AJ2NA

Technical Specifications

• CFM Rating: 3391 cfm
• Compressor Type: Scroll
• EER Rating: 9
• Frequency Rating: 60 Hz
• Fuse Rating: 30 A
• HSPF Rating: 7.5
• Number of Stages: 2
• Power Rating: 175 W
• SEER Rating: 14.3
• Tonnage: 2.5 ton
• Voltage Rating: 208-230 V
• Amperage Rating: 20 A
• BTU Rating: 30000 Btu/hr
• HP Rating: 1/5 hp
• Phase: 1 ph
• Refrigerant Type: R-454B
• A2L Compatible: Yes
• Application: Residential
• BTU Cooling Rating: 28600 Btu/h
• BTU Heat Rating: 28000 Btu/h
• Compressor Stages: Two Stage
• Decibel Rating (dB): 72 dB
• EER2: 9
• EER2 Range: 0 - 10.5
• HSPF2: 7.5
• HSPF2 Range: 7.5 - 25.0
• Horsepower: 1/5 hp
• Liquid Line (OD): 3/8
• MBH: 30
• Max Fuse Size: 30
• Power Source: Electric
• Refrigeration Control Type: TXV
• SEER2: 14.3
• SEER2 Range: 13.4 - 13.7
• Suction Line (OD): 3/4
• UL Listed: Yes
• Watts: 175
• Coil Rating: 1-Row, 14.4 sq-ft Face Area, 22 FPI
• Rotational Speed: 850 rpm
• Material: Steel
