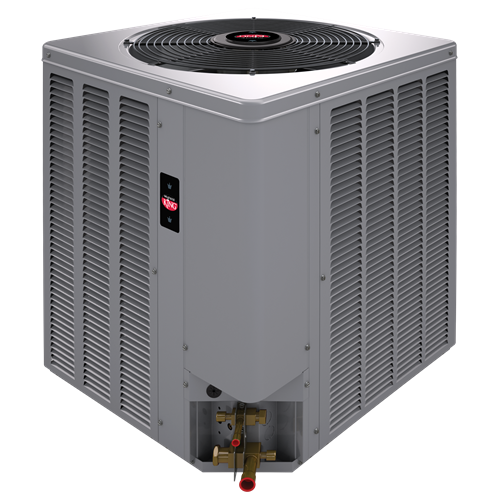

Weatherking WP14AY18AJ1NA Versus™ Heat Pump 18000 Btu/hr 1.5 Ton

Product Description

The WeatherKing WP14AY18AJ1NA Versus™ Heat Pump operates on 208-230 V and 13 A. This unit features a 1/7 hp motor, rotational speed of 1075 rpm, and an output of 18000 Btu/hr at 2401 cfm. The heat pump has a 9 EER rating, 14.3 SEER, and 7.5 HSPF, utilizing a scroll compressor and R-454B refrigerant.

• Features a fully louvered steel cabinet for protection against yard hazards and weather corrosion.
• Equipped with an inverted reversing valve for faster heat transfer and reduced joint stress.
• Includes PlusOne® Refrigerant Detection System™ for simplified wiring and system protection.

Product Highlights

Durable steel construction, efficient operation, and advanced refrigerant detection make this WeatherKing heat pump a reliable choice for home comfort.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WP14AY18AJ1NA

Technical Specifications

• CFM Rating: 2401 cfm
• Coil Rating: 1-Row, 10.9 sq-ft Face Area, 22 FPI
• Compressor Type: Scroll
• EER Rating: 9
• Frequency Rating: 60 Hz
• Fuse Rating: 20 A
• HSPF Rating: 7.5
• Number of Stages: 1
• Power Rating: 146 W
• Rotational Speed: 1075 rpm
• SEER Rating: 14.3
• Series: Select™ Series
• Sound Level: 73 dB
• Tonnage: 1.5 ton
• Voltage Rating: 208-230 V
• Amperage Rating: 13 A
• BTU Rating: 18000 Btu/hr
• HP Rating: 1/7 hp
• Phase: 1 ph
• Material: Steel
• Refrigerant Type: R-454B
• A2L Compatible: Yes
• BTU Cooling Rating: 17100 Btu/h
• BTU Heat Rating: 16600 Btu/h
• EER2: 9
• EER2 Range: 0 - 10.5
• HSPF2: 7.5
• HSPF2 Range: 7.5 - 25.0
• Liquid Line (OD): 3/8
• MBH: 18
• Power Source: Electric
• Refrigeration Control Type: TXV
• SEER2: 14.3
• SEER2 Range: 13.4 - 13.7
• Suction Line (OD): 3/4
• UL Listed: Yes
• Watts: 146
• Brand: WeatherKing
• Type: Heat Pump
• Nominal Tons: 1.5
• Line Sizes (Liq x Suc): 1/4" x 5/8"
