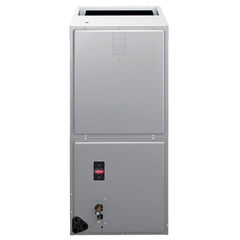

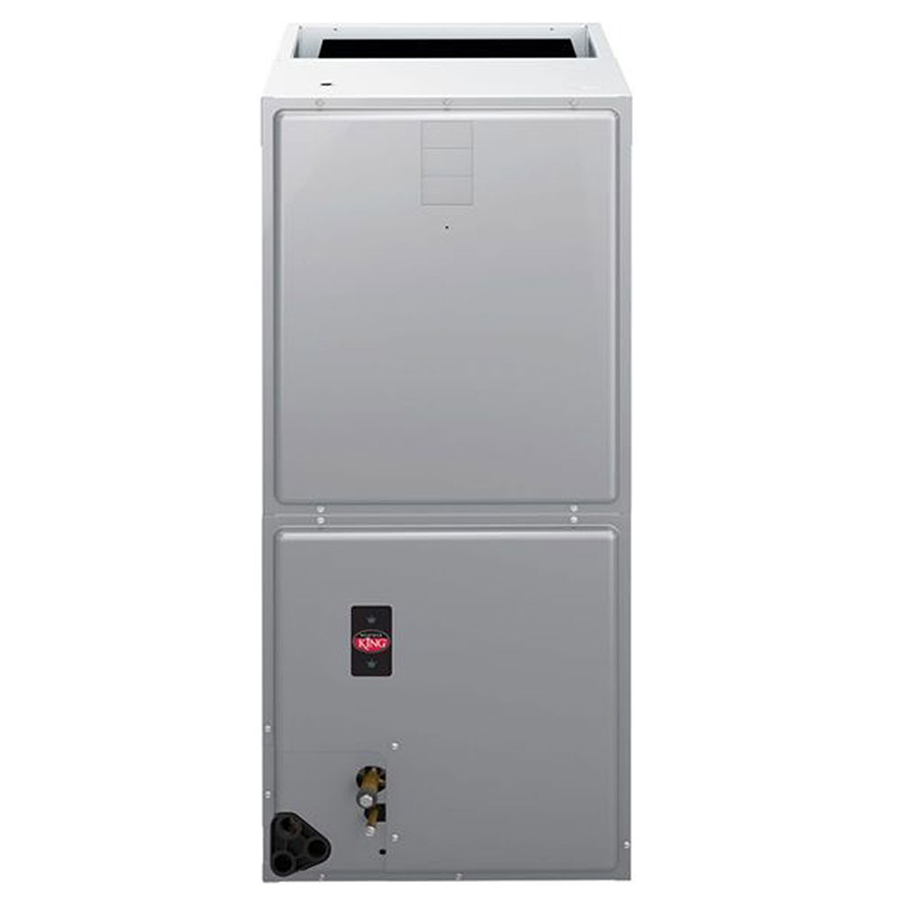

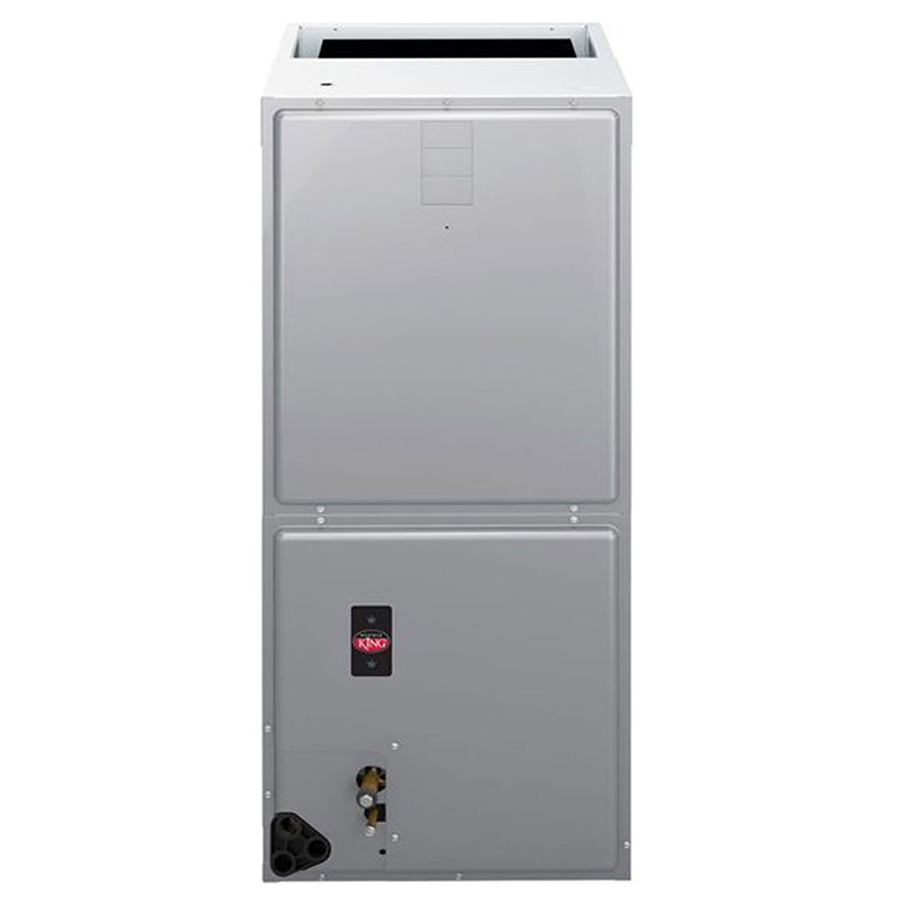

Weatherking WH2TY6024STANNJ Air Handler 60000 Btu/h Two Stage

Product Description

The WEATHERKING WH2TY6024STANNJ is a multi-position air handler designed for residential and light commercial forced-air HVAC systems. Rated at 60,000 BTU/h (5 nominal tons), it operates with a two-stage constant torque motor configuration that allows the system to match heating and cooling output to actual load conditions. At 24 inches wide, the cabinet fits a range of installation footprints. Licensed HVAC technicians install this unit as the indoor half of a split system, pairing it with a matched outdoor condensing unit. The multi-position design reduces the need for separate horizontal or vertical models on a job site.

This air handler is suited for multi-position installations, meaning it can be oriented for upflow, downflow, or horizontal airflow depending on the structure and duct layout. The two-stage operation reduces short-cycling and improves humidity control during part-load conditions, which is a common requirement in residential comfort systems. The 24-inch cabinet width makes it appropriate for closet, alcove, and utility room installations where space is a factor.

Key Features

• 60,000 BTU/h (5 nominal tons) capacity for medium to large residential applications
• Two-stage operation reduces short-cycling and improves dehumidification performance
• Constant torque motor maintains consistent airflow across varying static pressure conditions
• Multi-position cabinet supports upflow, downflow, and horizontal orientations
• 24-inch cabinet width fits standard closet and alcove installations

Compatibility

Designed as an OEM-style replacement or new-installation air handler for use with matched split-system outdoor condensing units in residential and light commercial forced-air applications.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power before servicing or mounting the unit. Confirm that the supply and return duct connections are properly sized and sealed to prevent air leakage, which directly affects rated system efficiency. Verify refrigerant line sizing and coil connections meet the requirements of the matched outdoor unit before commissioning.

Technical Specifications

• Capacity: 60,000 BTU/h
• Nominal Tons: 5
• Stage: Two Stage
• Motor Type: Constant Torque
• Orientation: Multi-Position
• Width: 24 inches

Standard Information

• Brand: WEATHERKING
• Manufacturer Part Number: WH2TY6024STANNJ
