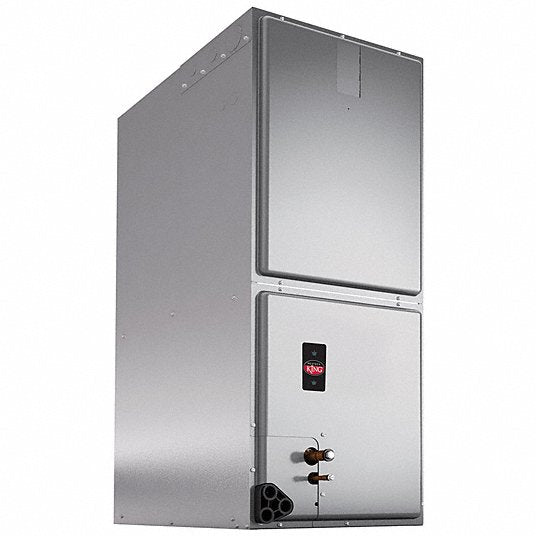

Weatherking WH2TY4821STANNJ Versus™ Multi-Purpose Air Handler 208-240 V 3.5-4.0 Ton

Product Description

The WeatherKing WH2TY4821STANNJ Versus™ Multi-Purpose Air Handler features a 48000 Btu/hr cooling capacity and operates on 208-240 V. This air handler is designed for versatile installation, including downflow, horizontal left, horizontal right, and upflow configurations. It utilizes R-454B refrigerant and includes a constant torque motor.

• Quiet operation due to cabinet construction with 1.0 inch of foil-faced insulation.
• Aluminum indoor coil design for corrosion resistance.
• Versatile 4-way convertible compact design for various installation options.

Product Highlights

This multi-purpose air handler offers efficient cooling and flexible installation with a focus on quiet operation and durable construction.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WH2TY4821STANNJ
• Country of Origin: Mexico

Technical Specifications

• Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow
• Cooling Capacity: 48000 Btu/hr
• Fuse Rating: 15 A
• Liquid Line Size: 3/8 in
• Material: Steel
• Motor Type: Constant Torque
• Number of Speeds: 4
• Number of Stages: 2
• Refrigerant Type: R-454B
• Rotational Speed: 300 to 1100 rpm
• Series: WH2TY Series
• Suction Line Size: 7/8 in
• CFM Rating: 1600 cfm
• Voltage Rating: 208-240 V
• Amperage Rating: 5 A
• Wattage: 559 W
• HP Rating: 3/4 hp
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Nominal Cooling Capacity (Tons): 4 ton
• Maximum Airflow: 1,800 cfm
• Nameplate Voltage: 208-240V AC
• Electric Heater Compatible: Yes
• Expansion Device Type: Expansion Valve
• Housing Material: Steel
• Return Air Opening Width: 19-3/8 in
• Return Air Opening Depth: 19-3/4 in
• Supply Opening Width: 21 in
• Supply Opening Depth: 19 1/2 in
• Overall Height: 50-1/2 in
• Overall Width: 21 in
• Overall Depth: 21 5/8 in
• Manufacturer Part Number: WH2TY4821STANNJ
• Standards: cUL; UL Listed
• Discharge Position: Multiposition (Up, Down, Horizontal)
• A2L Compatible: Yes
• AMP: 3.7
• BTU Cooling Rating: 48000 Btu/h
• Blower Type: 5 Speed
• CFM: 1600
• Coil Type: N
• Communicating: Non-Communicating
• Fan Speeds: 5
• Horsepower: 3/4 hp
• Liquid Line (OD): 3/8
• MBH: 48
• Max CFM: 1800
• Power Source: Electric
• Refrigerant: R-454B
• Stages: Two Stage
• Suction Line (OD): 7/8
• Tonnage: 4 Ton
• UL Listed: Yes
• Volts: 208/240V
• Watts: 559
