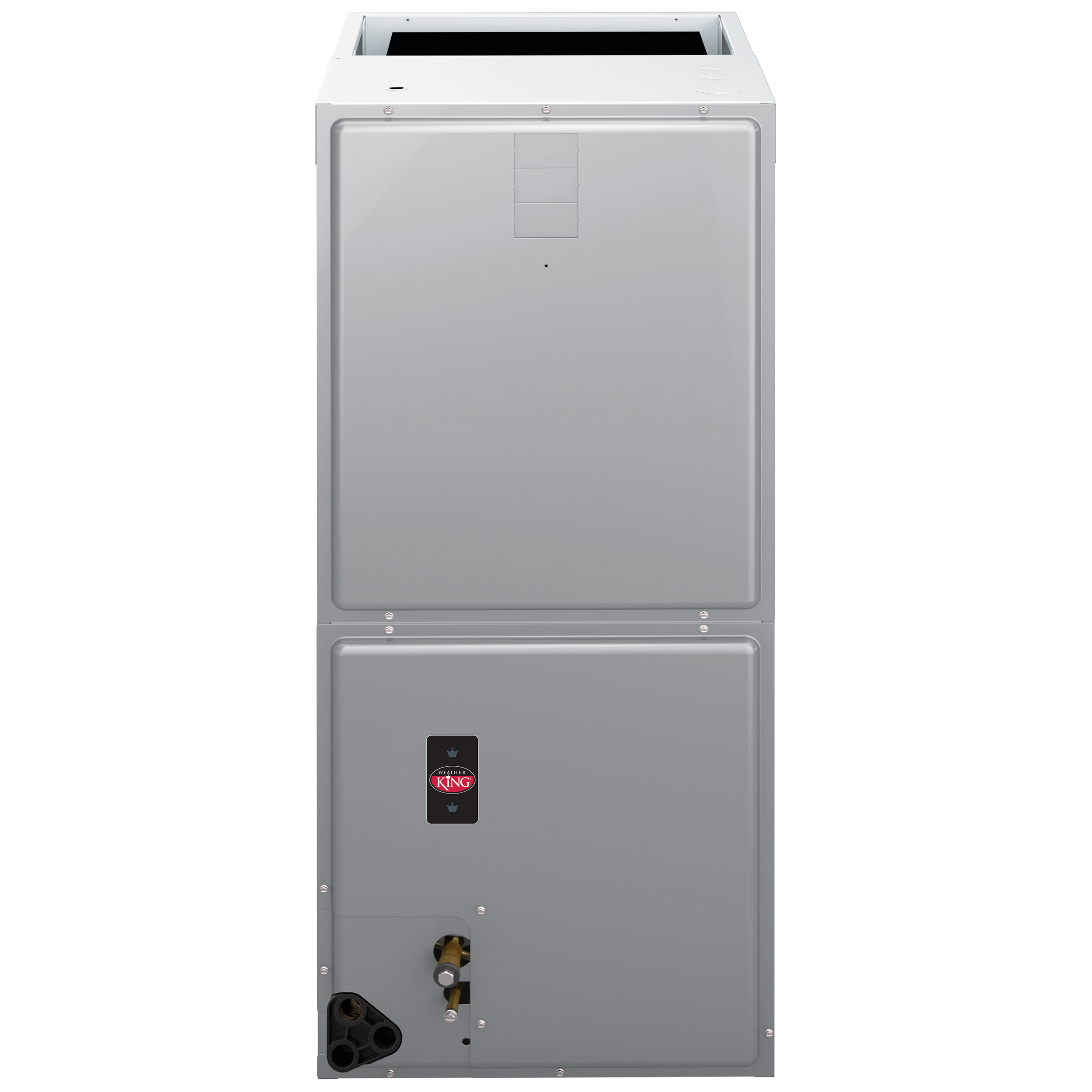

Weatherking WH2TY3617STANNJ Versus™ A2L Multi-Purpose Air Handler 373 W 2.5 Ton

Product Description

The WeatherKing WH2TY3617STANNJ Versus™ A2L Multi-Purpose Air Handler operates on 208-240 V, 3 A, and 373 W at 60 Hz, 1 ph. This air handler features a cooling capacity of 36000 Btu/hr and a rotational speed ranging from 300 to 1100 rpm. Designed for versatile installation, it supports downflow, horizontal left, horizontal right, and upflow configurations. It uses R-454B refrigerant and includes a 15 A fuse rating.

• Quiet operation due to cabinet construction with 1.0 inch of foil faced insulation.
• Aluminum indoor coil design with aluminum fins bonded to internally grooved aluminum tubing for corrosion resistance.
• Versatile 4-way convertible compact design for upflow, downflow, horizontal left, and horizontal right applications.

Product Highlights

This WeatherKing air handler offers efficient cooling and versatile installation options, ensuring optimal performance and durability.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WH2TY3617STANNJ

Technical Specifications

• Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow
• Cooling Capacity: 36000 Btu/hr
• Fuse Rating: 15 A
• Liquid Line Size: 3/8 in
• Material: Steel
• Motor Type: Constant Torque
• Number of Speeds: 4
• Number of Stages: 2
• Refrigerant Type: R-454B
• Rotational Speed: 300 to 1100 rpm
• Series: WH2TY Series
• Suction Line Size: 3/4 in
• CFM Rating: 1200 cfm
• Voltage Rating: 208-240 V
• Amperage Rating: 3 A
• Wattage: 373 W
• HP Rating: 1/2 hp
• Frequency Rating: 60 Hz
• Phase: 1 ph
• A2L Compatible: Yes
• Power Source: Electric
• Tonnage: 3 Ton
• UL Listed: Yes
• Brand: WeatherKing
• Type: Multi-Position
• Electric Heat (kW): Field Installed
• Capacity: 34200
• SEER2: 16
