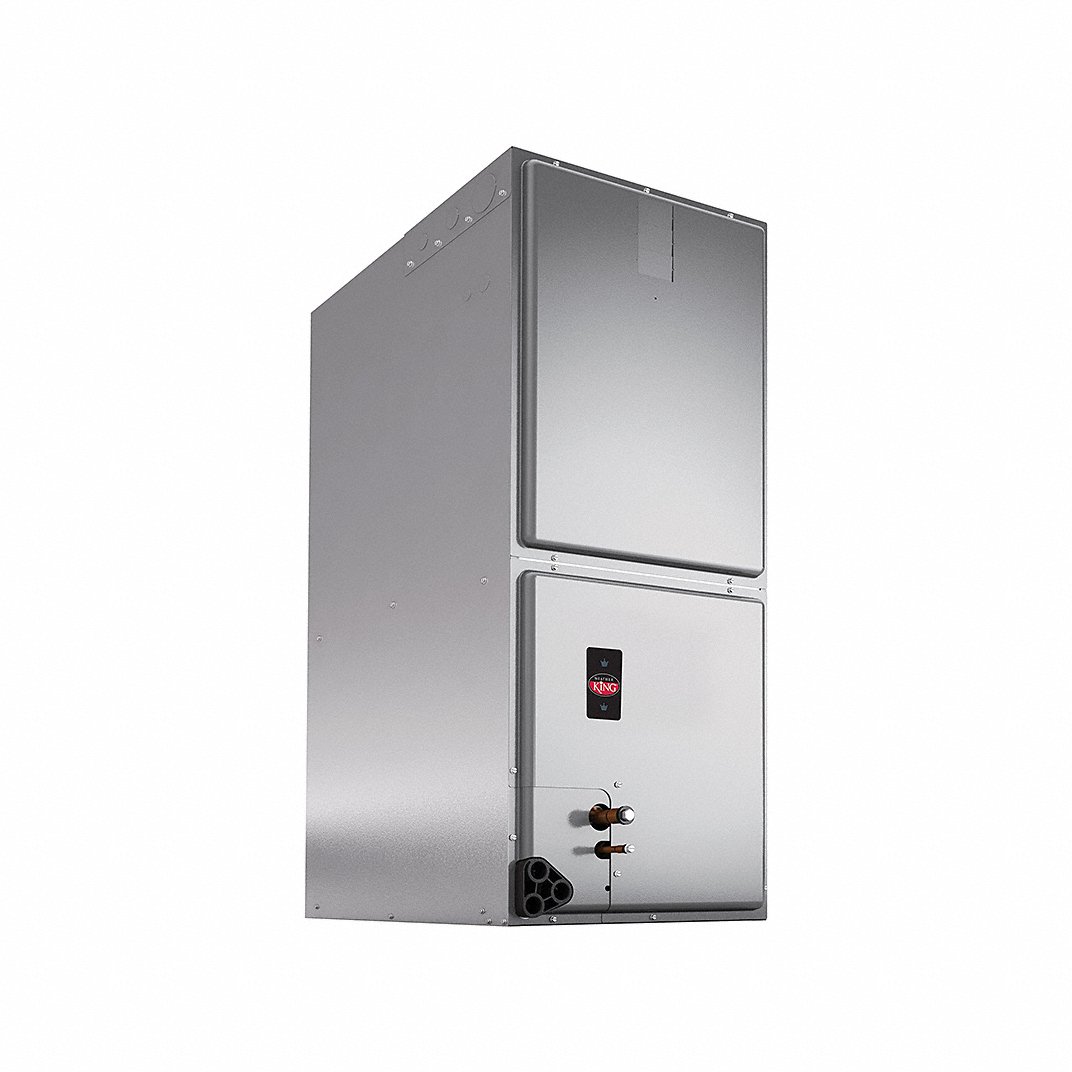

Weatherking WH2TY2417STANNJ Multi-Purpose Air Handler 249 W 1.5-2.0 Ton

Product Description

The WeatherKing WH2TY2417STANNJ multi-purpose air handler from the WH2TY series features a 24000 BTU/hr cooling capacity. Operating at 208-240 V, 3 A, and 249 W at 60 Hz, this 1 ph unit has a rotational speed of 300 to 1100 rpm. It supports downflow, horizontal left, horizontal right, and upflow configurations and uses R-454B refrigerant.

• Quiet operation due to cabinet construction with 1.0 inch of foil faced insulation.
• Aluminum indoor coil design with aluminum fins bonded to internally grooved aluminum tubing for corrosion resistance.
• Versatile 4-way convertible compact design for upflow, downflow, horizontal left, and horizontal right applications.

Product Highlights

This air handler features a rugged steel cabinet, field-installed auxiliary heater kits, and less than 2% cabinet air leakage when tested per ASHRAE Standard 193.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WH2TY2417STANNJ

Technical Specifications

• Configuration: Downflow, Horizontal Left, Horizontal Right, Upflow
• Cooling Capacity: 24000 Btu/hr
• Fuse Rating: 15 A
• Liquid Line Size: 3/8 in
• Material: Steel
• Motor Type: Constant Torque
• Number of Speeds: 4
• Number of Stages: 2
• Refrigerant Type: R-454B
• Rotational Speed: 300 to 1100 rpm
• Series: WH2TY Series
• Suction Line Size: 3/4 in
• CFM Rating: 800 cfm
• Voltage Rating: 208-240 V
• Amperage Rating: 3 A
• Wattage: 249 W
• HP Rating: 1/3 hp
• Frequency Rating: 60 Hz
• Phase: 1 ph
• A2L Compatible: Yes
• Blower Type: 5 Speed
• Coil Type: N
• Communicating: Non-Communicating
• Power Source: Electric
• Refrigerant: R-454B
• Stages: Two Stage
• Tonnage: 2 Ton
• UL Listed: Yes
• Volts: 208/240V
• Fan Speeds: 5
• Horsepower: 1/3 hp
• MBH: 24
• Max CFM: 900
