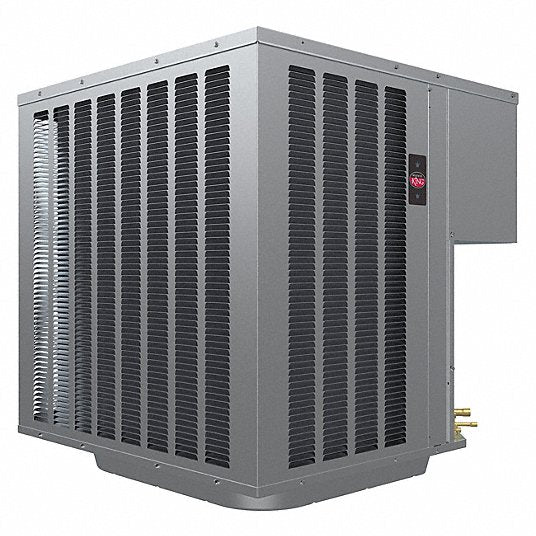

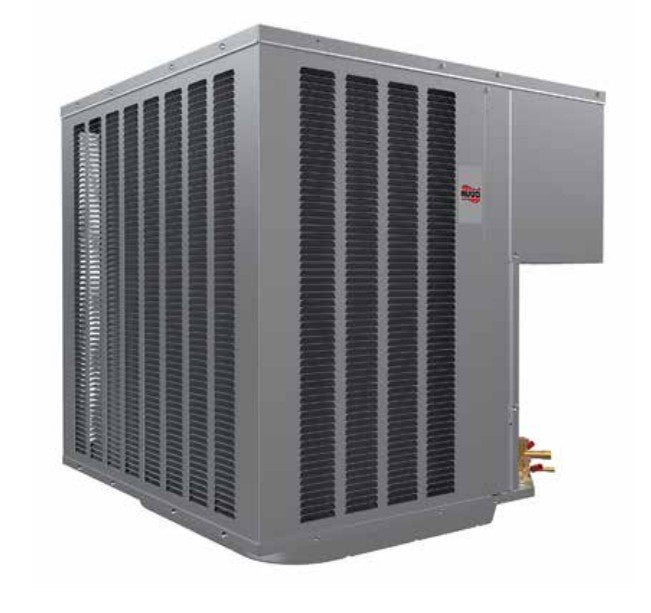

Weatherking WA14AY60AJ1NA R454B Condenser 60000 BTU/HR

Product Description

The WeatherKing WA14AY60AJ1NA R454B condenser features a 5-ton capacity and operates at 208-230/1/60 voltage. Equipped with a scroll compressor, it provides 60,000 BTU/HR cooling. The condenser is non-communicating and has a maximum overcurrent protection of 50 amps. Its design includes a 3/8 inch liquid line O.D. and a 7/8 inch suction line O.D.

• Features a fully louvered steel cabinet for protection against yard hazards and weather corrosion.
• Optimized 7mm coil design improves airflow, heat transfer, and energy consumption.
• Includes an easily accessible control box for ease of installation and serviceability.

Product Highlights

This condenser is designed for cooling only, reducing indoor air temperatures and humidity in warmer months.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WA14AY60AJ1NA
• Country of Origin: USA

Technical Specifications

• Application: Condenser SEER2 14+
• Tonnage: 5
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Refrigerant Type: R454B
• Compressor Type: Scroll
• Maximum overcurrent protection (amps): 50
• Communication: Non-Communicating
• Capacity BTU/HR: 60,000
• STANDARD RATING (DBA): 76
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 7/8 in
• Length (inches): 35.43
• Width (inches): 35.43
• Height (inches): 45.17
• Airflow: 4,169 cfm
• Compressor Technology: Fixed Output (Standard)
• Maximum Cooling Capacity: 60,000 BtuH
• For Line Length - Minimum: 15 ft
• For Line Length - Maximum: 250 ft
• Frequency: 60 Hz
• Operation Mode: Cooling Only
• Phase: Single
• Power Source: Hardwired
• Seasonal Energy Efficiency Ratio (SEER) Rating: 14.7
• Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 14.3/13.8
• Standards: EPA
• Voltage: 208/230V AC
• Refrigerant: R454B
• Nominal Capacity kW: 17.58 kW
• Nominal Capacity TR: 5 TR
• Refrigerant Furnished oz.: 192
• Sound Level: 76 dB
• Number of Phases: 1
• Minimum Circuit Ampacity: 31 A
• Compressor - Rated Load Amps: 24 A
• Compressor - Locked Rotor Amps: 157 A
• Condenser Fan Motor - Full Load Amps: 1.00 A
• Condenser Fan Motor - Locked Rotor Amps: 2.6 A
• Net Face Area - Outer Coil: 27.9 ft²
• Net Face Area - Inner Coil: 27.1 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 2
• Fins per Inch: 24
• Outdoor Fan Diameter: 26 in
• Number of Blades: 3
• Motor HP: 1/5 hp
• CFM: 4169 ft³/min
• RPM: 850
• Watts: 245 W
• Total Capacity: 56000 Btu/h
• Total Capacity kW: 16.4 kW
• Net Sensible Capacity: 42900 Btu/h
• Net Sensible Capacity kW: 12.6 kW
• Net Latent Capacity: 13100 Btu/h
• Net Latent Capacity kW: 3.8 kW
• SEER2: 13.8
• EER2: 11.7
• Indoor CFM: 1575 ft³/min
• Indoor CFM L/s: 743.3 L/s
