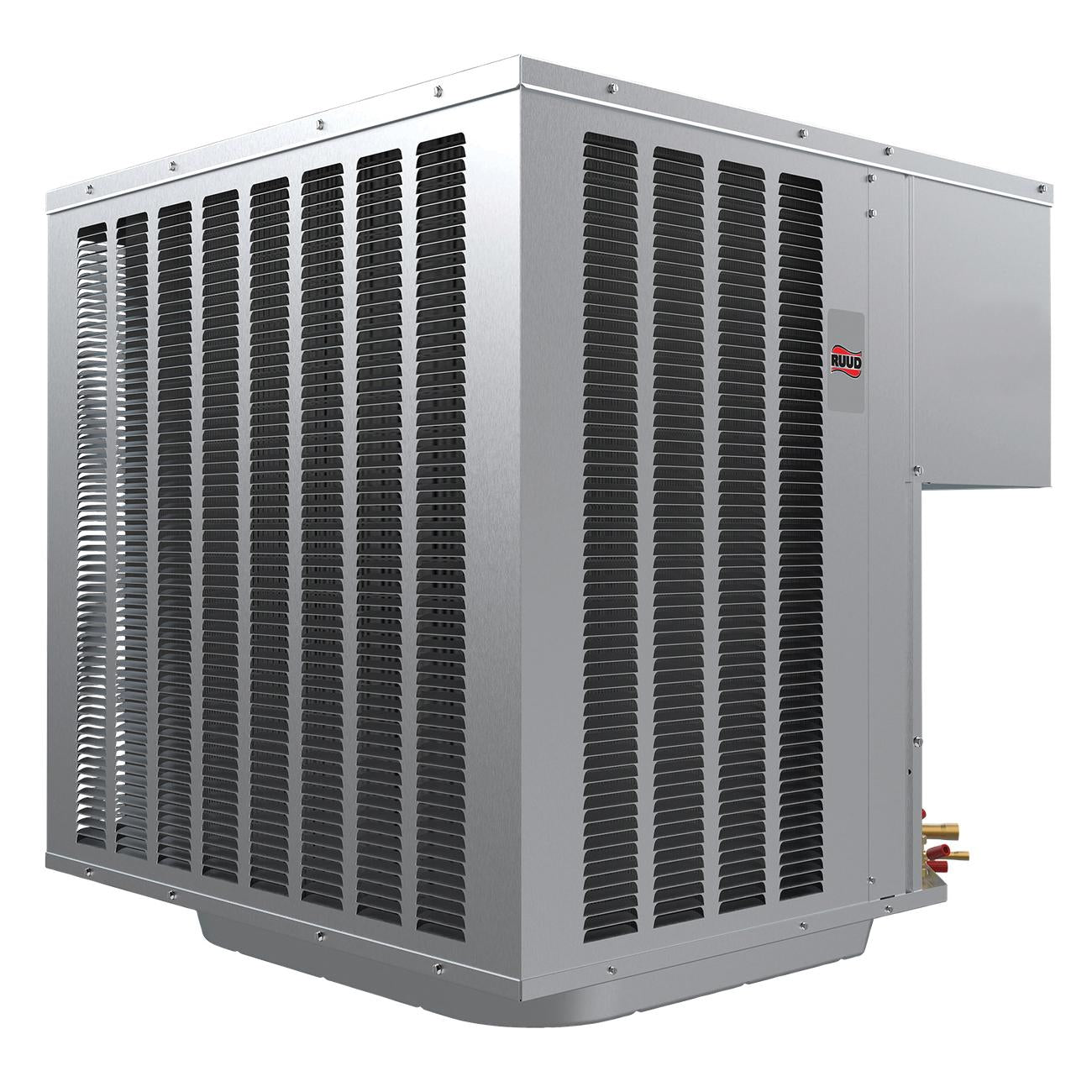

Weatherking WA14AY42AJ1NA R454B Condenser 3.5 ton

Product Description

The WeatherKing WA14AY42AJ1NA R454B Condenser features 3.5 tonnage and operates on 208-230/1/60 voltage. It uses R454B refrigerant and a scroll compressor. The condenser has a 42,000 BTU/HR capacity and a 73 DBA standard rating. Designed with a 3/8 liquid line O.D. and a 7/8 suction line O.D.

• Features a fully louvered steel cabinet for protection against weather and yard hazards.
• Optimized 7mm coil design improves airflow and heat transfer.
• Easily accessible control box simplifies installation and service.

Product Highlights

Durable condenser with optimized coil design and easy access control box.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WA14AY42AJ1NA
• Country of Origin: USA

Technical Specifications

• Application: Condenser SEER2 14+
• Tonnage: 3.5 Ton
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Refrigerant Type: R454B
• Compressor Type: Scroll
• Maximum overcurrent protection (amps): 30
• Communication: Non-Communicating
• Capacity BTU/HR: 42,000
• STANDARD RATING (DBA): 73 dB
• Liquid Line O.D. ��� in.: 3/8
• Suction Line O.D. ��� in.: 7/8
• Length (inches): 33.66
• Width (inches): 33.66
• Height (inches): 35.17
• CFM Rating: 3431 cfm
• Coil Rating: 2-Row
• Cooling Capacity: 40000 Btu/hr
• EER Rating: 11.7
• Fins per Inch: 24 FPI
• Frequency Rating: 60 Hz
• Fuse Rating: 30 A
• Nominal Capacity: 3.5 ton
• Number of Stages: 1
• Rotational Speed: 850 rpm
• SEER Rating: 14.3
• Series: WA14AY
• Sound Level: 73 dB
• Wattage: 225 W
• Amperage Rating: 20 A
• BTU Rating: 42000 Btu/hr
• HP Rating: 1/5 hp
• Phase: 1 ph
• Material: Steel
• A2L Compatible: Yes
• BTU: 42000
• BTU Cooling Rating: 40000 Btu/h
• CFM: 1300
• Compressor Stages: Single Stage
• Decibel Rating (dB): 73 dB
• Horsepower: 1/5 hp
• Liquid Line (OD): 3/8
• MBH: 42
• Power Source: Electric
• RPM: 850
• Refrigerant: R-454B
• SEER2: 14.3
• SEER2 Range: 14.3 - 15.1
• Sound Blanket: No
• Suction Line (OD): 7/8
• UL Listed: Yes
• Volts: 208/230V
• Watts: 225
• Type: Condenser
• ABRPN: WA14AY42AJ1NA
• Brand: Weatherking
• Product Status: Nonstock
